Logitech UE MegaBoom Motherboard Replacement

Geschrieben von: Oscar Ambriz
  • Kommentare: 4
Logitech UE MegaBoom Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

1 - 2 Stunden

Einleitung

This guide will assist you with the removal and replacement of the Logitech UE Megaboom motherboard.

  1. UiircJt1WBTdn1te
    UiircJt1WBTdn1te
    HjmiqOjPE2hDG5KW
    TNgWtOeLCTwoHOvF

    • Locate the ends of the speaker.

    • Put a plastic opening tool in-between the rubber end and the mesh.

    • Apply a upward force in order to pry open the end.

    • Apply this procedure to the other side as well.

    • Will take force.

    • Using metal tools may permanently mar your device.

    Pry all the way around with the tool as there are “clips” that hold the cap in place all around beneath the cap. Avoid trying to “pull the lid open” from the opening of a half opened lid.

    Jamin Hu -

    Stop! Before you proceed, notice the comments at the end of the guide. You don't have to take apart both sides or remove the mesh fabric. Remove just the bottom cap (with the aux/charge plug).

    Then carefully remove the glue securing the circuit board on the sides and gently pull the board out to reveal the battery under it.

    Caleb Kelsay -

  2. duXJEwMuaCDrDHCi
    duXJEwMuaCDrDHCi
    bo33IwOCKjCqTeNH
    OVxO6XCAPX5MBPqB

    • Take the Jimmy and pry up the rubber strip that has the volume buttons on it.

    • You will hear clicks as it pries up, don't worry.

    • Remove all the rubber you pried off.

  3. NyMsDcfJm4prdCCF
    NyMsDcfJm4prdCCF
    IAvCa1YQJ4eDlgoh

    • Use tweezers to lift end of plastic retainer on edge of mesh out of its channel.

    • Work the plastic retainer out of the channel all the way around the speaker.

    • Be gentle, it is easy to damage the fabric.

    • Repeat for other side.

    No need to remove fabric or remove both sides.

    Gavin McGlynn -

  4. cJlTTpEFTvCAJGBT

    • Pull on white strip to remove battery.

    This skipped the step of pulling out the circuit card on the battery charge/aux-in side. Pry up below the gasket next to the large capacitors on both sides.

    Joel Magnuson -

    • Remove inner plastic gasket on circuit board.

    • Remove 2nd plastic gasket around outer circuit board edge, under rubber gasket.

    • Gently pry circuit board up out of recess.

  7. 3NF1Y6sXFFNMQvYr
    3NF1Y6sXFFNMQvYr
    JiXKLQVTeMwiyFiw

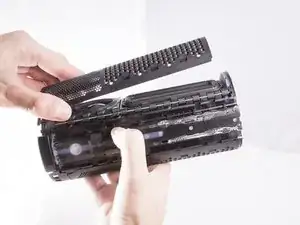

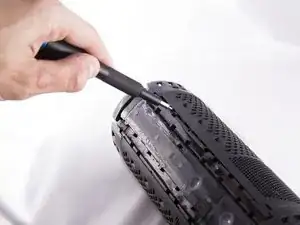

    • Insert a opening tool between the grating and the body of the speaker

    • Pry up allowing the tabs to pop out of place.

    • There will be an audible sound when the tabs have begun to pop out of place.

    • Apply the same procedure to the grating covering the second speaker.

  8. rKwgefX6RquNYo6H
    rKwgefX6RquNYo6H
    q3iAuO5afqMviEP1

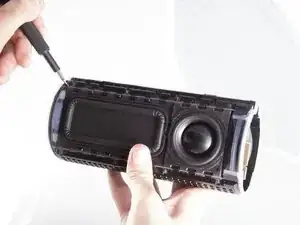

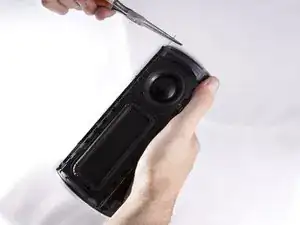

    • Use a opening tool to push the thin metal rod located on the side of the speaker out.

    • Using needle nose pliers grasp the rod and pull the rod out of the speaker until fully removed.

    • Remove the remaining three rods.

    • One is located on the same side and two are located on the other speaker.

  9. XT1ej1tOIlMVpDZU
    XT1ej1tOIlMVpDZU
    An2cUpE3RLvnOijj
    3L4NfCuYXxObUD5x

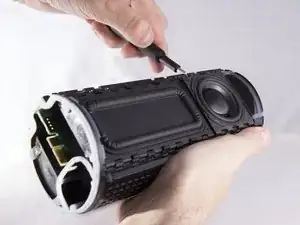

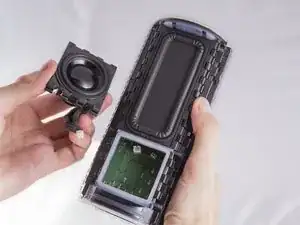

    • Insert a opening tool between the speaker and the base

    • Pry up allowing the speaker tabs to pop out of place

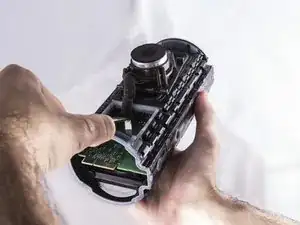

    • Find and disconnect the wire from the motherboard by pulling in an upward motion.

    • Apply the same procedure to the second speaker.

  10. FZubZUQCx2yL5qSP

    • Grasp the mother board by the wider edge and pull towards yourself.

    • This should not require much force.

Abschluss

To reassemble your device, follow these instructions in reverse order.
