Lorex LW2742 LCD Display Replacement

Geschrieben von: Alex Kusmierz
  • Kommentare: 4
Lorex LW2742 LCD Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

Is your receiver screen cracked, broken, or pixelated? Try replacing the screen to solve this problem.

  1. pbHH4VxvHUhCLEVM
    pbHH4VxvHUhCLEVM
    W3HxghnDJ6VPyjE1
    YKU12g3SXB1oLy3Z

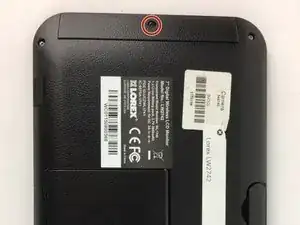

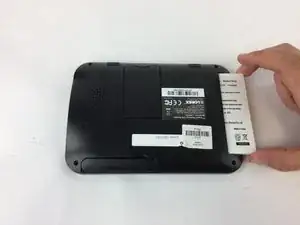

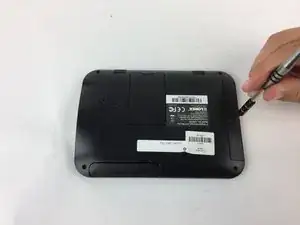

    • Remove the battery cover on the back of the LCD monitor by unscrewing one 5mm Phillips #1 screw.

    • Slide the battery out of the housing. Lightly tap the opposite end of the monitor if the battery does not come right out.

  2. GMjWW4Sj54CKP1BF

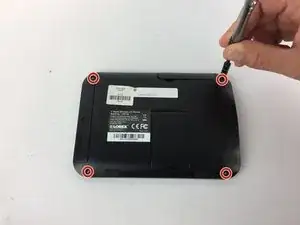

    • Remove the four 6mm Phillips #1 screws on the back of the LCD monitor.

  3. mZNTvNrD4lV1tTPs
    mZNTvNrD4lV1tTPs
    sNu3iIeNHY253pSc

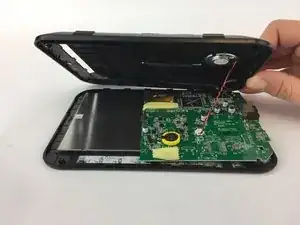

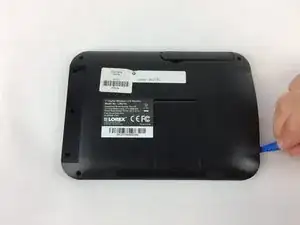

    • Using a plastic opening tool, gently separate the back panel from the front panel, working the tool around the panel to disconnect it.

    • Carefully remove the back panel

    • The speaker wire is connected to the motherboard so DO NOT rip back panel away from the monitor.

  4. LtlO1PFcdTFRNnS4
    LtlO1PFcdTFRNnS4
    BnNhAoCGT1boHnxM
    J1XORU5okm3WY3Wd

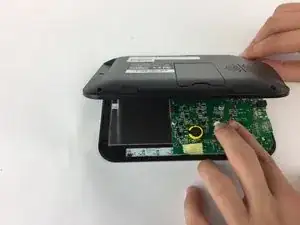

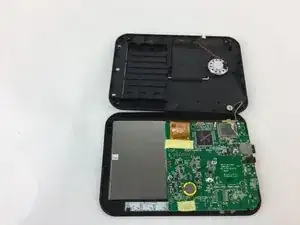

    • Locate the motherboard and carefully pull the red and black speaker wires out of their harness.

  5. lkBahTNsDFOWLvJv

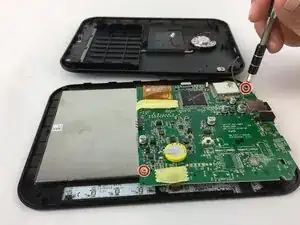

    • Remove the two 5mm Phillips #1 screws that are holding the motherboard in place.

  6. f1LB1VGqAXtNrcRQ
    f1LB1VGqAXtNrcRQ
    l1KSWuLVYRXljIQ6

    • Peel away the yellow tape that is covering the large harness.

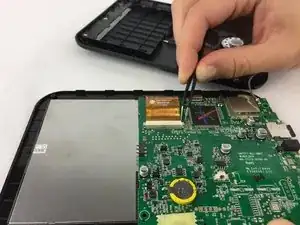

    • Use needle-nosed tweezers to pull out the black tabs that are holding the film in the harness and gently pull the film out of the harness.

  7. lLr3NVHloP6NHjiQ
    lLr3NVHloP6NHjiQ
    tjhAKkUPOmYTohMy

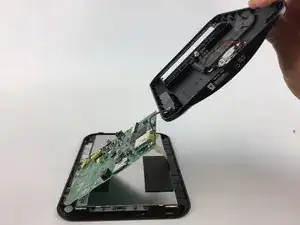

    • Flip the back panel and motherboard over to reveal the back of the LCD monitor

  8. 3MBZZFyFeEP1F2Yx
    3MBZZFyFeEP1F2Yx
    UZjDOdPqQKaUUehO

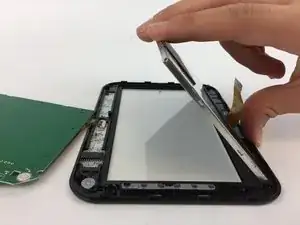

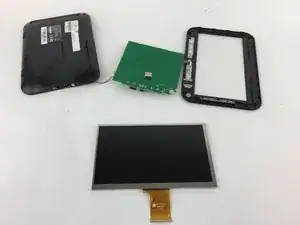

    • The LCD monitor will easily come out of the front casing of the monitor.

Abschluss

To reassemble your device, follow these instructions in reverse order.
