Lorex LW2742 Microphone Replacement

Geschrieben von: Alex Kusmierz
  • Kommentare: 0
Lorex LW2742 Microphone Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

Are your video recording's lacking audio or experiencing audio distortion? Try replacing the microphone to solve this problem.

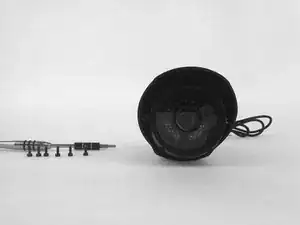

  1. kg6yyvNoDSYfYp4X
    kg6yyvNoDSYfYp4X
    DA32WxBbDKDDJ1xc

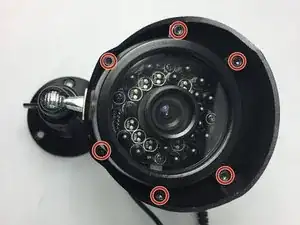

    • Remove the six 10mm Torx T10 screws on camera face.

  2. GWDUYKir1j4aFT23

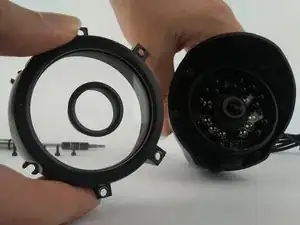

    • Remove the exterior lens cover.

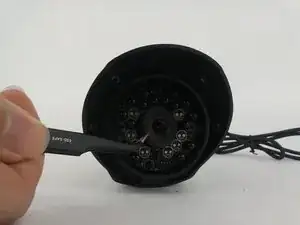

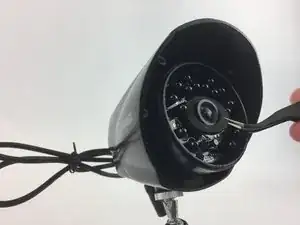

  3. xO1YtpbrBhh6WmvK
    xO1YtpbrBhh6WmvK
    O6RF6XLNXVoX1SIB
    pdC2b3hNBjVKMWpU

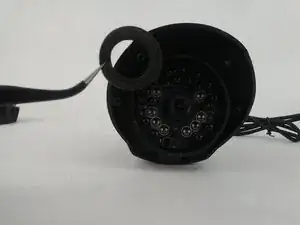

    • Remove the LED foam ring with tweezers.

    • Be aware, the electronic components of the LED board may be compromised if you use your fingers instead of tweezers for this step.

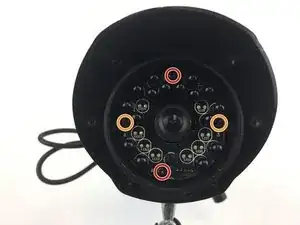

  4. BnHlqYSpmtyfFj5u

    • Remove the two 5mm Phillips #1 screws.

    • Remove the two 8mm Phillips #0 screws.

    • When reassembling, tighten the left and right 8mm screws first. Followed by the top and bottom 5mm screws.

  5. lQudvyE2SDMrxPe5

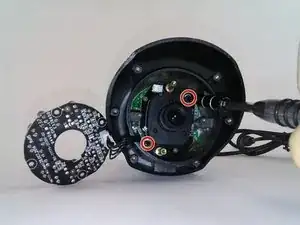

    • Remove the two 5mm Phillips #1 screws.

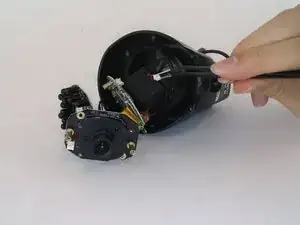

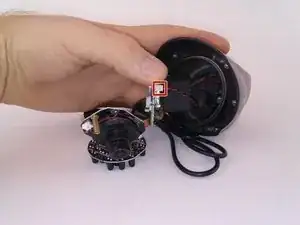

  6. rwjuP5RkBWDMIVfC
    rwjuP5RkBWDMIVfC
    e3fkeelDnNh446m2
    HGALG4HvrKwWIof6

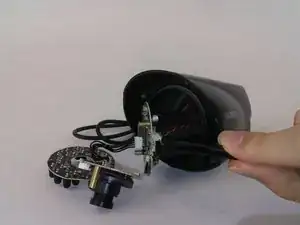

    • Use tweezers to disconnect the microphone wires from the internal components of camera.

  7. GLfkme2NfVfRSj1C
    GLfkme2NfVfRSj1C
    HPXQecprvEefkTEZ
    rUYtQNgRug1fgmZB

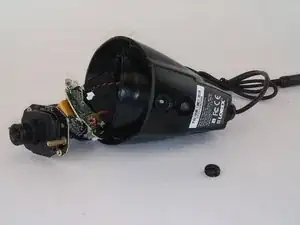

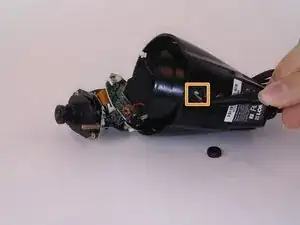

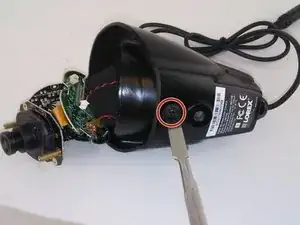

    • Remove the 4mm Flathead #4 screw on the bottom of the camera.

    • Remove the weatherproof gasket around the microphone with tweezers.

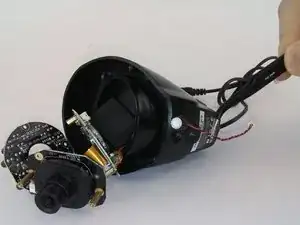

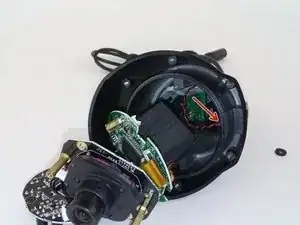

  8. MSYdDWPgLOknaKJZ
    MSYdDWPgLOknaKJZ
    gSqq4FfFMQkkoACh
    BHvPfKFdRFOLINvg

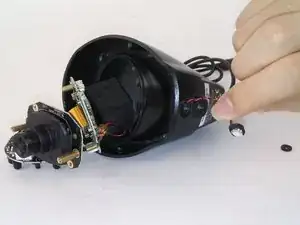

    • Remove the microphone.

    • Push the microphone from the inside out for easier removal.

Abschluss

To reassemble your device, follow these instructions in reverse order.
