Lorex LW2742 Night Vision IR LEDs Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

Is your night vision too dark to view, or not working at all? Replacing your camera's Night Vision IR LEDs might solve these problems.

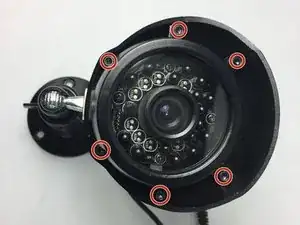

  1. bOtWGKCZKPOdVeSv
    bOtWGKCZKPOdVeSv

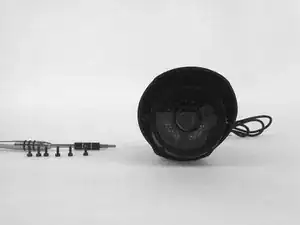

    METkCjTL6HAAfu4O

    • Remove the six 10mm Torx T10 screws on the camera face.

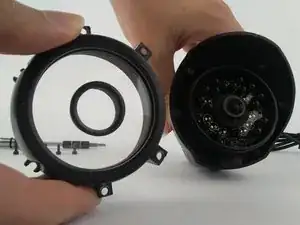

  2. CAuYO4sRw4rFo4rh

    • Remove the exterior lens cover.

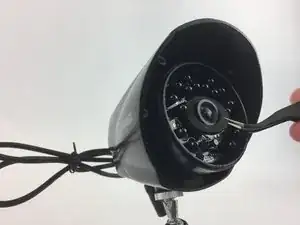

  3. IdpxrlkNOTKmSTJ4
    IdpxrlkNOTKmSTJ4

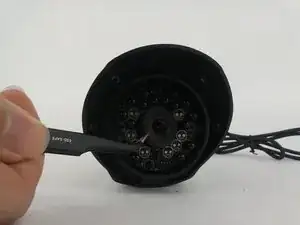

    tgtAlwMEpFMXGPrQ

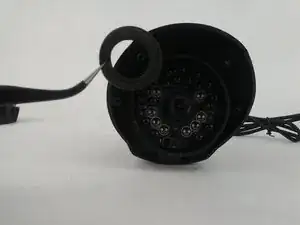

    FSWAJsFs1Zk6RNOi

    • Remove the LED foam ring with tweezers.

    • Be aware, the electronic components of the LED board may be compromised if you use your fingers instead of tweezers for this step.

  4. woBdhFgXnfns1Hnm
    woBdhFgXnfns1Hnm

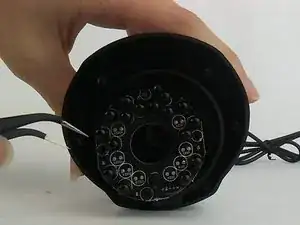

    mtdP6RbmUOWLEXPP

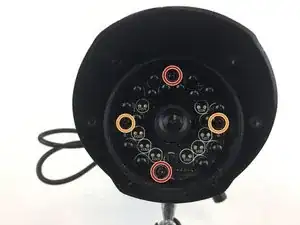

    • Remove the two 5mm Phillips #1 screws.

    • Remove the two 8mm Phillips #0 screws.

    • When reassembling, tighten the top and bottom 5mm screws first, followed by the left and right 8mm screws.

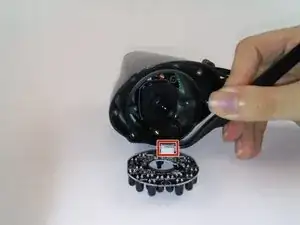

  5. UFlfDml6o3VaWItE
    UFlfDml6o3VaWItE
    1E3Or3FwoSleNRsU

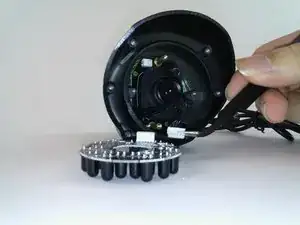

    • Use tweezers to unclip the cables to the LED board

Abschluss

To reassemble your device, follow these instructions in reverse order.
