The lens of the Lorex MC 6950 is to be replaced. This will require taking the camera apart and removing the circuit board from it's LED containment. To do this, a metal spudger and a #J0 screwdriver will be needed.
Werkzeuge
Ersatzteile
-
-

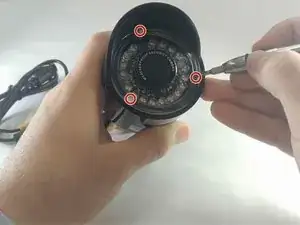

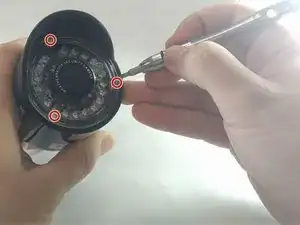

To remove the circuit board, you must begin by removing the three screw caps and the 15mm JIS 0 screws associated with them located on the plastic containment shell that the camera is in.
-
-
-

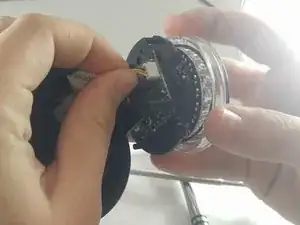

Next, the camera must be removed. A metal spudger will be useful to pry this out as it is sealed inside the outer containment shell.
-
Once the camera is removed, remove the wires from the outer containment shell.
-
Be careful. The metal spudger could damage the camera if not handled with care.
-
-
-

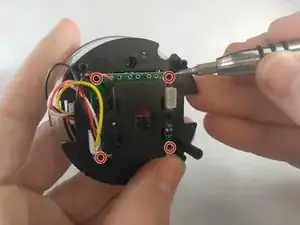

With the camera in hand, the circuit board must be separated from the LED containment shell. There is a 5mm JIS 0 screw at every corner of the circuit board.
-

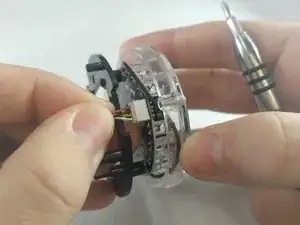

The wires attaching the circuit board to the shell should be removed as well.
-
-
-

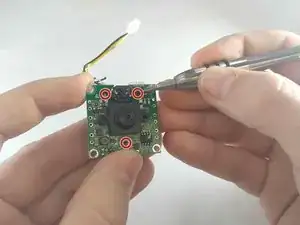

Now the motor, lens, and wires must be removed from the circuit board. There are three 5mm JIS 0 screws located on the lens side of the circuit board to remove the motor housing.
-
-
-

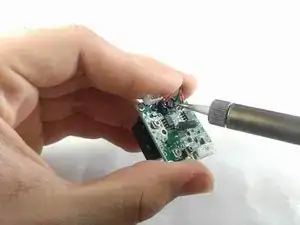

The lens has two 5 mm JIS 0 screws located under the motor's previous location.
-

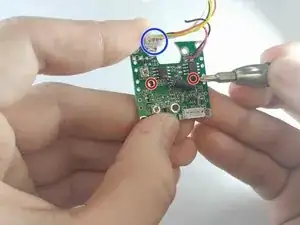

As a final step, the wires that connected the board to the containment shell will need to be removed from the board.
-
To reassemble your device, follow these instructions in reverse order.
