Einleitung
This guide will show how to lubricate the volume slider after you have opened up the base of the phone. Your volume slider will operate smooth after completing this guide.
Werkzeuge
Ersatzteile
-
-
Using a plastic opening tool, remove the phone cord from the phone jack at the base of the headset.
-
-
-
Remove the 7.5mm screw.
-
Remove the screw cap.
-
Pull up the phone cord to remove it from the base.
-
-
-
Remove the battery compartment door (located on the bottom of the radio) by applying thumb pressure to the area indicated on the battery door and then sliding the door off the cabinet.
-
Remove the battery from the phone.
-
-
-
Locate the volume dial on the right side of the telephone.
-
Remove the volume dial by gently grasping the dial and pulling it away from the base.
-
-
-
Remove the three 12mm screws with the Phillips #1 screwdriver.
-
Remove the three 18mm screws with the Phillips #1 screwdriver.
-
-
-
Pry off the base shell using a plastic opener tool.
-
Set the shell aside and you now have access to the internal components of the General Electric Telephone 2-9710A.
-
-
-

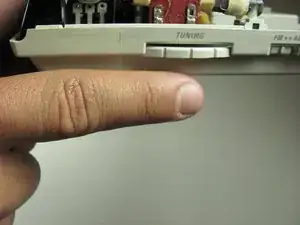

Turn the tuning slider counter clockwise all they way.
-

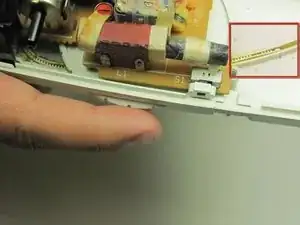

Apply lubricant to slider rail
-
Turn the tuning slider back and forth to distribute lubricant
-
To reassemble your device, follow these instructions in reverse order.
