If the 3D printer is not responding when connected to a computer or has issues powering up, this may be the cause of faulty ports on the motherboard. The ports are used to carry power and data to the printer. Occasionally a port can be damaged by forced and improper plugging in of cables; this guide will assist you in opening the unit to reveal the control motherboard and instruct you in replacing both ports.

  1. gCohUlGtJwYGMZif
    gCohUlGtJwYGMZif
    U3oODKOVLcp4FGJ1
    LlK2XJYl11qY6Jyc

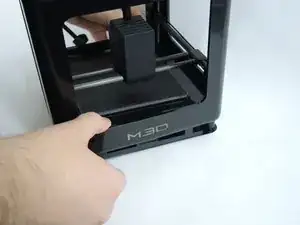

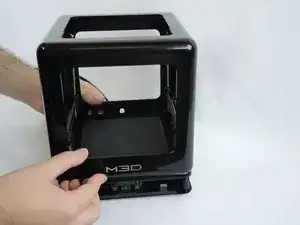

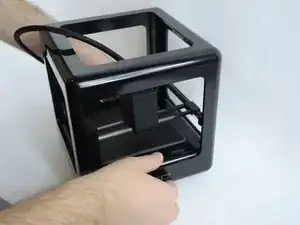

    • Place pressure on the central print bed and simultaneously pull up on the outer perimeter of the 3D printer. The cube shaped enclosure will lift up.

  2. K45MKLEVLkHZRKHZ
    K45MKLEVLkHZRKHZ
    5hHVUSRW1TgLNbJH
    ThgcnAI4YlUKH4oo

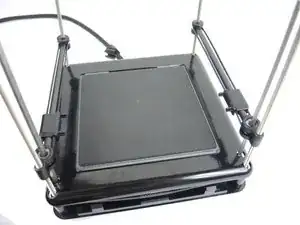

    • Remove the print bed cover and locate the four screws holding the print bed to the base of the unit. Remove the four 9.5 mm screws using the 3.5 Hex head from the bit kit.

  3. YBiZkAZQWCrSIHQD
    YBiZkAZQWCrSIHQD
    CBmwnW4i3Sg25EJX

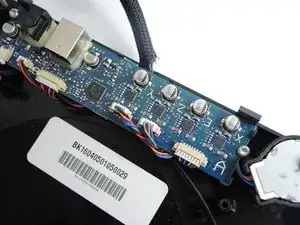

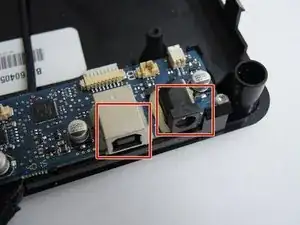

    • Lifting the print bed reveals the motherboard that controls the unit. This is the hardware that allows the printer to connect to the computer. The port on the left is the data and the port on the right is the power input.

  4. 4flIxLQgR4SiLMjO
    4flIxLQgR4SiLMjO
    YDXDaonApcMtCWMF
    Ra4i3ELOrfdUcmDI

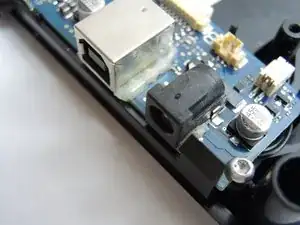

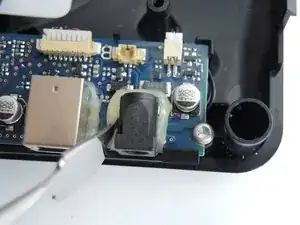

    • The ports are primarily soldered on to the board but are additionally secured using glue. Use the sharp metal spudger tool to gently pry apart the glue surrounding the ports.

  5. nOWoo51hA4FMy4yR
    nOWoo51hA4FMy4yR
    EEDYiHTwVpFEBKIG

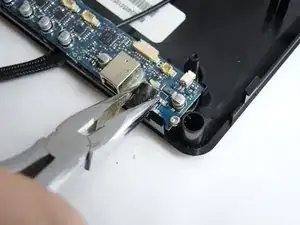

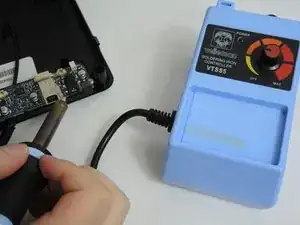

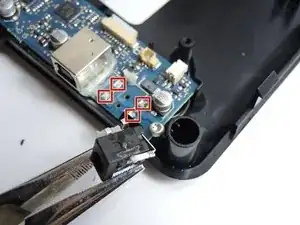

    • To remove the charging port grasp the port with a pair of pliers and use a soldering iron to desolder the joints at the red marks while carefully pulling away with the pliers.

  6. 5oSsnwewdnFwAAh5
    5oSsnwewdnFwAAh5
    Gcvy3LP1S5lVToul

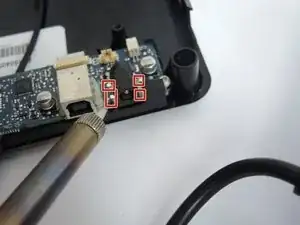

    • To replace the power port, match the four contact points on the board to the new port and carefully solder the components together.

  7. KZWB6K1IFSoJWE2E
    KZWB6K1IFSoJWE2E
    ubBsWIWtlS11Hs1X

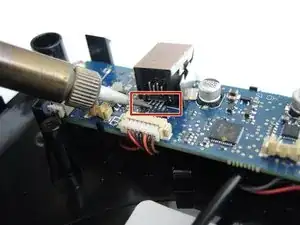

    • To replace the USB data port, follow the same procedure as Step 5. The contact pins for the data port are on the back. The red marker indicates the four contact pins that must be matched up and carefully soldered on.

Abschluss

To reassemble your device, follow these instructions in reverse order.
