MAGNAVOX MDV2300 Motherboard Replacement

Geschrieben von: Justin
  • Kommentare: 1
MAGNAVOX MDV2300 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 20 Minuten

Einleitung

To begin this guide please have with you all the required material and components. This guide should not take very long, depending on your skill level.

  1. 6gIcLGnPdDMIbcMC

    • Look the device over.

    • Make sure the device is unplugged from the wall.

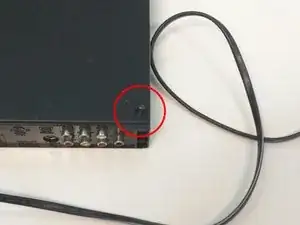

  2. YMYXoco4WKEO1JRK

    • Remove two screws on top panel.

    Screws are PZ3.0

    Brendon Clayton -

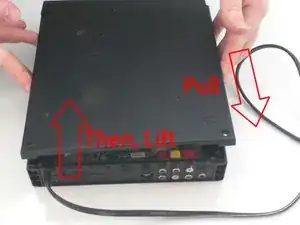

  3. FmAQhWPXRyQic5hc

    • Take top panel off of device.

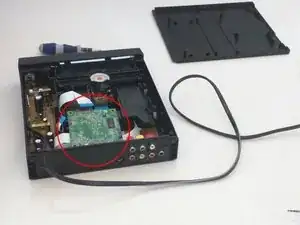

  4. cyAimIy6wGmIpmZS

    • Identify the motherboard.

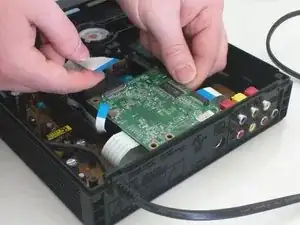

  5. LrHkbgCHETrHUxsY

    • Unplug wires from motherboard component. Do not be afraid to tug. The wires are strong and should not tear.

  6. UWP6vqAEElPKirMP

    • When installing motherboard back into device make sure wires are snug in their casings.

Abschluss

To reassemble your device, follow these instructions in reverse order.
