This guide will instruct on how to replace an old bathroom faucet with a new one. One may need to replace a faucet if the taps stop working, there is rust or chemical damage, or even to beautify the bathroom.

Before following this guide, ensure the replacement faucet is the right pick for the sink it is being placed in. The replacement faucet in this guide is a MOEN Adler 4-inch Centerset Single-Handle Low-Arc Bathroom Faucet. The faucet being replaced is an older model of the same kind. Be wary that the instructions for alternative faucets may differ slightly. However, most faucets have similar parts so this guide will still be helpful.

  1. Q4gaIACgFvXUjxIg
    • Turn the water shutoff valve underneath the sink downwards to stop the flow of water.

  2. NEWy4LtOZU2OkALa

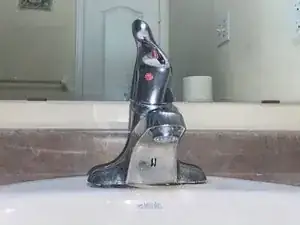

    • Turn the tap(s) on to release any pressure build-up in the pipes.

  3. EU5URywn1SoMHQvx
    EU5URywn1SoMHQvx
    G6Peo3GCdFnJwkPg
    imdWu1pZO1KkDeCK

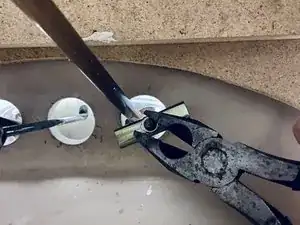

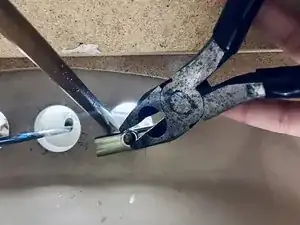

    • With pliers, unscrew the mounting nuts underneath the sink by turning them counterclockwise.

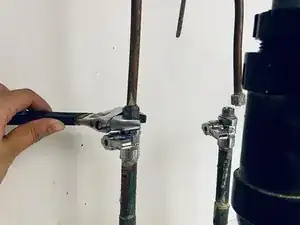

  4. A5LJhKPrPETXZliH
    A5LJhKPrPETXZliH
    y6OndEOitvKLgZrU
    IAPBDHQLOBZpo2cN

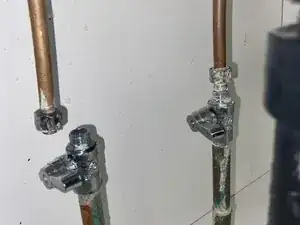

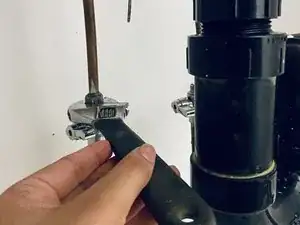

    • With an adjustable wrench, unscrew the bolts connecting the faucet pipes to the supply lines.

    • After unscrewing the bolts, the faucet pipes should easily come off.

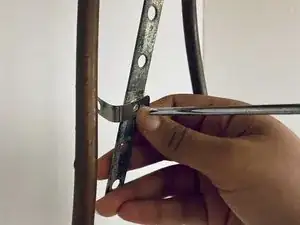

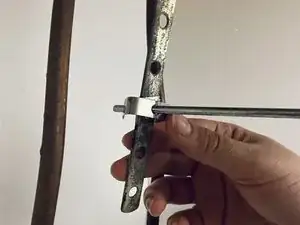

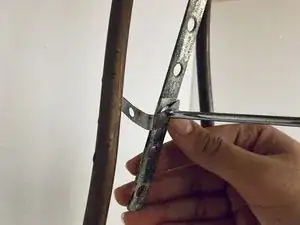

  5. ZXegp5qWsTvaUs6W
    ZXegp5qWsTvaUs6W
    LNHpTwIAdtfst1MF
    HGfHUQ2RbewqZhBh
    • Disconnect the lift rod for the drain plug by pushing it off the metal rod.

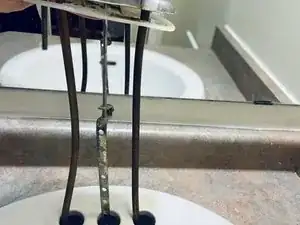

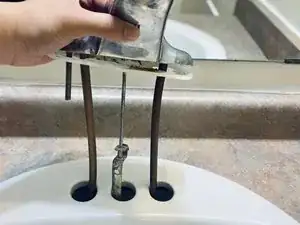

  6. gPSdNVN6HU2arrLj
    gPSdNVN6HU2arrLj
    eKE1VlqyGKLIMiJU
    nrsA3PJw5hIaJCPT
    • After everything is completely disconnected, pull the faucet out from the top.

  7. TiEKhp1hLXloHMeM
    TiEKhp1hLXloHMeM
    HdXoLKOSJIlgcRaf
    YFWDAoCBIRfGsTOl

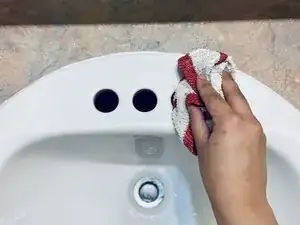

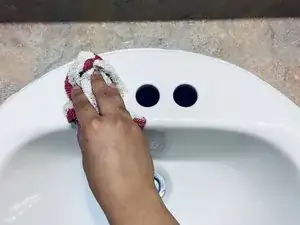

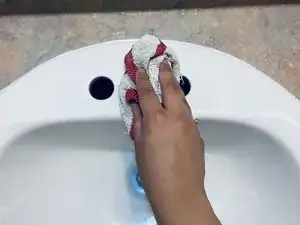

    • Clean the area in which the replacement faucet will be placed to ensure that there is a flat surface.

  8. yTSIH1TJNmp4uKp3
    yTSIH1TJNmp4uKp3
    ogsVxTbr2qiqNKud

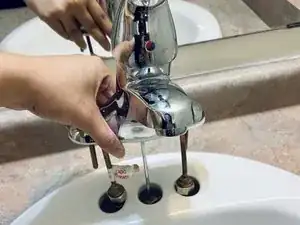

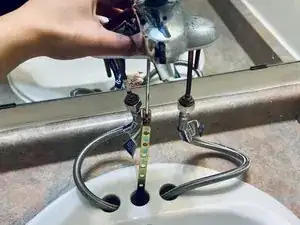

    • Insert the pipes of the replacement faucet through the sink holes.

    • Each pipe will correspond to each hole on the right and left.

  9. JbTF63DwnLgjrLXC
    JbTF63DwnLgjrLXC
    FoQOqPRwM4eCKRAX
    MrVZ4AmirdSWZBLD

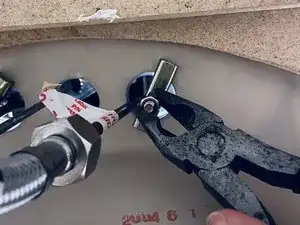

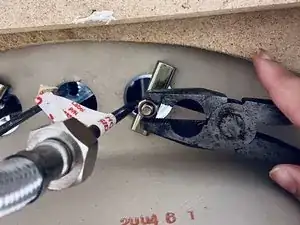

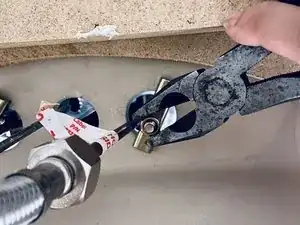

    • With pliers, tighten the mounting nuts underneath the sink in the same location they were removed from.

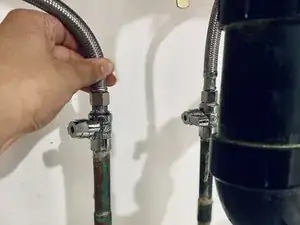

  10. sUO4H23t5vEYqY46
    sUO4H23t5vEYqY46
    Na1XQbmMXhoVB5ip
    LfIOqpqLG6mdYpmn

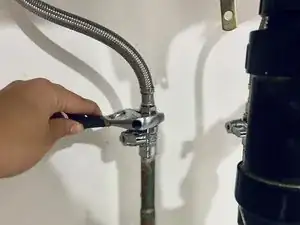

    • Reattach the faucet pipes to the supply lines and tighten the bolts with an adjustable wrench.

    • Tighten the left and the right pipe.

  11. gRSLnLNGEZaVMsxx
    gRSLnLNGEZaVMsxx
    6qVJiNqlxRCqeogo
    1VxbHPEi1dQHjNFt

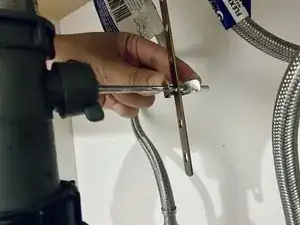

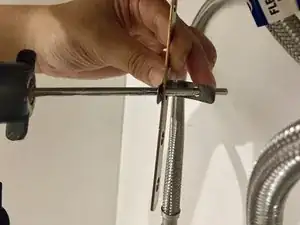

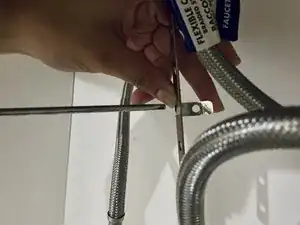

    • Reattach the lift rod for the drain plug by lining up the holes and pushing it through the metal rod.

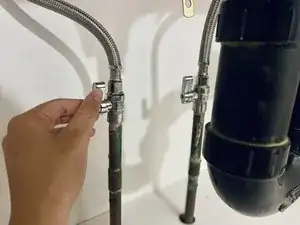

  12. uxD5JZpFMAZtVWhN
    uxD5JZpFMAZtVWhN
    KBwoyQXTEqH4nog3
    s6NWiJYyFKjnAEMZ

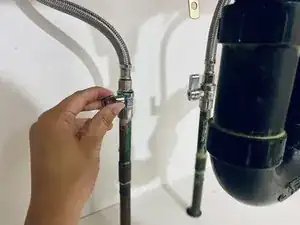

    • Turn the shutoff valve upwards to line it up with the pipe and resume the flow of water.

  13. Mw1FlBKxDhCTkjUH

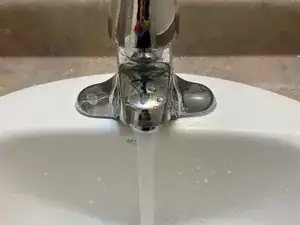

    • Turn on the tap and inspect for leakage. If any leakage does appear, refer to step 1 & 10 and make the pipe bolts tighter.

    • Otherwise, the replacement sink is completely installed.

Abschluss

To remove the replacement faucet, follow steps 1-6.
