MSI GE62 6QF Apache Pro Hard Drive Replacement

Geschrieben von: Justice Owens
  • Kommentare: 6
MSI GE62 6QF Apache Pro Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

Use this guide to remove the hard drive of your device.

  1. XKva4Guxtt2OwR1T

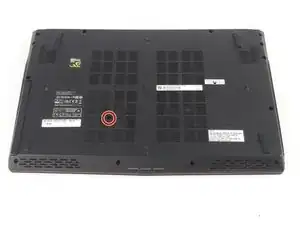

    • Use a Phillips screwdriver to remove the 5mm screw securing the optical drive to the bottom case.

  2. oCBRVJbISiqY46jY

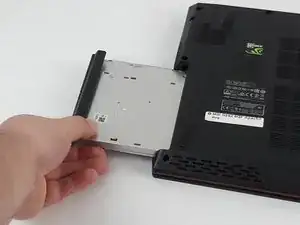

    • Slide Optical Drive out of the computer.

  3. ACEtSC6OXqM2KKLL

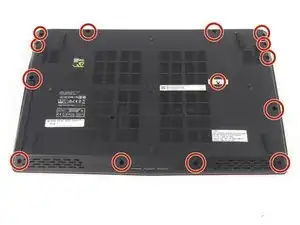

    • Use a Phillips screwdriver to remove the fourteen 5mm screws on the back of the laptop.

    • One of these screws is hidden under a sticker.

  4. 5WVAaQAuqMIfT2CK
    5WVAaQAuqMIfT2CK
    WB1H1npJgCBmS6XW
    BLJmu5RTASW55HeR

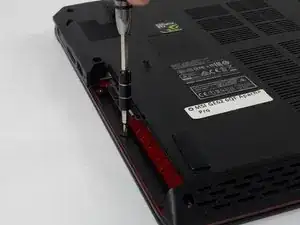

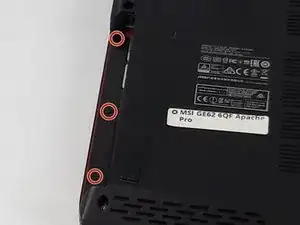

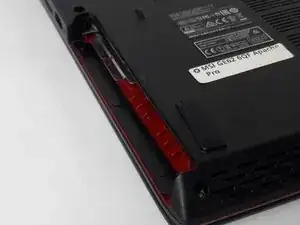

    • Remove the three PH #0 2mm screws that were hidden underneath the optical drive.

    These 2mm screws require a PH #00 screwdriver (vs PH #0 as stated by author).

    DVL -

  5. pCORhCJ6YlykcGHe
    pCORhCJ6YlykcGHe
    ZQNWYtV1NI1BWcc3

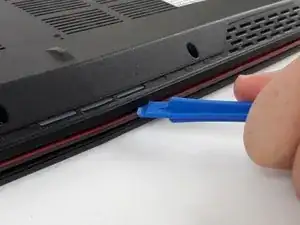

    • Use an opening tool to run along the seam of the case where the upper and bottom case meet.

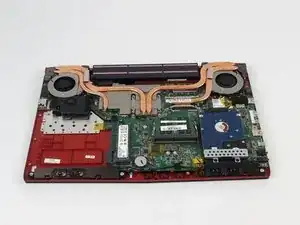

    • Pry the bottom case and remove from the upper part.

  6. mG3CkgrNGxrCoGkm
    mG3CkgrNGxrCoGkm
    cqlnockYR6FU3IPG
    Lj6PrJpFUthlnAAB

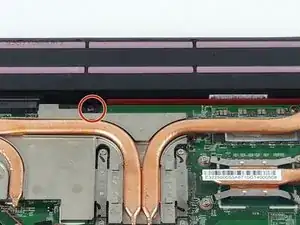

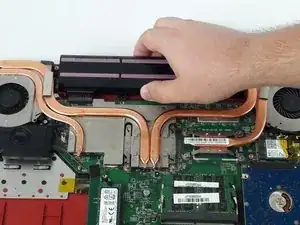

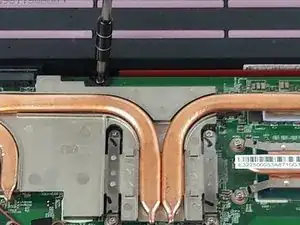

    • Remove the single PH #0 5mm screw holding the battery pack in place.

    • Remove the battery by sliding it away from the computer.

  7. uIXaONHFKejrWJTI
    uIXaONHFKejrWJTI
    ockMvNFoUUrLvtMr
    em2aR3xGKpBsoNJR

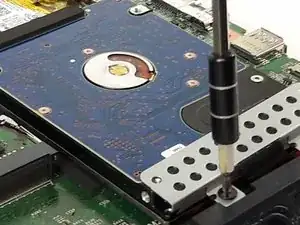

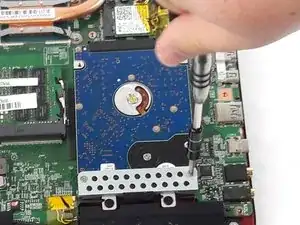

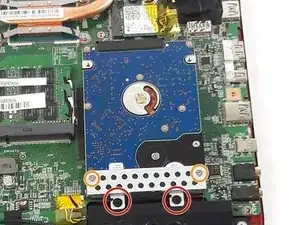

    • Unscrew the two black PH #0 2mm screws holding the lower part the hard drive plate

    • Unscrew the two PH #0 4mm screws holding the upper part of the hard drive plate

    The 2mm scrrws holding the lower tabs of the HDD plate require a PH00 screwdriver (vs PH0 as stated by author).

    DVL -

  8. tdtl4JgPeeno6PTl
    tdtl4JgPeeno6PTl
    gRZWwU3PhyQZZYRN

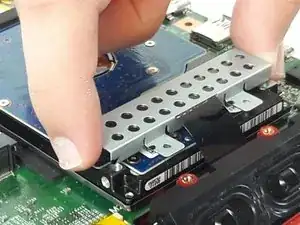

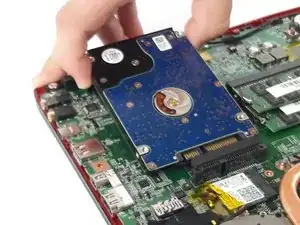

    • Remove the hard drive by gently lifting up and pulling the drive out of the connection slot

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Justice Owens

Mitglied seit: 26/09/17

589 Reputation

4 Kommentare

Saved my life, would have had no idea what to do without these instructions and would probably have broke something. My new 2tb ssd is working fine

Simon Porter -

Upgraded the Memory to 32GB and the HDD to a 1TB SATA SSD.

Prabodha Elangasinha -

Only issue I ran into was one of the optical drive screws was frozen in, stripped hard, and I had to fall back on Moodys to break it loose. Once done, everything else was cake.

Chuck Brewer -

My ssd is working fine and the hdd has gone bad on mine... have not even opened mine yet but looking at the pics I wonder where the second drive is located?

Eric Jimenez -
