MSI GE62 Apache Pro 004 Motherboard Replacement

Geschrieben von: Alexander
  • Kommentare: 0
MSI GE62 Apache Pro 004 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

This guide will show how to replace the motherboard on the MSI Apache Pro 004 laptop.

  1. VrmK6rcAvhQa1YJJ

    • Start with the bottom of the laptop facing up.

  2. NycatHDJJLWqP66X
    NycatHDJJLWqP66X
    KCSglUYRMRDsWs52

    • Remove the 15 screws from the bottom of the laptop with a PH1 screwdriver.

    • Remove the bottom plate

    • Keep track of all the screws and which slot they came from, as they slightly differ. We recommend this system: lay out on a piece of paper and pretending the paper is the device. Place the screws on the paper approximately where they would go

  3. qAj1pPlDDiRKVqMR
    qAj1pPlDDiRKVqMR
    I6vR212yFcG1Pabl
    5HjShsZMGeY6By6e

    • Remove the screw holding down the battery with a PH1 screwdriver.

    • Pull out the battery.

  4. JmcFrwGAPDxllx5H
    JmcFrwGAPDxllx5H
    ZuarwEWCw1oXl5yV

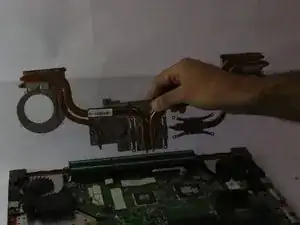

    • Remove the cooling assembly by unscrewing the fourteen screws holding it in place.

  5. 5tbqmNmSA41PibU5
    5tbqmNmSA41PibU5
    fw1m1QbJTH2YYPEj
    LdYIO6YpiGORLp6f

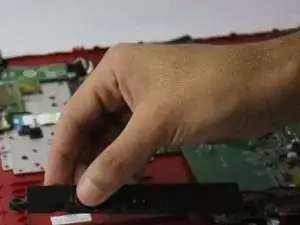

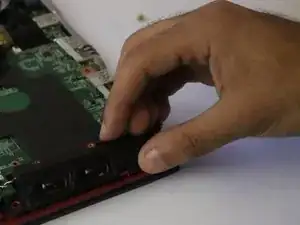

    • Remove the speakers holding the motherboard in place, located on the bottom left and bottom right of the device.

    • Unfasten the 8 screws holding the motherboard in place.

    • Pull out the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
