MSI GE62 Apache Pro 004 Web Camera Replacement

Geschrieben von: Majid Al Hashmi
  • Kommentare: 0
MSI GE62 Apache Pro 004 Web Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

This guide will show the replacement of the webcam on the MSI Apache Pro 004 laptop.

  1. VrmK6rcAvhQa1YJJ

    • Start with the bottom of the laptop facing up.

  2. NycatHDJJLWqP66X
    NycatHDJJLWqP66X
    KCSglUYRMRDsWs52

    • Remove the 15 screws from the bottom of the laptop with a PH1 screwdriver.

    • Remove the bottom plate

    • Keep track of all the screws and which slot they came from, as they slightly differ. We recommend this system: lay out on a piece of paper and pretending the paper is the device. Place the screws on the paper approximately where they would go

  3. qAj1pPlDDiRKVqMR
    qAj1pPlDDiRKVqMR
    I6vR212yFcG1Pabl
    5HjShsZMGeY6By6e

    • Remove the screw holding down the battery with a PH1 screwdriver.

    • Pull out the battery.

  4. 1c3RcY6mXUwYqeqa

    • Flip over the laptop and open it.

  5. WW5kEdLirgcOEFUY
    WW5kEdLirgcOEFUY
    NbUEXmJouIJWMq3V
    VeINjZIup65thikA

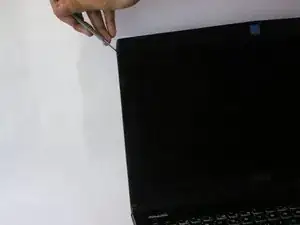

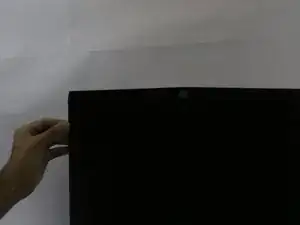

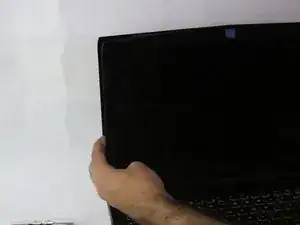

    • Slide a metal opener tool along the outside edges of the front screen panel to start to separate it from the back screen panel.

    • You may need to apply some firm pressure to get it started.

  6. RuqnlhwAKYHxAtoy
    RuqnlhwAKYHxAtoy
    B3Fk32grIZT1mJ3K

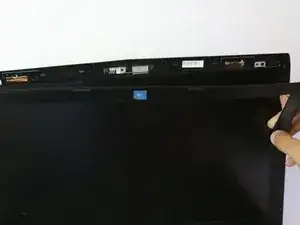

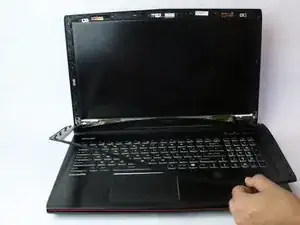

    • Once it has started to separate, gently pull off the screen panel by working along the edge, and set it aside.

  7. iJeLTXhxPumoDOgk
    iJeLTXhxPumoDOgk
    6etmuOVKk66ZpfYg

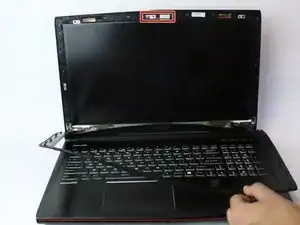

    • Locate the WebCam on the middle of the device.

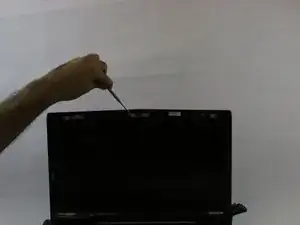

    • Slide a metal opener tool to remove the Webcam

Abschluss

To reassemble your device, follow these instructions in reverse order.
