MSI GE70 2PE Apache Pro RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 Minuten

Einleitung

This guide can be used to help you replace or upgrade the RAM in your MSI GE70 2PE Apache Pro. This is a straight forward repair that requires only a Phillips screwdriver and a plastic opening tool. It should take no longer than 5 minutes to finish replacing or upgrading your RAM.

  1. ehM2SnvVysDERBsE

    • Turn over the laptop so the battery compartment is facing up.

  2. 5N4BQVSAZgOuqHcZ

    • Push the right latch all the way to the right until it clicks into place.

  3. D2vDrZDS3OypQbWo

    • Pull and hold the left latch.

  4. elT6RZUYFVUnN1aT

    • Pry the battery upward using the indent.

  5. uEXBuyJLQvXURYtG
    uEXBuyJLQvXURYtG
    MXL6TUxXXSEZK5nj
    OwKcAoW1PERbEkWc

    • Continue to pull the battery until it is free of the casing.

  6. 4uJEdCYBtCSop31E
    4uJEdCYBtCSop31E
    alr2xPulVblsYLB2
    GV2sH3M3nOYrKMOj

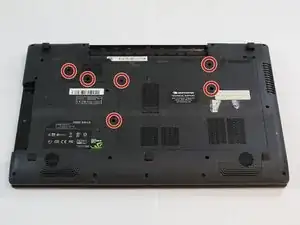

    • Remove the six 5.5mm Phillips #1 screws.

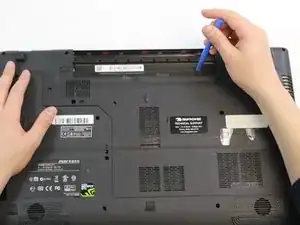

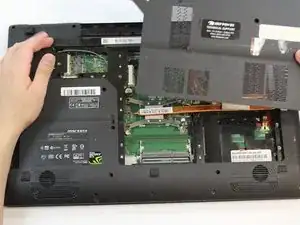

    • Pry the door off using the plastic opening tool.

    Be sure to name the blue tool you used, “Plastic Opening Tool”

    James Woitas -

  7. Y2RUGrLE5TJ4Vdb6
    Y2RUGrLE5TJ4Vdb6
    vqutrJLXTOlD3goO
    rayfbPqGAaXw1fFl

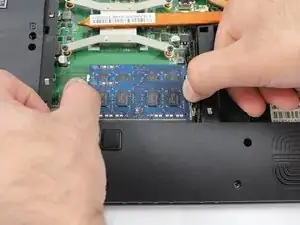

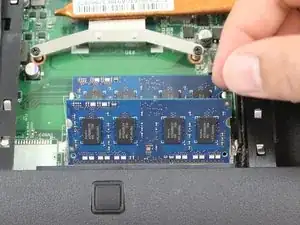

    • Gently pull the clips holding the RAM until the RAM stick pops up.

    • Slide the stick of RAM out.

  8. BkP6ACIVT52JCCUR
    BkP6ACIVT52JCCUR
    c52hfeHLCjvgJGsw
    12sJrQiTF6bG1QXQ

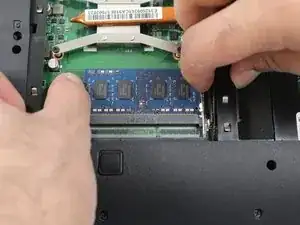

    • Repeat the process for the second RAM stick.

Abschluss

To reassemble your device, follow these instructions in reverse order.
