MSI GE72 6QF Apache Pro Fan Replacement

Geschrieben von: Tanmay Kumar

Kommentare: 14

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

25 Minuten

Einleitung

This guide will show you how to replace the fans in your MSI GE72 6QF Apache Pro.

Werkzeuge

Schritt 1

Make sure the laptop is off and unplugged (not charging).
With the laptop closed and upside down, unscrew the nineteen 5.5mm Phillips #1 screws that keep the back cover in place.

Schritt 2

Slide the optical drive out of the laptop.

Good day sir pls am urgently look for the complete cd rom for this laptop msi 1791. Please if u can get some for me text me on 7186034112

rauffsulemane -

Or send me and email rauff191@gmail.com

rauffsulemane -

Schritt 3

Use a Phillips screwdriver to remove the three screws along the edge of the optical drive bay.

Schritt 4

Using your fingers, gently loosen the edges of all four sides of the back cover.
Gently pull off the back cover.

Schritt 5

Unscrew the single 5.5mm Phillips #1 screw keeping the battery secure.

Schritt 6

Grab the battery with your fingers and gently pull it up and away from the rest of the laptop.

Schritt 7

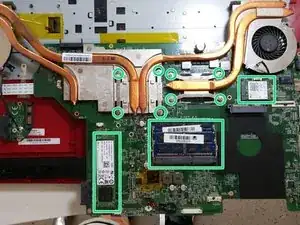

If you are replacing only the keyboard, you can skip to step 18, and then skip the WiFi adapter removal step. The CPU fan, m.2 SSD, RAM and WiFi adapter (marked in green) will all come off with the main board, giving you access to the keyboard.

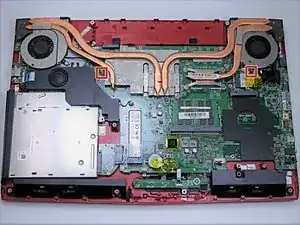

Use a Phillips #1 screwdriver to remove the ten 5.5mm screws.
Remove the last two 5.5mm Phillips #1 screws, and remove the washers around them.

Schritt 8

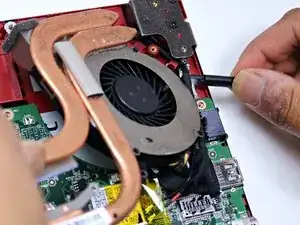

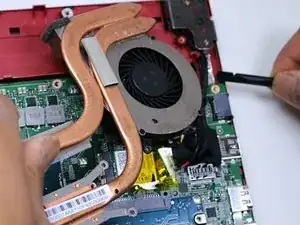

Unplug both of the fan power cords from the laptop using a spudger.

Schritt 9

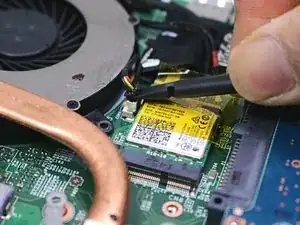

Continue to use the spudger to carefully separate the wires of the power cord from the laptop.

Schritt 10

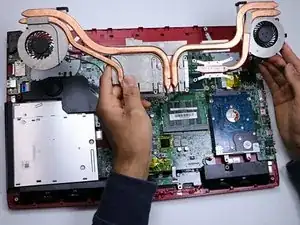

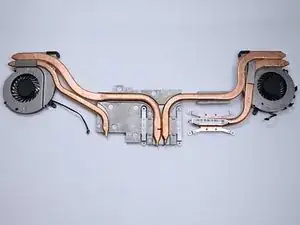

Fully remove the fans from the rest of the laptop.

what is the thing that the fans are held in called like that big metal thing i need to get that replaced i think and i dont know how ot search for it

BW NINOQUIMPS - 13/01/20

Schritt 11

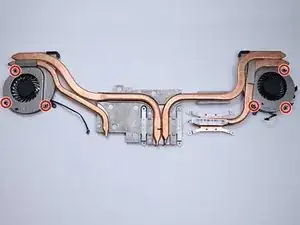

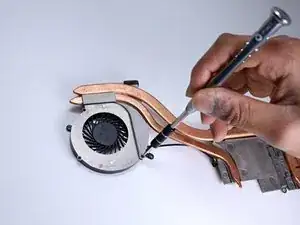

Using a Phillips #00 screwdriver, remove the six 5mm screws.

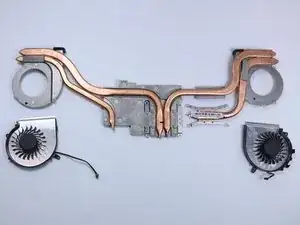

Separate the fans from the silver fan covers.

Should be mentioned that doing this will ALSO require repasting the CPU/GPU!!!

Not doing this step will result in improper cooling more than likely. - CRITICAL STEP

Mame A - 14/12/20

Thanks for the heads up

Daniel Martin -

Abschluss

To reassemble your device, follow these instructions in reverse order.
