MSI GE72 6QF Apache Pro Hard Drive Replacement

Geschrieben von: Tanmay Kumar
  • Kommentare: 3
MSI GE72 6QF Apache Pro Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

This guide will teach you how to replace the hard drive in you MSI GE72 6QF Apache Pro

  1. BDFnSAFl1Gk1Jk2U
    BDFnSAFl1Gk1Jk2U
    13TjDpO3I236JgFN

    • Make sure the laptop is off and unplugged (not charging).

    • With the laptop closed and upside down, unscrew the nineteen 5.5mm Phillips #1 screws that keep the back cover in place.

  2. j6NB2FI1vkDXraFl

    • Slide the optical drive out of the laptop.

    Good day sir pls am urgently look for the complete cd rom for this laptop msi 1791. Please if u can get some for me text me on 7186034112

    rauffsulemane -

    Or send me and email rauff191@gmail.com

    rauffsulemane -

  3. okGXAbMsbi4eP1qy

    • Use a Phillips screwdriver to remove the three screws along the edge of the optical drive bay.

  4. RGkd2kWjLEHVVM3W
    RGkd2kWjLEHVVM3W
    qSsX6JjgEMQ2CVsJ

    • Using your fingers, gently loosen the edges of all four sides of the back cover.

    • Gently pull off the back cover.

  5. OyfUq2FAEhU2PoJg
    OyfUq2FAEhU2PoJg
    bm3I5K4p1Xu62XPG

    • Unscrew the single 5.5mm Phillips #1 screw keeping the battery secure.

  6. p46khpLZ5VBkIVYK
    p46khpLZ5VBkIVYK
    RZGTfSPitmPqABIn

    • Grab the battery with your fingers and gently pull it up and away from the rest of the laptop.

  7. s1lwXmE1DjVwMI1a
    s1lwXmE1DjVwMI1a
    SJxC6YOnjxbMGHhO

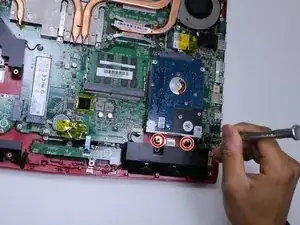

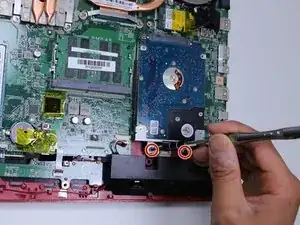

    • Remove the two 5.5mm screws with the Phillips #1 screwdriver.

  8. OmEOYA1SQJDMeYep
    OmEOYA1SQJDMeYep
    NHYQlyAqBh2P4RqG

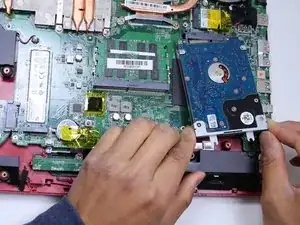

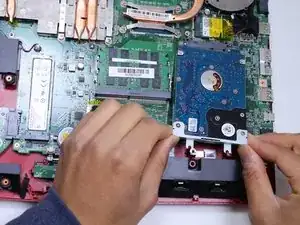

    • Gently pull out the hard drive by wiggling it from right to left with your hands until it is removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
