MSI GP60 2PE Leopard RAM Replacement

Geschrieben von: Zoey Calcagno
  • Kommentare: 0
MSI GP60 2PE Leopard RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

6 - 8 Minuten

Einleitung

Is your computer running slow, or do you need more memory? Use this guide to replace the RAM in your device.

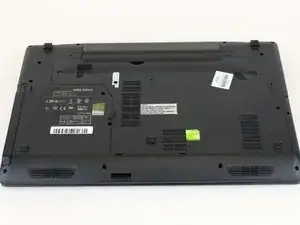

  1. Y5dL1hgpDPbcUSEJ

    • Flip MSI GP60 2PE Leopard, so that the back is facing up.

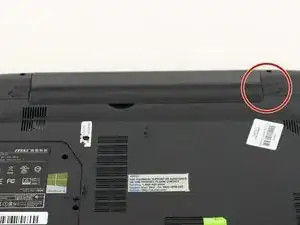

  2. dqB1oD1OUl2qM6DZ

    • Find the unlock tab located on the upper right side of the device, then slide it to the right.

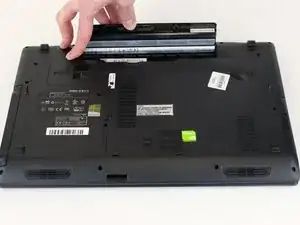

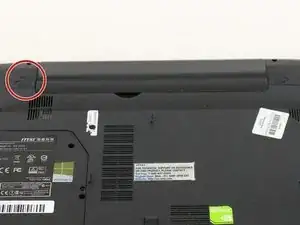

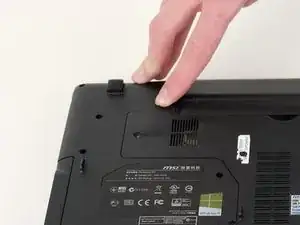

  3. ZGXgv4VFa2KmyYGj
    ZGXgv4VFa2KmyYGj
    2Hqa3qhVEpWYyq5X
    CMNK1FgmLomllQO1

    • Slide and hold the release tab on the left side of the battery, so that you can remove the battery.

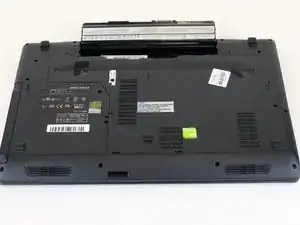

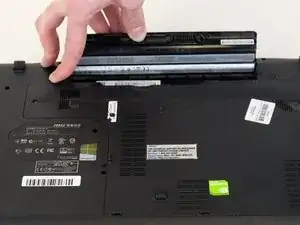

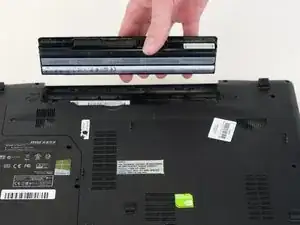

  4. 5hHK5fPTnVpbyn3a
    5hHK5fPTnVpbyn3a
    ggf5ppJF4OlvAGMC
    iVTbRyQ6YjMfoNSU

    • While holding the release tab, remove the battery slowly.

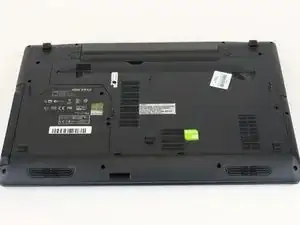

  5. BHrjFcDVNAHFRYnq

    • Flip the device over so the back is facing up.

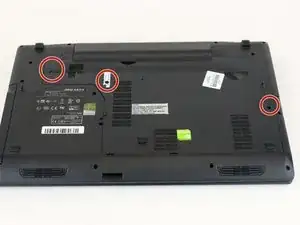

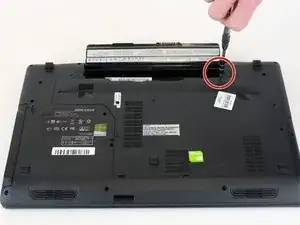

  6. MUKFAf2iAxnOfQWb
    MUKFAf2iAxnOfQWb
    TYx5wGngoTVHxlji

    • Remove the four 5mm screws from the back of the device using a Phillips #00 screwdriver.

    • There is a screw located under the battery; lift the battery up to access it.

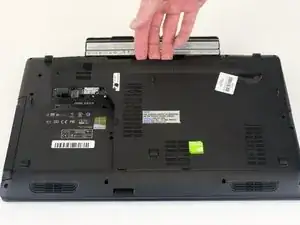

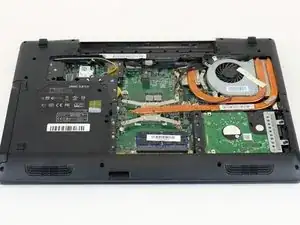

  7. YrDhMToIpVrFaInS
    YrDhMToIpVrFaInS
    BXjZtOmQCicMTM5o

    • Once all four screws are removed, lift the back off.

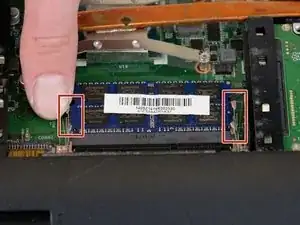

  8. tVOcMgQsUdvBF6cE

    • Press the tabs on the side of the RAM to remove it.

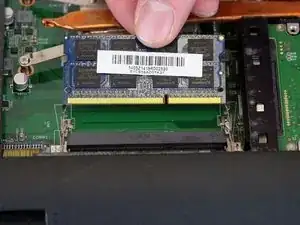

  9. iLQ1pAOwVhT4DJa1

    • Slide the RAM out of the slot carefully.

Abschluss

To reassemble your device, follow these instructions in reverse order.
