MSI GP62MVR 6RF Leopard Pro Fans Replacement

Geschrieben von: Dawson
  • Kommentare: 0
MSI GP62MVR 6RF Leopard Pro Fans Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

20 - 35 Minuten

Einleitung

This guide demonstrates how to replace the fans in the MSI GP62MVR 6RF Leopard Pro laptop. It is a difficult process with no special skills required. Avoid touching the circuitry when the case is open to avoid short-circuiting components or shocking yourself. If your fans are not turning on or are turning slow, and the laptop is overheating, then the fans will need to be replaced. Follow this guide to change the fans in a MSI GP62MVR 6RF Leopard Pro.

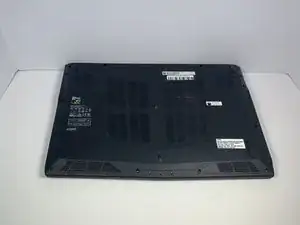

  1. JwiWKTuXZZJVBjBh
    JwiWKTuXZZJVBjBh
    eWFoTTEEL3qOyWb2

    • Place the laptop upside down.

    • Remove the sixteen 5.5 mm screws with a Phillips #0 screwdriver.

  2. NTjKxbGWvlGEaymP
    NTjKxbGWvlGEaymP
    TxPZhZTJUkLyNCgI

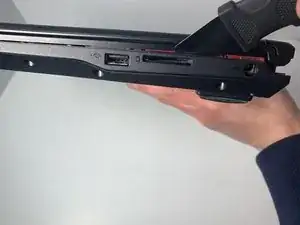

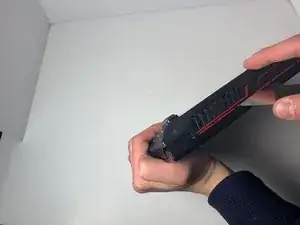

    • Use the Jimmy tool to evenly pry loose the bottom cover.

    • Ensure that all sides are detached from the plastic hinging before attempting to remove the bottom cover.

  3. PRUmtAJTANXNBOxF

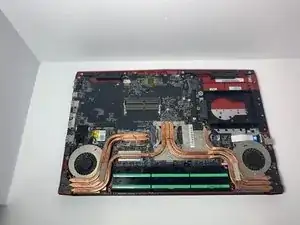

    • Remove the back cover.

    • Touching circuitry could damage components or result in personal shock; it is recommended that you now wear latex gloves to prevent both issues.

  4. tgKxc6xlJpJulETq
    tgKxc6xlJpJulETq
    oT3Vxg46uHTQrXNc

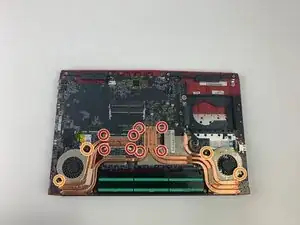

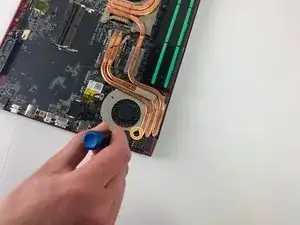

    • Remove the eight 4.5 mm screws that hold the heat sink to the motherboard with a Phillips #0 screwdriver.

    • Remove the four 4.5 mm screws holding the fan in place also using a Phillips #0 screwdriver.

    • Watch for the screw hidden under the wires highlighted in the second picture.

  5. vBQggZBSFShuDyUN
    vBQggZBSFShuDyUN
    XGsHYiOobSRrPnUr

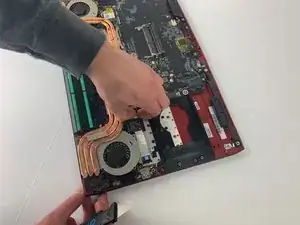

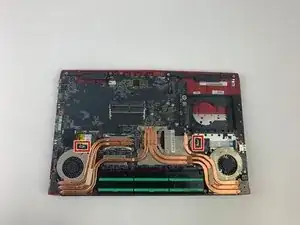

    • Disconnect both power cables for the fans.

    • Make sure to pinch the power cables. It may require a bit of force.

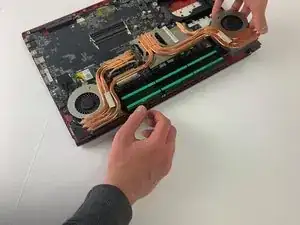

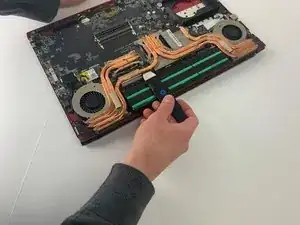

  6. TYapMrLCw5lNOvYm
    TYapMrLCw5lNOvYm
    Fj3AlZYRaPWsWbSN
    ACKHG5hsqiXfv6RA

    • Using the Jimmy tool, remove the adhesive pads securing the fans to the board.

  7. YsCgYgM3YmqwwGaE

    • Remove the black adhesive.

  8. 6MTus5schlySqZVO

    • Separate the heat sink from the tab on the side holding the fan in place.

  9. cpPWktQoYvb52vFt

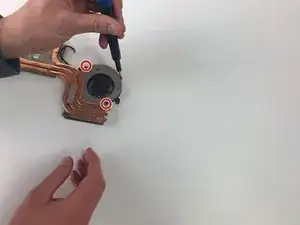

    • Remove the three 3.5 mm screws on each fan holding the fan to the heat sink using a Phillips #0 screwdriver.

Abschluss

To reassemble your device, follow these instructions in reverse order.
