MSI GS60 6QE GHOST PRO 4K Motherboard Replacement

Geschrieben von: Azher Hamid
  • Kommentare: 3
MSI GS60 6QE GHOST PRO 4K Motherboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

16

Zeitaufwand

1 Stunde

Einleitung

The motherboard replacement is the most critical and difficult repair process of this laptop. Gaining access to laptop's motherboard allows the user to also replace the CPU/GPU fan or the RAM if need be.

  1. ZYMWv5mEut3pKBJ3
    ZYMWv5mEut3pKBJ3
    2aROcdOttJI21UXU

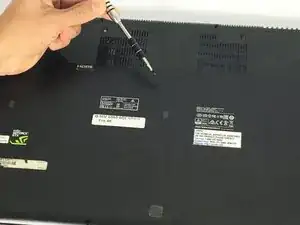

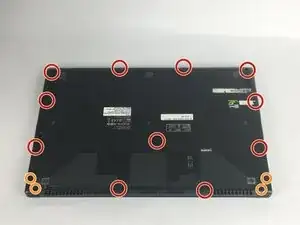

    • Remove the eleven 5mm screws with a Phillips #0 bit.

    • Remove the four 2.5mm screws with a Phillips #0 bit.

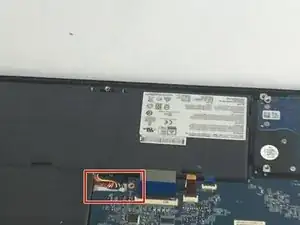

  2. hLOVOXZ1U5nkUfdH
    hLOVOXZ1U5nkUfdH
    GDQcYofniO3C5Tay

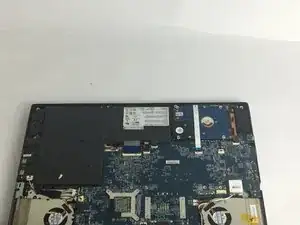

    • After opening the bottom plate, locate the battery and the battery connection.

  3. SVSTk4ZnPYk3RgFA
    SVSTk4ZnPYk3RgFA
    AICkCLOwjtfQkqfM

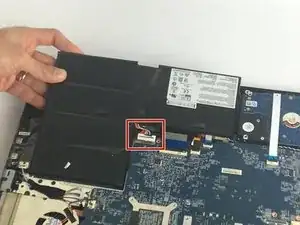

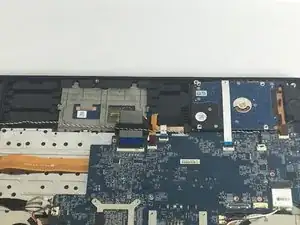

    • Unplug the battery connection carefully from the motherboard, and remove the old battery.

  4. nx5b4DiRKxRYnKo4

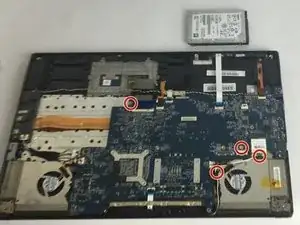

    • Remove the four 2.5 mm screws from the motherboard.

    Hey guys! I have completed this upgrade and just wanted to add a note for you out there that are planning on following these instructions.

    There is another screw that needs to be removed located at the left vent- inward, towards the battery.

    This is something I didn’t spot straight away and took me a little while to notice.

    Cheers!

    Plamen T. -

  5. XAwcCeKtiwtgZ6HE

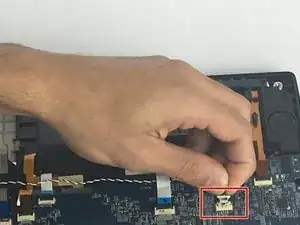

    • Unplug the speaker wire.

  6. CDKfXhO1mcG3AFQR
    CDKfXhO1mcG3AFQR
    rCGbBb6neiQfwmdT

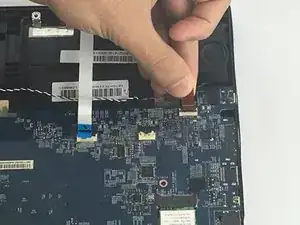

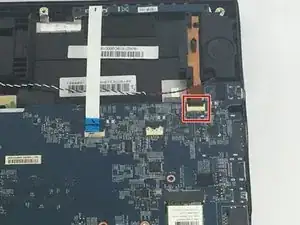

    • Gently lift the selected black tab that connects the cable onto the board and then slide out the cable.

    • Be careful not to break the black cover.

  7. CAgeK2DcqLSJWSFu
    CAgeK2DcqLSJWSFu
    3TaqmCQo2CAhcIvg

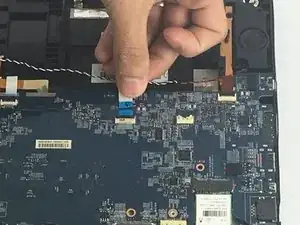

    • Gently lift the selected black tab that connects the cable onto the board and then slide out the cable.

    • Be careful not to break the black cover because it can be broken easily

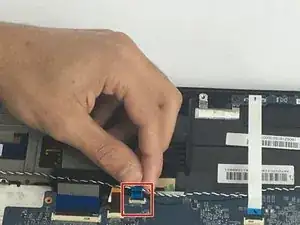

  8. jGVGTbYmxSnrOMoI

    • Gently lift the selected black tab that connects the cable onto the board and then slide out the cable.

    • Be careful not to break the black cover. lift it up gently

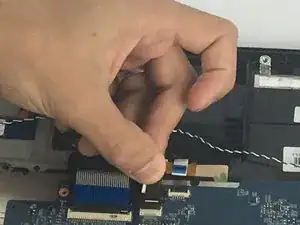

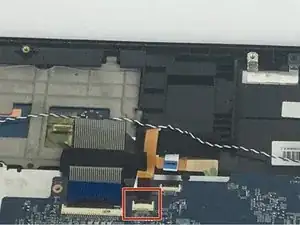

  9. goMaOCpZqEYFs2D1
    goMaOCpZqEYFs2D1
    YBCDt4DvS1s4tTT2

    • Gently lift the selected black tab that connects the cable onto the board and then slide out the cable.

  10. lncHZJFr54x5MWZ1
    lncHZJFr54x5MWZ1
    YKTir1fXLBbHVUHX

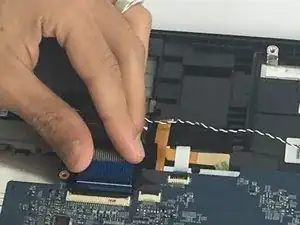

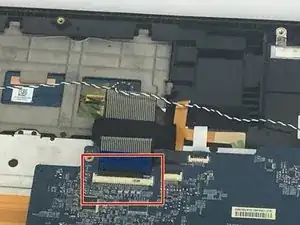

    • Gently lift the selected black tab that connects the cable onto the board and then slide out the cable.

  11. 6vKdBFLAa1gisg2D
    6vKdBFLAa1gisg2D
    HSg3k1qUVJNyYnre

    • Unplug the selected cable

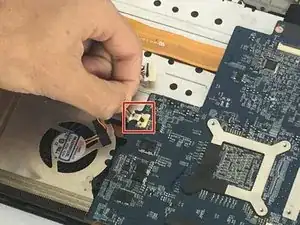

  12. fWakfQfxWNXDvvoG
    fWakfQfxWNXDvvoG
    sLLBID5SWUjXdIyn
    FKX3FJYl1LhlwJBS

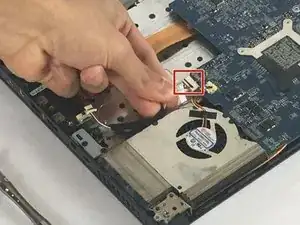

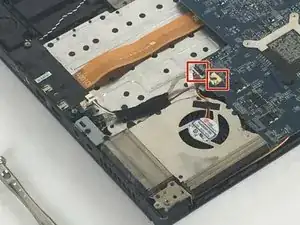

    • Locate and unplug the selected cables.

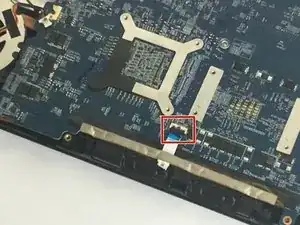

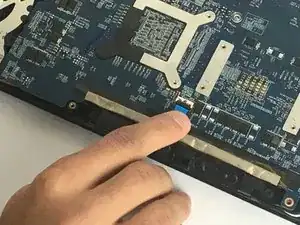

  13. IvIakUlEtaNemNUB
    IvIakUlEtaNemNUB
    rtk51RhQNaV3vrSd

    • Gently lift the selected black tab that connects the cable onto the board and then slide out the cable.

    • Unplug it carefully without breaking the black cover.

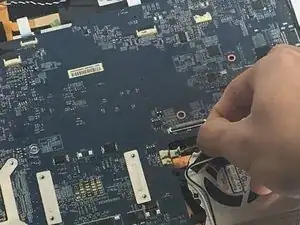

  14. XRhhO5iIKdDVQM5I
    XRhhO5iIKdDVQM5I
    o6DrQb2dCSJcvVRp

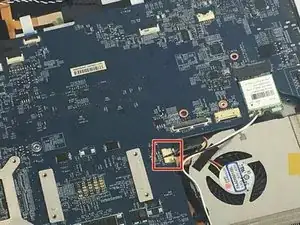

    • Gently unplug the selected cable

  15. nFoSMBPkg3YS4HEw
    nFoSMBPkg3YS4HEw
    owcS3AeAnZPeVDCc

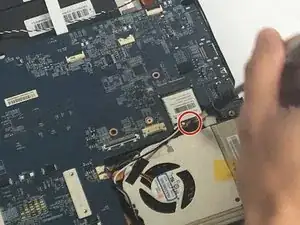

    • Gently remove the electronic component by sliding it out and lifting it up after unscrewing the 2.5 mm screw

    • Make sure your unscrew the screw first and unplug the chip from the motherboard. Do not disconnect the wires connected to the chip

  16. D6AlqCxNtZHTeIsd

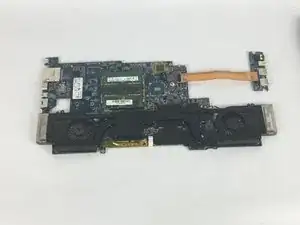

    • After unplugging all of the cables and unscrewing all of the screws, gently remove the motherboard out of the computer chassis

    • This part will take some effort but remember not to apply to much pressure on the motherboard as to not damage any of the small electrical components on the board

Abschluss

To reassemble your device, follow these instructions in reverse order.
