MSI GS60 6QE GHOST PRO 4K Motherboard fans Replacement

Geschrieben von: Mafdy Wahib
  • Kommentare: 7
MSI GS60 6QE GHOST PRO 4K Motherboard fans Replacement

Schwierigkeitsgrad

Difficult

Schritte

16

Zeitaufwand

1 Stunde

Einleitung

This is a hard process and takes time. to get to the motherboard fan, the motherboard need to be completely disconnected from the computer. After, the motherboard is disconnected and taken out of the computer, then you will be able to disconnect the fan and replace it. all the steps need to be done with carefulness to avoid any wiring damage.

  1. wAQkkAFpJiroFI6i
    wAQkkAFpJiroFI6i
    VMuMSwAib5eZNHgI
    xfLlxMQGavSVFRLe

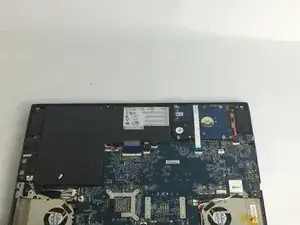

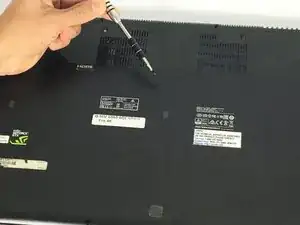

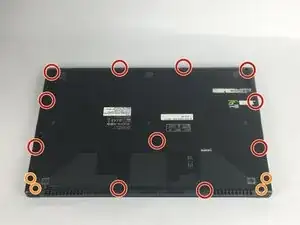

    • Use a Phillips #0 driver to remove the 15 screws that hold the bottom cover:

    • Eleven 2.5 mm length screws

    • Four 5 mm length screws

    • Remove the bottom cover.

  2. 6VBHDSr24FNvkRWg
    6VBHDSr24FNvkRWg
    DRxp1W63DGPCEEcq
    6ykBhJMcQAHn4kmh

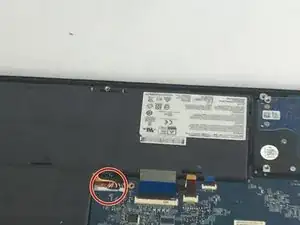

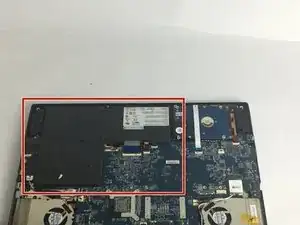

    • Locate the battery.

    • Locate the battery plug and unplug it carefully

  3. IWcACJAIOEvLGHMF
    IWcACJAIOEvLGHMF
    iJm6r5mRbkOANoTo
    hOxGqykeEDImSmXC

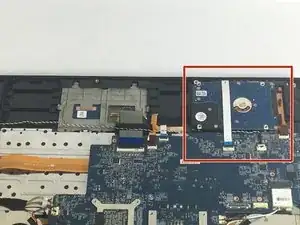

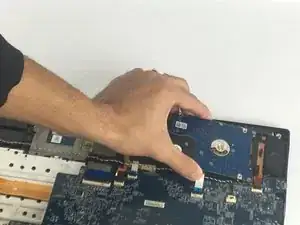

    • Locate the Hard drive

    • Unplug it gently by lifting it up to unlock the black cover that connects it to the motherboard

    • Be careful not to break the black cover because it can be broken easily

    • Unplug the hard drive

  4. OUKgK24ABoNngE1y
    OUKgK24ABoNngE1y
    KEqrSBpEHWpGDUkD
    MDuUQZRXQTQWj5NA

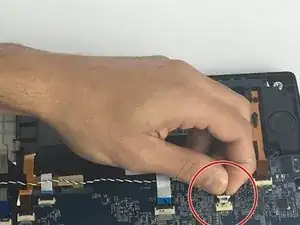

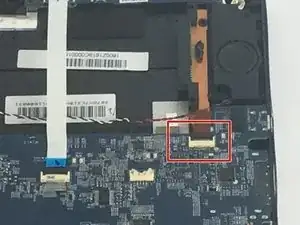

    • unplug this wire carefully

    • Unplug the brown wire located next to the previous wire. Unplug it gently by lifting it up to unlock the black cover that connects it to the motherboard

    • Be careful not to break the black cover because it can be broken easily

  5. NwKADJXqEM3pfDGN
    NwKADJXqEM3pfDGN
    Zr4miHL1VVNUR3H4

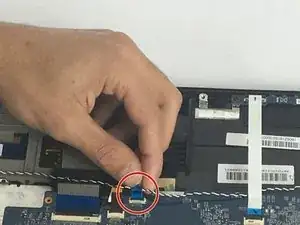

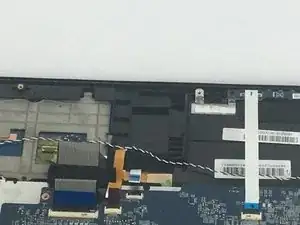

    • unplug the selected wire. Unplug it gently by lifting it up to unlock the black cover that connects it to the motherboard

  6. Awid6HraXHsptmXh
    Awid6HraXHsptmXh
    52jT4fJSKKCBZXcv

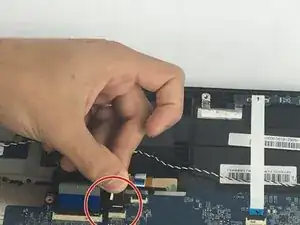

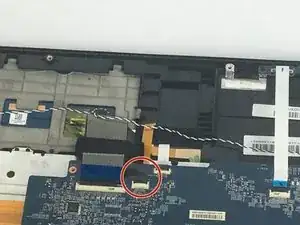

    • unplug the brown selected wire. Unplug it gently by lifting it up to unlock the black cover that connects it to the motherboard

  7. wBWdsHPBL6UW6wqd

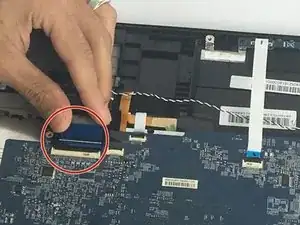

    • unplug the selected wire. Unplug it gently by lifting it up to unlock the black cover that connects it to the motherboard

  8. ctHBYOoSaGNhUMot
    ctHBYOoSaGNhUMot
    JCyIlWk6giTgL41V

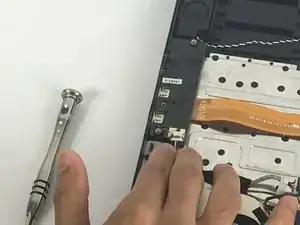

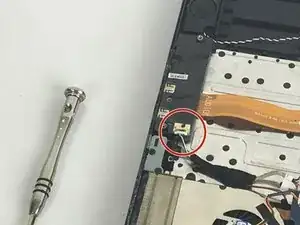

    • Locate the selected wire and unplug it carefully

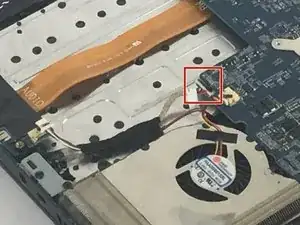

  9. TSeRDyfwjNAkPdFB
    TSeRDyfwjNAkPdFB
    q5LPpKHHCkiuCgn3
    XaKBvHsKEJ5x4pOJ

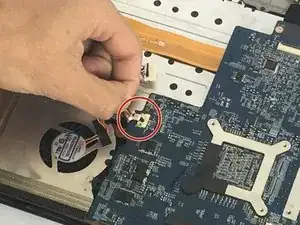

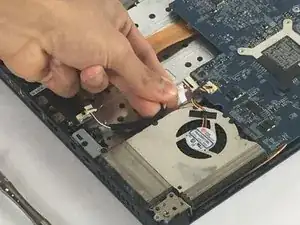

    • unplug the selected wires

    • Unplug it gently without causing damage to the wire

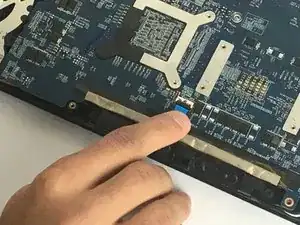

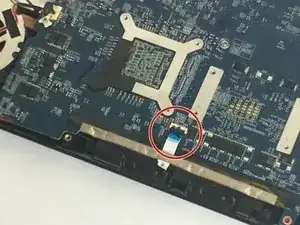

  10. At5B1NCX1Otty4qq
    At5B1NCX1Otty4qq
    ALusKFUSVpWHoBnY

    • unplug the selected white wire. Unplug it gently by lifting it up to unlock the black cover that connects it to the motherboard

    • Be careful not to break the black cover because it can be broken easily

  11. TkPpm1FZgQxuHEXD
    TkPpm1FZgQxuHEXD
    PsaB1cJrWHaXiilP

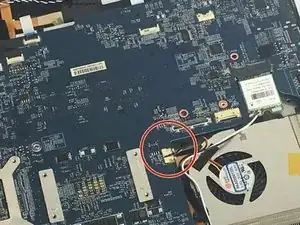

    • unplug the selected wire.

  12. AI4WJYSH2CZ6Yjwm
    AI4WJYSH2CZ6Yjwm
    EqaucEPXoFYgeP6J

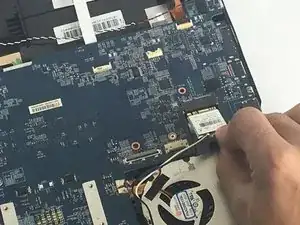

    • remove the selected 2.5 mm screws by PH0 Bit screwdriver

    • Gently unplug the electronic chip

  13. yMCCmGSbSPHCAxTB

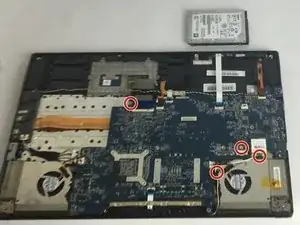

    • Remove the four 2.5mm screws with a PH0 bit.

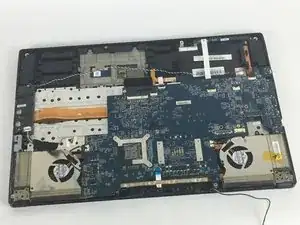

  14. rfiGvO2GXRW5TbXX
    rfiGvO2GXRW5TbXX
    unSctUVlPPy1aYDs

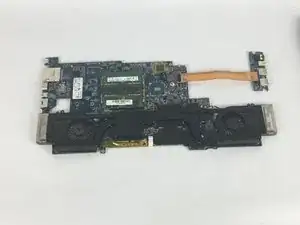

    • After you remove all the connected wires and unscrew all the screws that holds the motherboard to the laptop, take the motherboard out as shown in the picture.

    • Make sure it is completely diconnected from all wires and screws

  15. GO2nacKFeqf2aAit
    GO2nacKFeqf2aAit
    Bw5BoEOyHtS1jtRh
    YhNtYly2XMSCaPSs

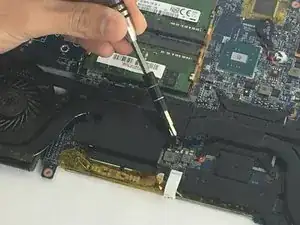

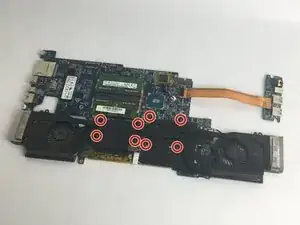

    • Remove the eight 2.5mm screws with a PH0 bit.

    I can't get 4/8 out, they are stuck tight and stripped.

    Tried heating the screws to break the bonds, nothing budges still.

    Anyone have luck trying anything else?

    David G -

  16. D2BjLPcGRDtfkD1V

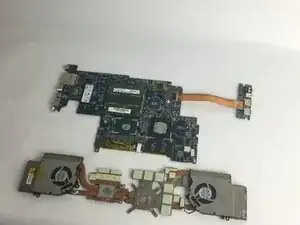

    • After you unscrew all the screws, take the fan off to replace it.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Mafdy Wahib

Mitglied seit: 28/09/17

369 Reputation

6 Kommentare

Hi, I just went through this disassembly (which is mostly great, thank you Mafdy) to replace the fans, and I wanted to point out a couple of clarifications:

Most importantly! It is NOT necessary to remove the fan/heatsink assembly from the motherboard to remove and replace the fans! Instead of proceeding with steps 15 and 16, look for tiny philips screws on the black side of the heatsink assembly which fasten each fan - 3 for one fan, 4 for the other. These are accessible once the motherboard is free from the case.

Steps 15 and 16 cause you to break the thermal compound seal on the CPU and GPU, and then proper re-assembly would mean cleaning off the old compound and correctly applying new compound before re-attaching the heatsink assembly - an unnecessary hassle just to replace the fans.

Secondly, be aware that, during steps 13-14, there are a number of additional screws and connectors that are not mentioned, that need to be removed in order to release the motherboard from the laptop housing.

Happy Fixing!

Knight9990 -

fans in the final section combined with copper pipe. Can they be separated? I'm having trouble finding a fan. Where can I buy new fans.

Çağlar Gökçe -

I have replaced both fans on gs60 today, and the instructions worked like charm! Steps 14-16 were unnecessary! Thx!

Konstantin Izmailov -

Just in case anyone else needs to replace the one of the fans on this laptop, I avoided having to disassemble the whole motherboard out of the laptop by using a pair of pliers to break all the plastic housinging holding the fan in place and physically ripping the fan out. I had to do this due to bearing failure on the fan.

If your fan is grinding (but still going) anecdotally, you can get slightly more life out of it by forcing in wet lubricant, but this is more of a bandaid solution.

Also if you do go through the effort of ripping out your entire heatsink and motherboard, you might as well reapply some high end thermal compound like thermal grizzly kryonaut.

Bennett Yeo -
