MSI GS60 6QE GHOST PRO 4K RAM Replacement

Geschrieben von: Justin Pelley
  • Kommentare: 2
MSI GS60 6QE GHOST PRO 4K RAM Replacement

Schwierigkeitsgrad

Difficult

Schritte

18

Zeitaufwand

45 Minuten

Einleitung

This replacement guide is difficult only because in order to replace the RAM, the motherboard need to be taken out of the device completely. However, replacing the RAM itself is not hard at all. so basically all the hard work is to unplug the motherboard completely and take it out to reach the RAM.

  1. ZYMWv5mEut3pKBJ3
    ZYMWv5mEut3pKBJ3
    2aROcdOttJI21UXU

    • Remove the eleven 5mm screws with a Phillips #0 bit.

    • Remove the four 2.5mm screws with a Phillips #0 bit.

  2. hLOVOXZ1U5nkUfdH
    hLOVOXZ1U5nkUfdH
    GDQcYofniO3C5Tay

    • After opening the bottom plate, locate the battery and the battery connection.

  3. SVSTk4ZnPYk3RgFA
    SVSTk4ZnPYk3RgFA
    AICkCLOwjtfQkqfM

    • Unplug the battery connection carefully from the motherboard, and remove the old battery.

  4. nx5b4DiRKxRYnKo4

    • Remove the four 2.5 mm screws from the motherboard.

    Hey guys! I have completed this upgrade and just wanted to add a note for you out there that are planning on following these instructions.

    There is another screw that needs to be removed located at the left vent- inward, towards the battery.

    This is something I didn’t spot straight away and took me a little while to notice.

    Cheers!

    Plamen T. -

  5. XAwcCeKtiwtgZ6HE

    • Unplug the speaker wire.

  6. CDKfXhO1mcG3AFQR
    CDKfXhO1mcG3AFQR
    rCGbBb6neiQfwmdT

    • Gently lift the selected black tab that connects the cable onto the board and then slide out the cable.

    • Be careful not to break the black cover.

  7. CAgeK2DcqLSJWSFu
    CAgeK2DcqLSJWSFu
    3TaqmCQo2CAhcIvg

    • Gently lift the selected black tab that connects the cable onto the board and then slide out the cable.

    • Be careful not to break the black cover because it can be broken easily

  8. jGVGTbYmxSnrOMoI

    • Gently lift the selected black tab that connects the cable onto the board and then slide out the cable.

    • Be careful not to break the black cover. lift it up gently

  9. goMaOCpZqEYFs2D1
    goMaOCpZqEYFs2D1
    YBCDt4DvS1s4tTT2

    • Gently lift the selected black tab that connects the cable onto the board and then slide out the cable.

  10. lncHZJFr54x5MWZ1
    lncHZJFr54x5MWZ1
    YKTir1fXLBbHVUHX

    • Gently lift the selected black tab that connects the cable onto the board and then slide out the cable.

  11. 6vKdBFLAa1gisg2D
    6vKdBFLAa1gisg2D
    HSg3k1qUVJNyYnre

    • Unplug the selected cable

  12. fWakfQfxWNXDvvoG
    fWakfQfxWNXDvvoG
    sLLBID5SWUjXdIyn
    FKX3FJYl1LhlwJBS

    • Locate and unplug the selected cables.

  13. IvIakUlEtaNemNUB
    IvIakUlEtaNemNUB
    rtk51RhQNaV3vrSd

    • Gently lift the selected black tab that connects the cable onto the board and then slide out the cable.

    • Unplug it carefully without breaking the black cover.

  14. XRhhO5iIKdDVQM5I
    XRhhO5iIKdDVQM5I
    o6DrQb2dCSJcvVRp

    • Gently unplug the selected cable

  15. nFoSMBPkg3YS4HEw
    nFoSMBPkg3YS4HEw
    owcS3AeAnZPeVDCc

    • Gently remove the electronic component by sliding it out and lifting it up after unscrewing the 2.5 mm screw

    • Make sure your unscrew the screw first and unplug the chip from the motherboard. Do not disconnect the wires connected to the chip

  16. D6AlqCxNtZHTeIsd

    • After unplugging all of the cables and unscrewing all of the screws, gently remove the motherboard out of the computer chassis

    • This part will take some effort but remember not to apply to much pressure on the motherboard as to not damage any of the small electrical components on the board

  17. cAw2cLrrRaNP5XBR

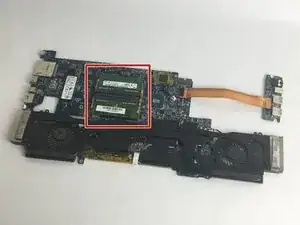

    • After removing the motherboard from the laptop chassis locate the RAM chips indicated by the red rectangle.

  18. cRUqE12sULGCpawL
    cRUqE12sULGCpawL
    WGipMwGHQqStHWHK

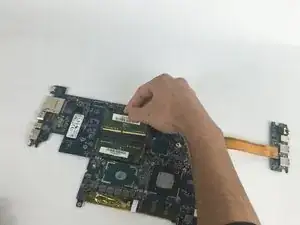

    • Firmly grip the two rectangular Ram components, one at a time, and pull them up from the Motherboard, be gentle. Once this process is complete, you have successfully removed the Ram.

Abschluss

To reassemble your device, follow these instructions in reverse order.
