Einleitung
This guide will show you how to replace the RAM cards in your laptop.
Werkzeuge
Ersatzteile
-
-
Using the screwdriver, unscrew the highlighted 1.2mm Phillips head #0 screws which secure the back panel into place.
-
-
-
Using the plastic opening tools, separate the back panel from the rest of the device.
-
Do this by firmly pressing the head of the tool into the space between the back panel, and the rest of the device.
-
-
-
Notice the L-shaped battery in the lower right corner of the opened laptop.
-
Disconnect the battery from the slot it is connected to. You'll need to push on the sides of the clip and pull.
-
-
-
Lift up the battery with your fingers and remove it from the laptop.
-
Place the battery away from the laptop in a safe spot and insert your new battery by hooking it up to the slot you previously disconnected the old battery from.
-
-
-

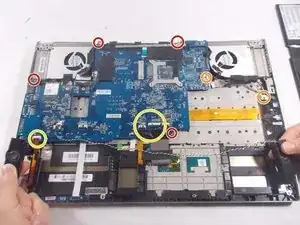

Unscrew the 4 1.2mm Phillips #0 screws connecting the motherboard to the laptop case.
-
Disconnect the wires connecting to the motherboard to the USB ports.
-
Disconnect the ribbon cables connecting the keyboard, and track pad of the device.
-
-
-

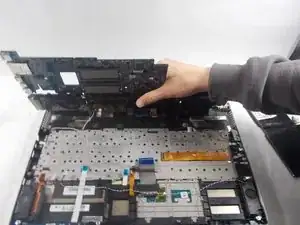

Lift the motherboard around.
-

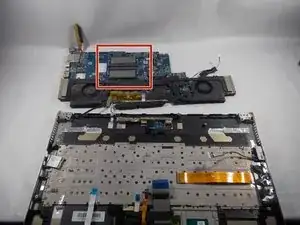

You'll notice the RAM cards located where the red box is shown.
-
-
-

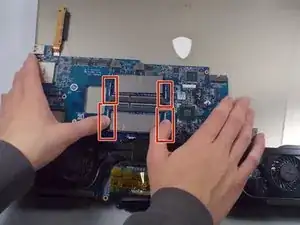

Pull the silver latches to release the RAM cards.
-
Pull out the cards and replace them with new ones.
-
To reassemble your device, follow these instructions in reverse order.
