MSI GS63VR 6RF Stealth Pro Speakers Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

7 - 8 Minuten

Einleitung

In this guide, we're replacing the speakers of the MSI GS63VR 6RF.

  1. uISqvCHSXvTPN2XU
    uISqvCHSXvTPN2XU
    VtXvTlcUYEQgSDdx

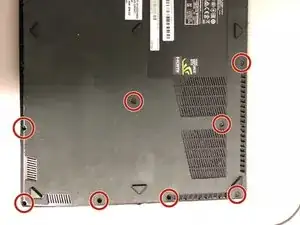

    • Unscrew the screws located around the bottom panel with a Phillips #00 mm Screwdriver.

  2. SH5Ju5R5HSmHLF1q

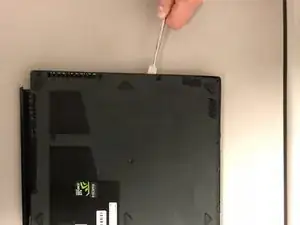

    • Carefully pry the back panel away from the laptop.

  3. X1CpZEQN2UGHXVTI
    X1CpZEQN2UGHXVTI
    ELK3sa1qVHBTylTf

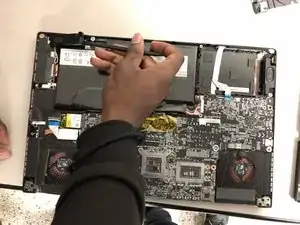

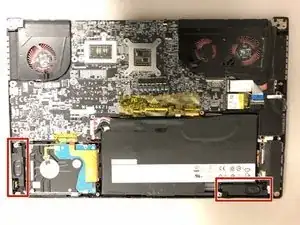

    • Locate the speakers and use a plastic spudger to lift and remove them.

    • Repeat the same action for the other speaker.

  4. xCRdXcZBLpQDNExH
    xCRdXcZBLpQDNExH
    IvCNkThdiuHhVYnU
    TsMFhuppwae6kBpr

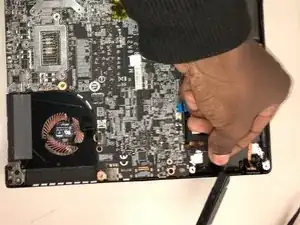

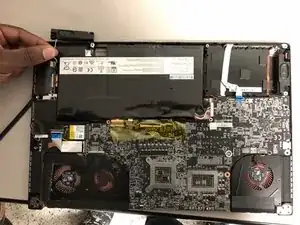

    • Disconnect both speaker wires from the motherboard.

    • Be careful not to yank the cables, as this could damage them.

Abschluss

To reassemble your device, follow these instructions in reverse order.
