MSI GS63VR 6RF Stealth Pro WiFi Card Replacement

Geschrieben von: Nabil Ranjbar
  • Kommentare: 3
MSI GS63VR 6RF Stealth Pro WiFi Card Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

15 Minuten

Einleitung

If you're having connectivity issues with your Stealth Pro, or simply want an upgrade, this guide will walk you through the replacement process.

  1. tpb1dbTaNf2oHL2H
    tpb1dbTaNf2oHL2H
    6KIf2gxSScwtyELu
    vN5KKyEJoSxvmXXO

    • Turn off the laptop and make sure it is unplugged from power before proceeding.

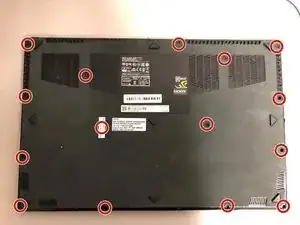

    • Unscrew the 15 screws on the bottom panel using a Phillips #00 screwdriver.

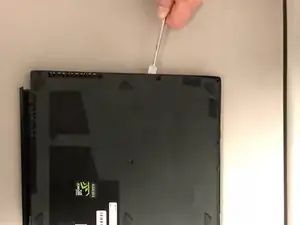

    • Pry open the back cover with a plastic spudger.

    • Lift the back cover away from computer. Make sure nothing is attached.

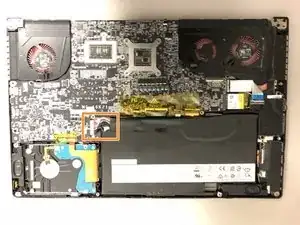

    • Unplug the battery cable from the motherboard to prevent a ground fault.

    • Too much pressure from the spudger can break the clips that secure the back panel, but some flex is not dangerous.

  2. 4GJGJIUqKwyPS3C1
    4GJGJIUqKwyPS3C1
    nACUX1PAojGhJoZq

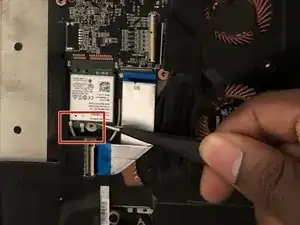

    • Unscrew the single screw from the Wifi card using a Phillips #00 screwdriver.

    • Apply upward pressure on the cables using a plastic tweezer.

    • Using either your hand or the plastic tweezer, grab and wiggle the card out of the socket.

    • Pull the card upward from the slot.

    • Wifi cables are fragile.

    • To reassemble the laptop, simply reverse these steps.
