MSI GT72 2QE Dominator Pro CD Drive Replacement

Geschrieben von: Ankit Maurya
  • Kommentare: 0
MSI GT72 2QE Dominator Pro CD Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

CD drive not working properly? CD drive not functioning properly and refusing to come out? This guide will take you through how to remove the CD drive.

  1. 51empWHNeFedXUe1
    51empWHNeFedXUe1
    UXrpPU3EJgedHA2S

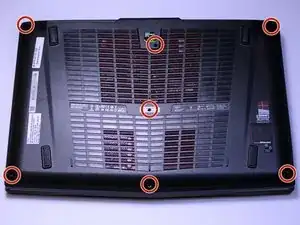

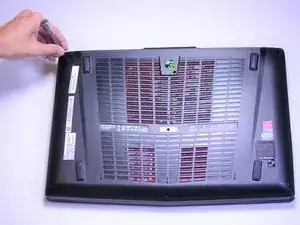

    • Remove the indicated seven (7) 6 mm Phillips #0 screws for the back cover.

    • The same PHO screwdriver bit can be used throughout all the steps.

  2. mZkXeRjuT6TATLsU
    mZkXeRjuT6TATLsU
    Ib6CZ2QpWPyalGNh

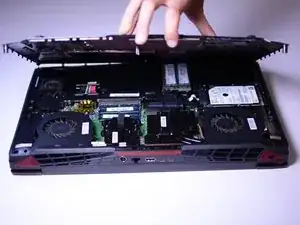

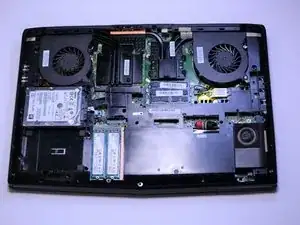

    • Lift the back cover using the tab to expose the hardware beneath.

  3. dIK2yeQBVwNWBZ6q
    dIK2yeQBVwNWBZ6q
    nPKARebGbObICW41
    MKKTDMluLroFf3ZU

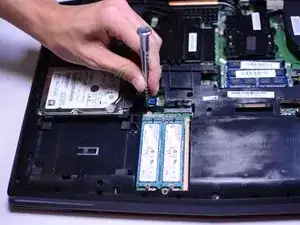

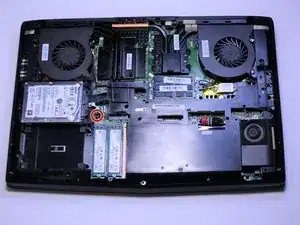

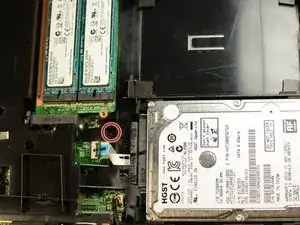

    • Remove the indicated 5mm Phillips #0 screw.

    • This is the only screw holding the CD drive in place. Do not lose it.

  4. CdXlSnBu1bCDfxyK

    • Using the plastic opening tool, pull out the CD drive.

  5. qI6eKQjlKbGwcyfP
    qI6eKQjlKbGwcyfP
    lsJcEkHQNgw6ZJWa

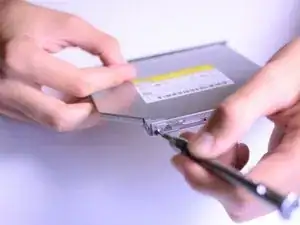

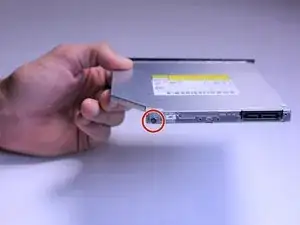

    • Remove the indicated 4mm Phillips #0 screw and metal hinge.

  6. AqQCyKb3CwFiPwSl
    AqQCyKb3CwFiPwSl
    1gyGJpk5BsXCIFKt

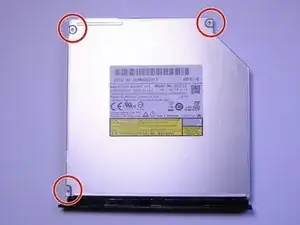

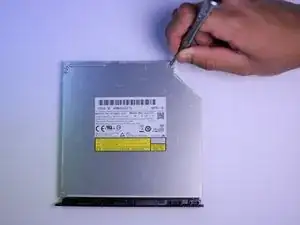

    • Remove the three (3) indicated 2mm Phillips #0 screws.

  7. rnIMhGAu6rBobbHn
    rnIMhGAu6rBobbHn
    tLvGBotUhFJdETVn

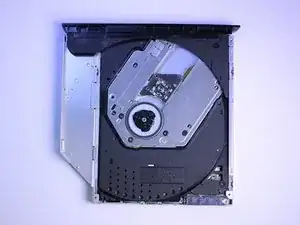

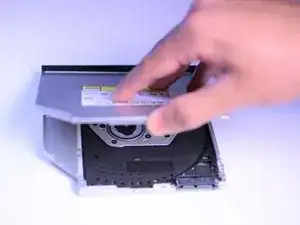

    • Lift metal cover gently, using the tab like indent located where the arrow is pointed.

    • This should expose the inside of the CD drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
