MSI GT72 2QE Dominator Pro Fans Replacement

Geschrieben von: Michael Petralia
  • Kommentare: 0
MSI GT72 2QE Dominator Pro Fans Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

If you experience any issues with fans not working properly or not functioning at all, this guide will help you remove them from the computer for inspection or replacement.

  1. HB4RORoQIMKKKbTi

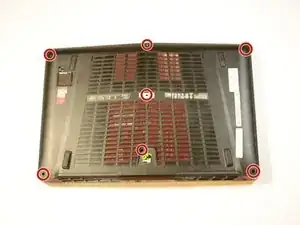

    • Remove the seven 6 mm Phillips #00 screws on the back cover of the laptop with the PH0 Bit screwdriver.

    • Every screw in this guide can be removed with the same PH0 Bit screwdriver.

  2. RHkC3AD1iaCf354i

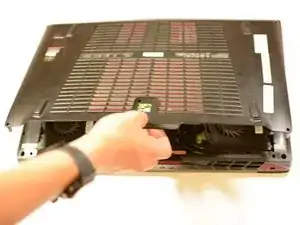

    • Lift the back cover off by lifting by the tab on the bottom of the cover as indicated.

  3. pvbxeOWrjO4TH36P
    pvbxeOWrjO4TH36P
    i4ohCEbpNYfhvAMF

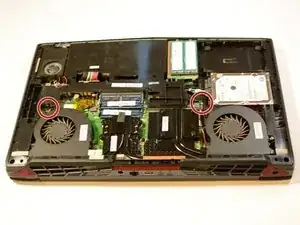

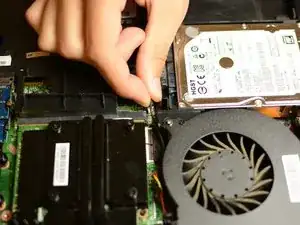

    • Detach the two indicated wires by pulling upward on them.

  4. 51iTvUObc6QrmJsZ

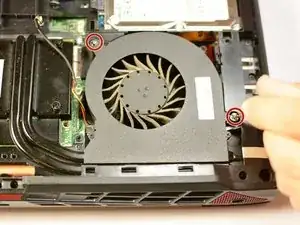

    • Unscrew a total of four 10mm Philips #00 screws (two screws per fan) as indicated.

Abschluss

To reassemble your device, follow these instructions in reverse order.
