MSI GT72 2QE Dominator Pro Hard Drive and SSD Replacement

Geschrieben von: Colin Harrop
  • Kommentare: 1
MSI GT72 2QE Dominator Pro Hard Drive and SSD Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

Is your computer running out of storage? Did your hard drive or SSD fail and need to be replaced? Follow this guide to replace the hard drive and SSD in the MSI Dominator GT72 2QE.

  1. HUCITWZLHkoXMagN
    HUCITWZLHkoXMagN
    Bu1v5JFLQNdrQ1Wi

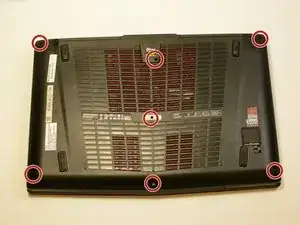

    • Remove the seven 6mm #0 Phillips Head screws on the bottom of the device.

    • Remove the bottom to access the inside.

  2. K2tQSbmaESPL4o2y
    K2tQSbmaESPL4o2y
    DXwWxDpqQA2YUiYE

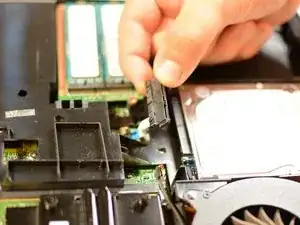

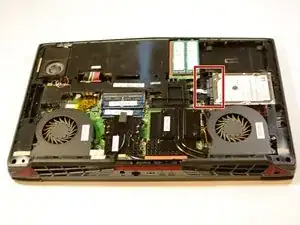

    • Disconnect the SATA cable from the hard drive.

  3. iJWKgiNIMjMFfCEo

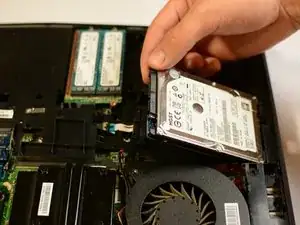

    • Pull out the hard drive.

  4. 4tpbigKlhjierDHJ
    4tpbigKlhjierDHJ
    Z2POHbXFfLVTA5Xt

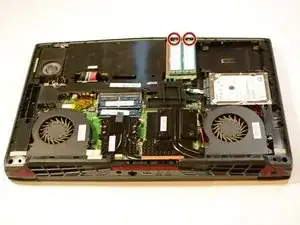

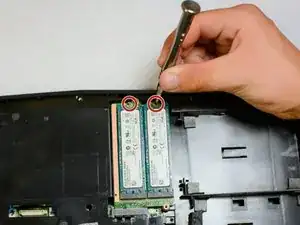

    • Remove the two 6mm #0 Phillips head screws securing the two SSDs.

  5. 5K3AQGbxaZALXXBu

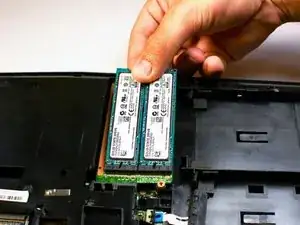

    • Pull the SSDs away from its slot.

    • Be sure to pull parallel to the PCB. Do not pull upward at an angle.

Abschluss

To reassemble your device, follow these instructions in reverse order.
