Einleitung

The battery is the energy source for this computer. A battery can loose the about of charge that can be obtained over time. This will lead to the need of a new battery.

  1. 4npAJtP1piDL1hf2
    • Remove the four screws from the back cover using the Phillips #0 screwdriver. Screws are 0.5 inches long.

  2. GvGUWOEAHNifQcRk
    GvGUWOEAHNifQcRk
    WlcUfEpK2TvEEuEQ

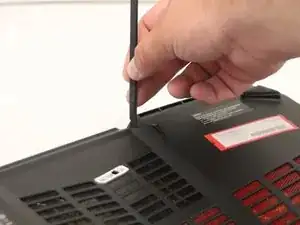

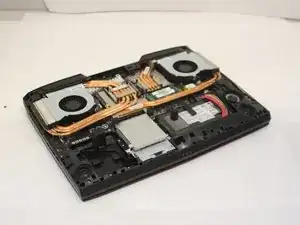

    • Pop off the back cover of the laptop using the black nylon spudger.

  3. JW2gatSYwPgUyAJv
    JW2gatSYwPgUyAJv
    vrLZXZqY4W4PqlBD
    gGanKNVYXZSPv2MT

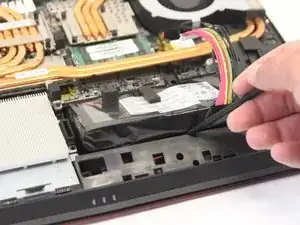

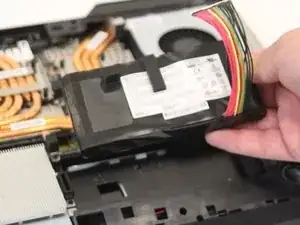

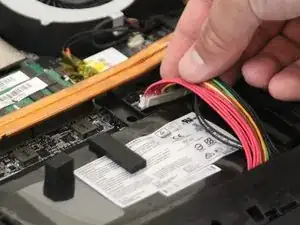

    • Unplug the battery, then using the black nylon spudger, carefully remove it from the laptop. It is held down by an adhesive, but can be safely removed without damaging the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
