Einleitung
Central processing units and Graphic processing units can be a crucial component to your computer system. Both of these units can help with the overall display and speed of the computer. Over time CPU and GPU will become outdated or be corrupted. This will lead to the replacement of the CPU and GPU.
Werkzeuge
-
-

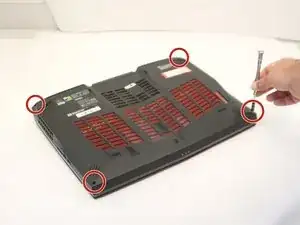

Remove the four screws from the rear laptop cover using the Phillips #0 screwdriver. The screws are 0.5 inches long.
-

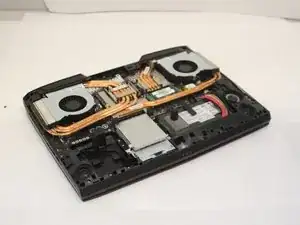

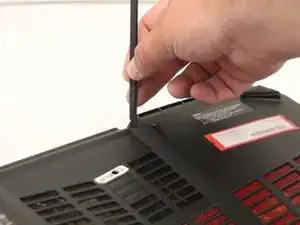

Use the black nylon spudger to pry the cover off the laptop.
-
-
-

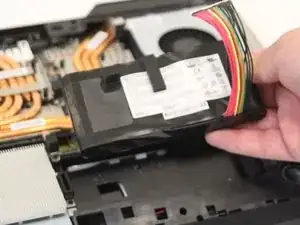

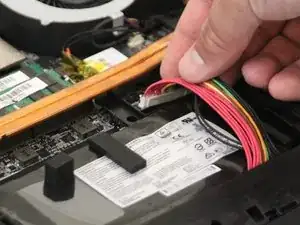

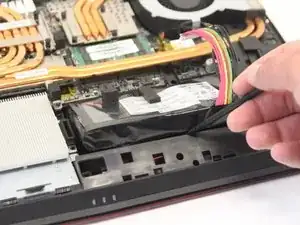

Unplug the battery plug from the unit. Lift the battery out of the housing by prying it from the adhesive using the black nylon spudger.
-
-
-

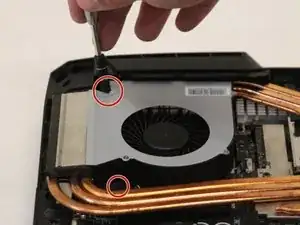

Remove the screws using the Phillips #0 screwdriver. Disconnect the left side fan from the unit as shown. The screws are 0.25 inches long.
-
-
-

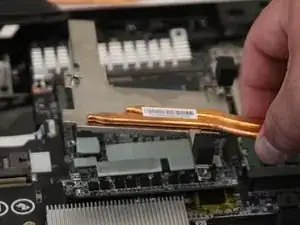

Unscrew the CPU cooling plate using the Phillips #0 screwdriver. Lift the cooling pipes away from the unit. Screws are 0.15625 inches long.
-
-
-
Unscrew both standoff nuts from the chip using the Phillips #0 screwdriver. Then lift and remove the unit from the laptop.
-
To reassemble your device, follow these instructions in reverse order.
