MSI GT75VR 7RF Titan Pro RAM Card Replacement

Geschrieben von: Jack Crumpton
  • Kommentare: 0
MSI GT75VR 7RF Titan Pro RAM Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

RAM (Random Access Memory) is a crucial component to your computer system. Sometimes, a RAM card can become corrupted. To fix this, the corrupted RAM card must be replaced.

  1. TRRpBZ2urNKnEAfV

    • Unscrew each of the four screws using the Phillips #0 head on the back of the laptop case. The screws are 0.5 inches in length.

  2. aWeGffTgtPXg5YIN
    aWeGffTgtPXg5YIN
    sEUSijnYeY5CEHkq

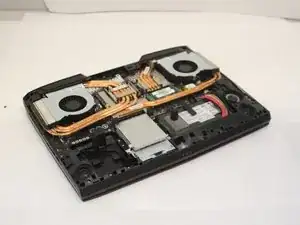

    • Pop the back cover off of the laptop using the black nylon spudger.

  3. oEMwWKRAmxrPSTKi

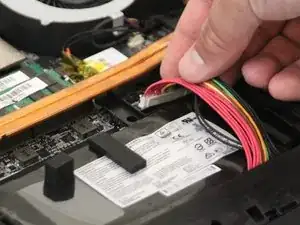

    • Disconnect the battery cable.

  4. 1a6aE2J3vYEZ3mFu
    1a6aE2J3vYEZ3mFu
    oguxdsRJ25W4dpCP

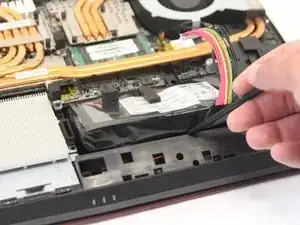

    • Pry the battery pack up with the black nylon spudger.

  5. gFBPullDViAjdkhm

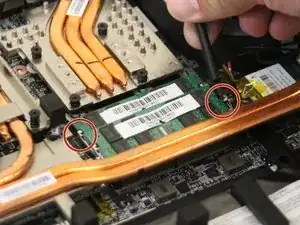

    • Pop the metal tabs on each side of the RAM using the black nylon spudger.

  6. tORGIGfGR3DKVES1

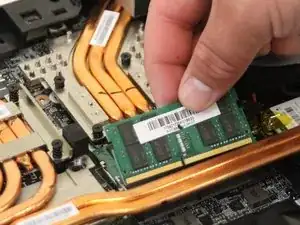

    • Lift and remove RAM card by hand. Replace each RAM card and test them individually. If your computer encounters a RAM error with only one card inserted, you can confirm that card is corrupted.

Abschluss

To reassemble your device, follow these instructions in reverse order.
