Mac Pro 2009-2012 PCIe Card/GPU Replacement

Geschrieben von: Taylor
  • Kommentare: 1
Mac Pro 2009-2012 PCIe Card/GPU Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 15 Minuten

Einleitung

Removing a PCIe or GPU from this version of the Mac Pro isn’t as simple as pulling the card out of the PCIe slot.

Werkzeuge

  1. Rs5dJOICxoQHuPHR

    • Lift the latch

    • Remove the side panel

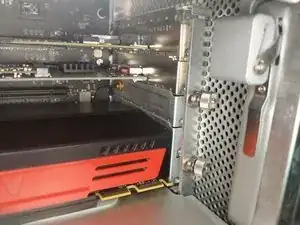

  2. TgmHCLWobJ6QHmKO
    TgmHCLWobJ6QHmKO

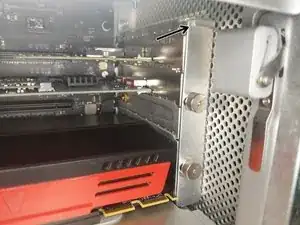

    ETnTEenmaBOTPghe

    • The screws are spring-mounted and will stay attached to the cover. You can remove them by hand, although a screwdriver may be needed to start.

    • When reassembling, pay attention to the notch at the top. The cover should slide into this notch.

  3. uYeOG6aQ4CC4RkQR
    uYeOG6aQ4CC4RkQR

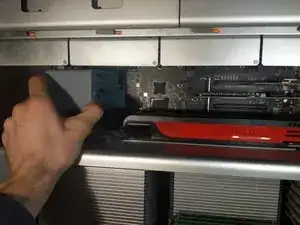

    AJGEPbdpQ6AIAlki
    3K4h4jHXwqBUnt3n

    • If the card is long enough to reach the slots in the fan casing, or the card is hooked into the lock bar next to the PCI ports, you need to slide the cover on the fan casing over.

    • Press the release button and slide the casing to the left.

    • This also moves the lock bar.

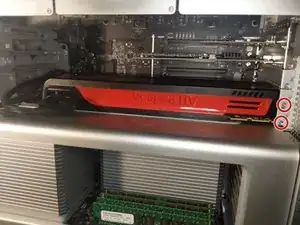

  4. FnQ5JvrRx656iuc2
    FnQ5JvrRx656iuc2

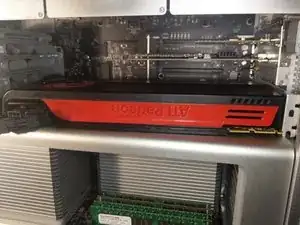

    DEYlwXJa6Xi6GVGf

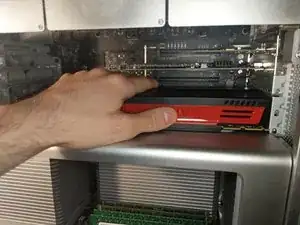

    T6Vaym56Xg3XtSHu

    • Pull the card straight out

    • When reinstalling the card, make sure the bracket fits over the screw threads.

    • Don't wiggle it! if you do so then you might damage the card or the slot

Abschluss

To reassemble your device, follow these instructions in reverse order.
