Mac Pro 2009-2012 RAM Replacement

Geschrieben von: Ben Capehart
  • Kommentare: 0
Mac Pro 2009-2012 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

15 - 35 Minuten

Einleitung

Replace faulty sticks of RAM

  1. FeMVEeIJNOe4n4Mc
    FeMVEeIJNOe4n4Mc
    k54ceqhvqDsHLKXe

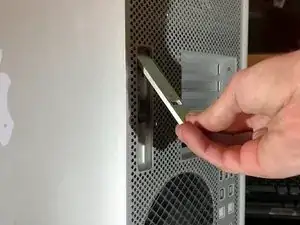

    • Lift the latch at the back of the computer

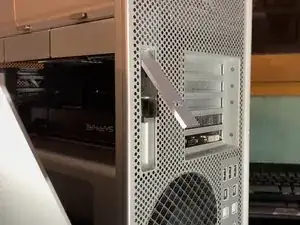

    • Lift the side panel

  2. nGPcjIsLELXjskLv
    nGPcjIsLELXjskLv
    udukHDI4BTFxSy1Y

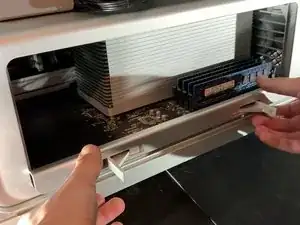

    • Press both latches to unlock the bracket and then pull it towards you

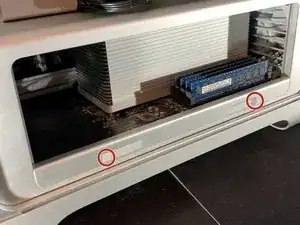

    • Press where you see the circles

    • You shouldn't need to apply much force.

    • Push the RAM tabs down to release the RAM

    • When reinstalling the RAM it will take some force to install it properly!

    • Repeat this step for each stick of RAM you want to replace.

  4. XmhMKsEA14EswoCn
Abschluss

To reassemble your device, follow these instructions in reverse order.
