Mac Pro First Generation Optical Drive Replacement

Geschrieben von: Derek Chan
  • Kommentare: 6
Mac Pro First Generation Optical Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

Replacing the optical drive is straight forward and all you need is a Phillips head screw driver. Use this guide to replace the optical drive in your Mac Pro.

  1. cEDWwTZjJYSX5sGM

    • Lift the lever to unlock the case

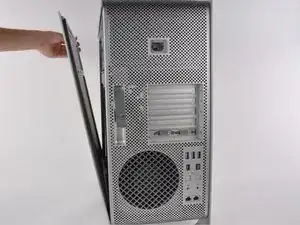

  2. vdm1IYuMVNiViPrw

    • Remove the side panel of the Mac Pro

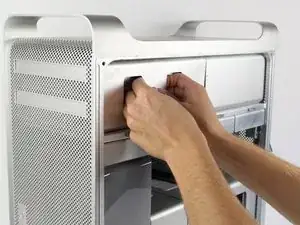

  3. Zu4EW5aKnMdvhDjN
    Zu4EW5aKnMdvhDjN

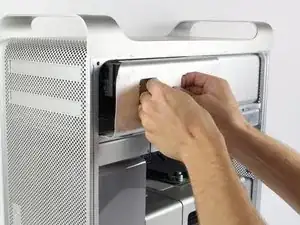

    jEtlGbrOPXOdeH3M
    yxhnDVf1ewAuQwAi

    • Firmly grasp the handles of the shown compartment and pull out firmly to remove the optical drive bay.

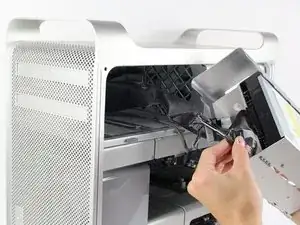

  4. WbJSZyIQDwfWr1W2

    • Firmly hold each of the two connectors and pull them out of their respective sockets.

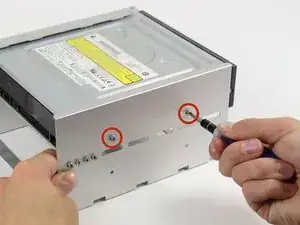

  5. nSF1oWIphycCkytq
    nSF1oWIphycCkytq
    rHHi1jfn3qMSBviJ

    • Unscrew the shown two 6-32 type screws on each side of the optical drive.

  6. 6IWMgrU1RZFAXYqT
    6IWMgrU1RZFAXYqT
    egypHLfvP4B42rGi

    • Firmly grasp the optical drive and pull it out of its enclosure.

Abschluss

To reassemble your device, follow these instructions in reverse order.
