Mac mini Modell A1283 Festplatte tauschen

Geschrieben von: Walter Galan
  • Kommentare: 8
Mac mini Modell A1283 Festplatte tauschen

Schwierigkeitsgrad

Mittel

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

  1. LabJISav3BcETXBK

    • Entferne die beiden Kreuzschlitzschrauben, mit denen die Unterseite der Festplatte am inneren Rahmen befestigt ist.

    These are JIS screws. A J1 bit will fit better than a PH1 bit.

    michael -

  2. KCTQRuPqBpDtFGBE

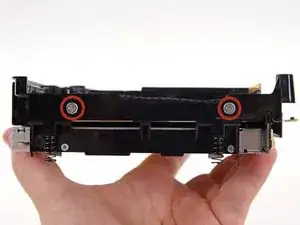

    • Entferne die beiden Kreuzschlitzschrauben, mit denen die Festplatte seitlich am inneren Rahmen befestigt ist.

  3. pPVfOBo65SFssah6

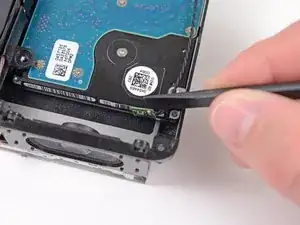

    • Der Thermosensor ist an der Seite der Festplatte verklebt. Heble ihn mit dem flachen Ende des Spudgers ab.

  4. mup6blbSvghMwkiA

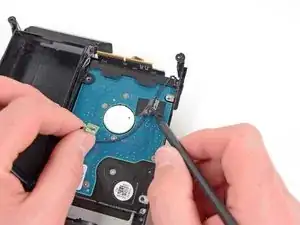

    • Löse das Klebeband, mit dem das Kabel zum Thermosensor an der Festplatte befestigt ist und entferne den Thermosensor.

    • Du musst den Thermosensor an der gleichen Stelle der neuen Festplatte befestigen.

  5. KajNsDKnMC2cGQ3B
    KajNsDKnMC2cGQ3B
    AyjCnDnWgb6ZPvD3

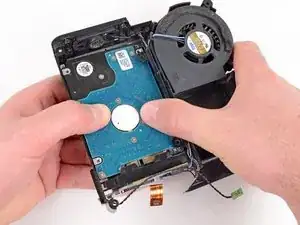

    • Schiebe die Festplatte in Richtung des Lautsprechers und trenne sie von der Verbindungsplatine ab.

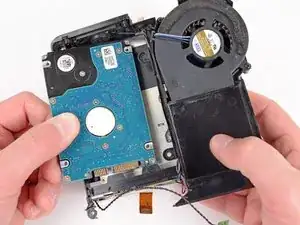

    • Hebe die Festplatte an der Kante gegenüber vom Lüfter hoch und entferne sie vom inneren Rahmen.

    To reinstall drive, hold the internal frame upside down. This will make it easier to align the connector.

    eric -

    It was super frustrating getting the drive aligned, and when It finally did align, I forgot about the temperature sensor and managed to yank the wire out of the board. Hopefully I can adjust the fans manually and not have to reattach the wire, which doesn't really appear possible.

    Anyone ever do it?

    I wonder if the wire was the cause of my issue from the beginning, as now that the wire is gone, the drive slips right into place. So, if you're having difficulty getting the drive connected, make sure the temp sensor wire is out of the way.

    maccentric -

    So, looking back, I now see that the sensor cable routs on top of the drive, not underneath.

    maccentric -

    When putting a new drive in you need the spudger to hold the bottom of the drive in place though the side opening while you slide it into the sata connectors with your hand or a dull side of a screw driver. It wont damage anything [edit] (the spudger through the side hole) although it seems like you're forcing it. I did it twice because of the same problem with the wire getting caught. Rather than pull on the wire I just removed the drive and realigned the sensor. It's easy with the spudger.

    maxcsmith -

    It's really not that hard getting the new drive in and avoiding the wire. Move the wire out of the way! Drop the drive in, at an angle under the screw holes adjacent to the fan. Slide along the bottom until it touches the end where the connector is. Turn upside down and push in.

    Andy D -

    عالی بود ممنونم

    Hamid Sayadi -

Abschluss

Um dein Gerät wieder zusammenzubauen, folge den Schritten in umgekehrter Reihenfolge.
