MacBook Air 11" Late 2010 AirPort/Bluetooth Card Replacement

Geschrieben von: Andrew Bookholt
  • Kommentare: 3
MacBook Air 11" Late 2010 AirPort/Bluetooth Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

Use this guide to replace your MacBook Air's AirPort/Bluetooth card.

  1. uo5A23aHopMrm6Tb

    • Before proceeding, close your computer and lay it on a soft surface top-side down.

    • Remove the following ten screws:

    • Two 8 mm 5-point Pentalobe screws

    • Eight 2.5 mm 5-point Pentalobe screws

    • The special screwdriver needed to remove the eight 5-point Pentalobe screws can be found here.

    I recommend that one of the tools you obtain is a jeweler's loupe that mounts on your glasses. It makes things easier.

    blairweaver -

    This is not correct. You need the pentalobe tool at this point.

    Duane Hellums -

  2. vf5kY5uHWndMVbCQ

    • Wedge your fingers between the display and the lower case and pull upward to pop the lower case off the Air.

    • Remove the lower case and set it aside.

  3. kJXAIQIc2ttunkmD
    kJXAIQIc2ttunkmD
    PEfGcN6TkY3BsldX

    • In this step you will disconnect the battery to help avoid shorting out any components during service.

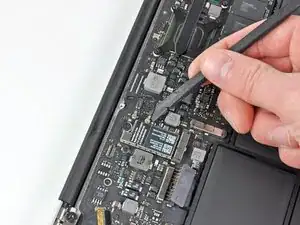

    • Use the flat end of a spudger to pry both short sides of the battery connector upward to disconnect it from its socket on the logic board.

    • Bend the battery cable slightly away from the logic board so the connector will not accidentally contact its socket.

  4. bMBmhJrfJOpv2GSR
    bMBmhJrfJOpv2GSR
    Iw4Ha2XmbXSIsbZ5

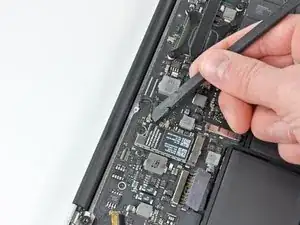

    • Use the flat end of a spudger to pry both antenna connectors up from their sockets on the AirPort/Bluetooth card.

  5. AZxZBdVlk3AIqnjq

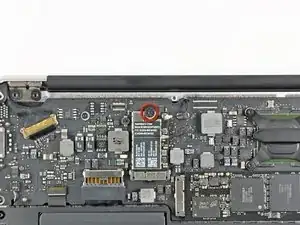

    • Remove the single 2.9 mm T5 Torx screw securing the AirPort/Bluetooth card to the logic board.

  6. TGtiijvuPSMSVrhV
    TGtiijvuPSMSVrhV
    RQhL2A3N6SjJH2Pu

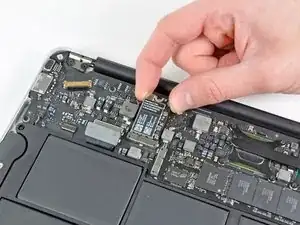

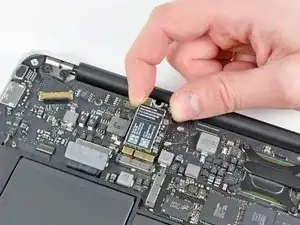

    • Slightly lift the free end of the AirPort/Bluetooth board and pull it out of its socket on the logic board.

    • Remove the AirPort/Bluetooth board from the Air.

Abschluss

To reassemble your device, follow these instructions in reverse order.
