MacBook Air 11" Late 2010 I/O Board Replacement

Geschrieben von: Andrew Bookholt
  • Kommentare: 8
MacBook Air 11" Late 2010 I/O Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

19

Zeitaufwand

Keine Schätzung

Einleitung

Use this guide to replace the I/O board to remedy a broken headphone jack, left USB port, or MagSafe DC-In socket.

  1. uo5A23aHopMrm6Tb

    • Before proceeding, close your computer and lay it on a soft surface top-side down.

    • Remove the following ten screws:

    • Two 8 mm 5-point Pentalobe screws

    • Eight 2.5 mm 5-point Pentalobe screws

    • The special screwdriver needed to remove the eight 5-point Pentalobe screws can be found here.

    I recommend that one of the tools you obtain is a jeweler's loupe that mounts on your glasses. It makes things easier.

    blairweaver -

    This is not correct. You need the pentalobe tool at this point.

    Duane Hellums -

  2. vf5kY5uHWndMVbCQ

    • Wedge your fingers between the display and the lower case and pull upward to pop the lower case off the Air.

    • Remove the lower case and set it aside.

  3. kJXAIQIc2ttunkmD
    kJXAIQIc2ttunkmD
    PEfGcN6TkY3BsldX

    • In this step you will disconnect the battery to help avoid shorting out any components during service.

    • Use the flat end of a spudger to pry both short sides of the battery connector upward to disconnect it from its socket on the logic board.

    • Bend the battery cable slightly away from the logic board so the connector will not accidentally contact its socket.

  4. 5aENfdl3E5XdeQJV

    • Remove the single 2.9 mm T5 Torx screw securing the SSD to the logic board.

    What happens if the 2.9mm t5 screw got stripped?

    Charles -

    So when i change my ssd in mac do i have to reinstall Mac OS

    sai prahalad Alluri -

    Correct, the SSD does not come with OS preinstalled. To install the OS you can completely clone your existing hard drive or you will need to create a bootable flash drive and format your SSD and create a partition in order to be able to install the OS.

    Ethan Lockwood -

    So my wife spilled a Martini on her MacAir and it no longer works and is not repairable, all her music and pictures are stored on the drive, I would like to transfer these files to another drive. What is needed to read the drive once removed?

    prastonis -

  5. FimXaw5VmQdSYNxg
    FimXaw5VmQdSYNxg
    YATObsMvWx2G3sHe

    • Use a spudger to help lift the free end of the SSD just enough to grab it with your other hand.

    • Do not lift the end of the SSD excessively.

    • Pull the drive straight out of its socket and remove it from the logic board.

    • When reinstalling the SSD, be sure it is properly seated before reinstalling its retaining screw.

    I performed all the steps above and fitted a Transcend JetDrive 500 which was very easy however when I re-assembled and turned on all I get is a question mark in the middle of the screen, can you explain if I did anything wrong?

    Ian Ashton -

  6. KrJtH4yOdBDMPJhI

    • Use the flat end of a spudger to pry the I/O board cable connector upward out of its socket on the I/O board.

  7. 35xfcpjPbeSIZ5ZN

    • The following connector has an especially deep socket. Use care when disconnecting it.

    • While gently pulling the I/O board cable upward near its connection to the logic board, use the tip of a spudger to pry upward on alternating sides of the connector to help "walk" it out of its socket.

    • Remove the I/O board cable.

  8. xve5Ltld65SGv1xf

    • Use the tip of a spudger to carefully flip up the retaining flap on the fan cable ZIF socket.

    • Be sure you are prying up on the hinged retaining flap, not the socket itself.

  9. ZUXtZhJgJedv2kYI

    • Remove the following three screws securing the fan to the upper case:

    • Two 5.2 mm T5 Torx screws

    • One 3.6 mm T5 Torx screw

  10. jPAl5EPbAcqtLVkW

    • Lift the fan out of the upper case and carefully pull the fan ribbon cable out of its socket as you remove it from the Air.

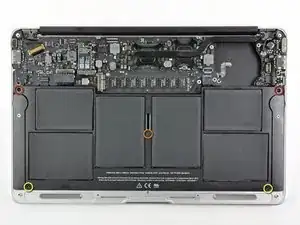

  11. hsX5axHgpGSevgMQ

    • Remove the following five screws securing the battery to the upper case:

    • Two 5.2 mm T5 Torx screws

    • One 6 mm T5 Torx screw

    • Two 2.6 mm T5 Torx screws

  12. gUf2BOJ3qMAv6SQA

    • Do not touch or squeeze the six lithium polymer cells when handling the battery.

    • Lift the battery from its edge nearest the logic board and remove it from the upper case.

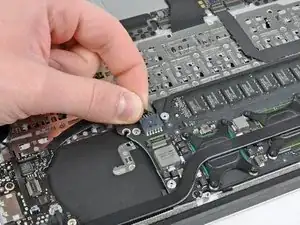

  13. VVQRXOux1DVENwLl

    • Disconnect the I/O board by pulling the power cable away from its socket on the logic board.

    • Pull the cable parallel to the face of the logic board toward the front edge of the Air.

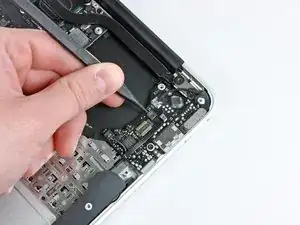

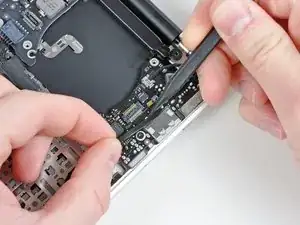

  14. WikmTNCDNhJphGsk
    WikmTNCDNhJphGsk
    jhoE6wtyIO5xVOw2

    • Use the tip of a spudger to carefully flip up the retaining flap on the microphone cable ZIF socket.

    • Be sure you are prying up on the retaining flap, not the socket itself.

    • Pull the microphone ribbon cable straight out of its socket.

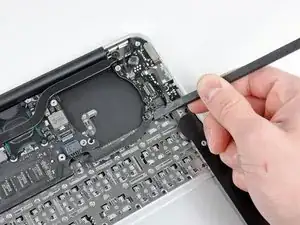

  15. bix45NP4urxeP3K1

    • Use the flat end of a spudger to pry the left speaker cable connector up and out of its socket on the I/O board.

    • Pry up from beneath the wires.

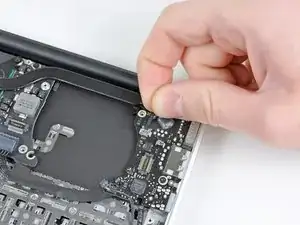

  16. SXMp2waM1CfMoXRX

    • Pull the camera cable parallel to the face of the I/O board toward the rear edge of the Air to disconnect it from its socket.

    • Do not lift upward on this cable as you disconnect it, as its socket may break off the logic board.

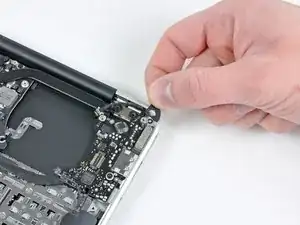

  17. tRHjTkpqW3eVNdCl

    • Remove the small rubber gasket from the corner of the upper case nearest the I/O board.

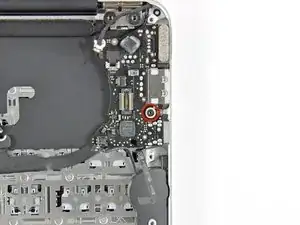

  18. OC62qF5y5xsAnwUL

    • Remove the single 3.6 mm T5 Torx screw securing the I/O board to the upper case.

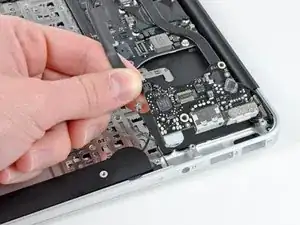

  19. hZFuKlodVEKmne3q

    • Carefully lift the I/O board from its edge nearest the logic board and remove it from the upper case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
