MacBook Air 11" Late 2010 Left Speaker Replacement

Geschrieben von: Andrew Bookholt
  • Kommentare: 7
MacBook Air 11" Late 2010 Left Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

Use this guide to replace a blown speaker on the left side of your MacBook Air.

  1. uo5A23aHopMrm6Tb

    • Before proceeding, close your computer and lay it on a soft surface top-side down.

    • Remove the following ten screws:

    • Two 8 mm 5-point Pentalobe screws

    • Eight 2.5 mm 5-point Pentalobe screws

    • The special screwdriver needed to remove the eight 5-point Pentalobe screws can be found here.

    I recommend that one of the tools you obtain is a jeweler's loupe that mounts on your glasses. It makes things easier.

    blairweaver -

    This is not correct. You need the pentalobe tool at this point.

    Duane Hellums -

  2. vf5kY5uHWndMVbCQ

    • Wedge your fingers between the display and the lower case and pull upward to pop the lower case off the Air.

    • Remove the lower case and set it aside.

  3. u5KG4BiqM4HZZFQ3
    u5KG4BiqM4HZZFQ3
    oUt4Qk6rflrgWUkv

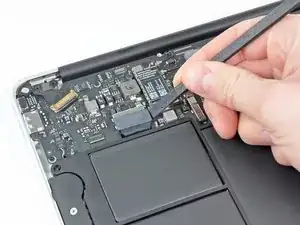

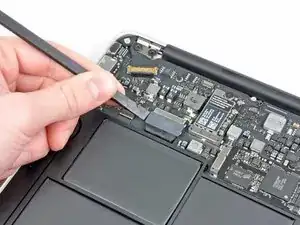

    • Use the flat end of a spudger to pry both short sides of the battery connector upward to disconnect it from its socket on the logic board.

    • Bend the battery cable slightly away from the logic board so the connector will not accidentally contact its socket.

    This is the same as step 3 isn't it?

    No Name -

  4. oPDIiZeEiNTcM1PS

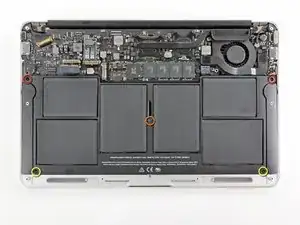

    • Remove the following five screws securing the battery to the upper case:

    • Two 5.2 mm T5 Torx screws

    • One 6 mm T5 Torx screw

    • Two 2.6 mm T5 Torx screws

    Don’t be like me! Make sure you use the *other* screw driver, not the one you took the case off with. I got five of them out with the wrong screwdriver, stripped the head on the sixth, got it out with a screw extractor, cut a new slot in it so I could use a normal flat head screw driver on it to put it back in, and then realized….

    Sarah Stockton -

  5. ZARkQJb4O5dGXWDb

    • When handling the battery, avoid squeezing or touching the six exposed lithium polymer cells.

    • Lift the battery from its edge nearest the logic board and remove it from the upper case.

    • If you're installing a new battery, you should calibrate it after installation:

    • Charge it to 100%, and then keep charging it for at least 2 more hours. Next, unplug and use it normally to drain the battery. When you see the low battery warning, save your work, and keep your laptop on until it goes to sleep due to low battery. Wait at least 5 hours, then charge your laptop uninterrupted to 100%.

    • If you notice any unusual behavior or problems after installing your new battery, you may need to reset your MacBook's SMC.

    I need to point out here that the replacement battery that I bought here at iFixit for this MacBook Air says that the battery calibration consists on draining the battery below 10%, then charging it uninterruptedly to 100%, but this is not consistent with the battery calibration that appears on this guide. Which one should I follow? Any additional thoughts on this? Thanks.

    Rafael Pérez -

    Hi Rafael,

    We updated our battery calibration technique recently. The most reliable way would be to follow the guide method (charge full + 2 hours, drain completely, charge full again).

    Arthur Shi -

    This was wonderfully easy-peasy! I just have one small suggestion: you might add a word (and a photo would be great), reminding folks that they need to connect the new battery connector. I know, it should (ok, it is! :) obvious and all… but I have to admit, after having my hand held so well through the rest of the process, having to engage brain again and realize that needed to be done (“what’s missing here?”) - took a moment. It was a bit nervous-making, too, since the new battery cable was quite stiff, resistant to bending, and I had to apply a wee bit of brute force and ignorance to position and connect the connector. Adding a note about that might be useful. Just a thought! Otherwise, super easy and straight forward - I feel so empowered! :)

    Suzanne Bell -

  6. CMn1lZiX2eMAxrGh

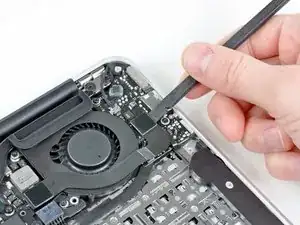

    • Use the flat end of a spudger to pry the I/O board cable connector upward out of its socket on the I/O board.

  7. XDujxZF6ThX5Lc6U
    XDujxZF6ThX5Lc6U
    btXhtIeNBSfe3tRG
    PYpRTcvjf5mDrqoq

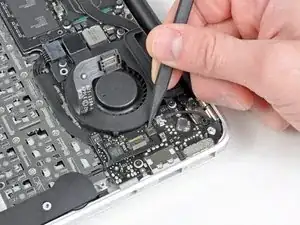

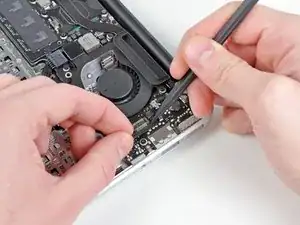

    • Use the tip of a spudger to flip up the retaining flap on the microphone ribbon cable ZIF socket.

    • Be sure you are prying up on the hinged retaining flap, not the socket itself.

    • Pull the microphone ribbon cable straight out of its socket.

  8. KZhZjlTlPlijgHYB

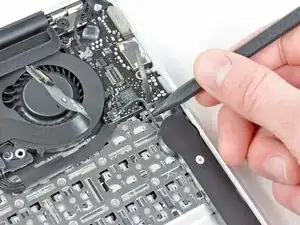

    • Use the tip of a spudger to de-route the left speaker cable from the notch cut into the edge of the I/O board.

  9. cBPsIMqO6xw1Guox

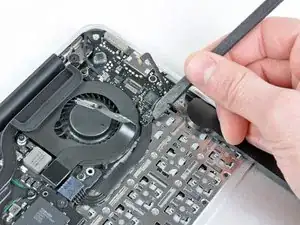

    • Use the flat end of a spudger to pry the left speaker connector up and out of its socket on the I/O board.

    • Pry upward from beneath the wires.

  10. EZ2VbVrF2AUhVWUD
    EZ2VbVrF2AUhVWUD
    OU5JxFCNQMqSpRMp

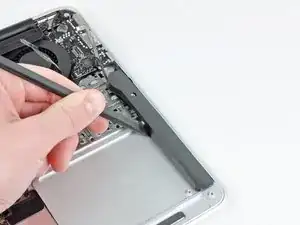

    • Use the flat end of a spudger to pry the left speaker off the adhesive securing it to the upper case.

    • Only pry up on the speaker from the areas of bare aluminum on the upper case. Prying up from the keyboard area may damage the keyboard and the speaker itself.

    • Remove the left speaker from the upper case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
