MacBook Air 13" Bluetooth/Wifi Antenae /Webcam /Display Cable/Hinge Replacement

Geschrieben von: Emmett Normand
  • Kommentare: 1
MacBook Air 13" Bluetooth/Wifi Antenae /Webcam /Display Cable/Hinge Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

The MacBook Air hinges house the Webcam, Wifi/Bluetooth Antennae and the Display Connectors within them. This guide will show you how to remove the bezel and replace the hinges and also replace these connectors.

  1. mcJQTVTJFNTuVHyH

    • Slide the plastic chin to the right and off the display.

  2. GqJcGM2SnOVeVmMx
    GqJcGM2SnOVeVmMx
    FQSimQcjbnHVB5Ge

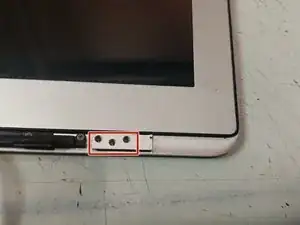

    • Remove the three T8 torx screws from the bracket

    • This screw hole pattern is different for older MacBook Airs

  3. 4FOCHiiIHEiie3RM
    4FOCHiiIHEiie3RM
    flEUnp6HSpmw44Xn
    6niElc2gGARRHJQH

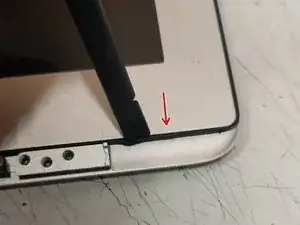

    • Remove the gasket that runs along the perimeter of the display. You can use a spudger to pry up the bezel and tweezers to pull it out.

    • Be careful to not tear your gasket

    • Apply Heat to loosen the adhesive, in a pinch you do not necessarily need it; but it always helps with adhesives.

    • Begin Prying from the right corner as pictured.

    • The Webcam and Antennae are under the left side of the bezel.

  4. WLAJbvDiI6riQ63i
    WLAJbvDiI6riQ63i
    NhgjBQiNk5oFldXe

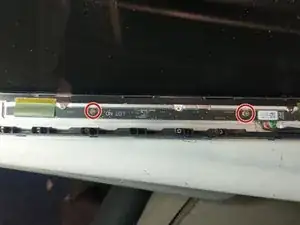

    • Remove the two PH000 screws holding in the LCD board in

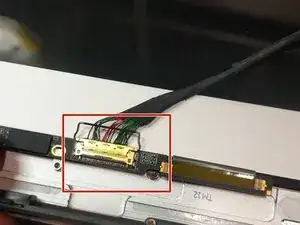

    • To replace the display connection you can open the retaining latch and disconnect the cable.

    • If you're replacing the Webcam/ Wifi Antennae Continue on to the next step.

  5. I1lOGNS6EetXcUU2
    I1lOGNS6EetXcUU2
    EtLFx6RFfSXMwVbN
    IXiZwC1lRiT2OTXZ

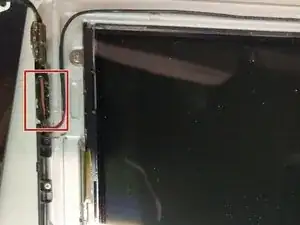

    • If you're just replacing your Webcam skip this step

    • Remove the three T8 Torx screws

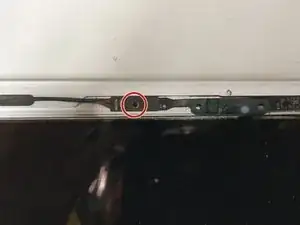

    • Remove the PH000 screw

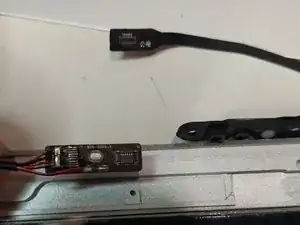

    • Flip the board over and disconnect it.

    • The Wifi / Bluetooth / Webcam cable can now be removed and replaced.

  6. sZl3TtjIWIdSgK5p

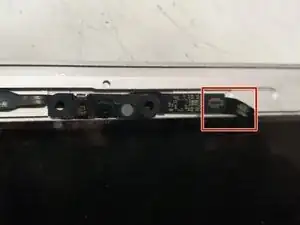

    • Disconnect your webcam connection,

    • The webcam is held in by the bezel and a small bit of adhesive on the backside of the webcam

Abschluss

To reassemble your device, follow these instructions in reverse order. I recommend cleaning it with alcohol and using VHB tape for glueing the bezel back on.
