Einleitung
prereq for removing IO board side display screws and heatsink screw
-
-

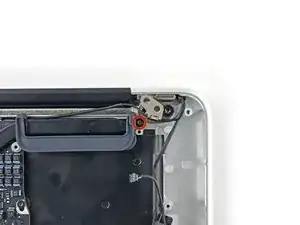

Remove the two 5.6 mm T8 Torx screws securing the antenna cable retainer on the left display hinge to the upper case.
-
-
-

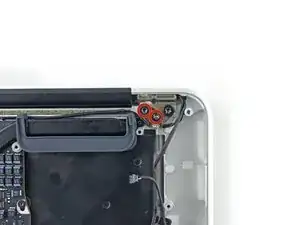

Push the antenna cable retainer out of the way and remove the single 3 mm T5 Torx screw securing the end of the heat sink to the upper case.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
