Use this guide to replace the upper case of the 2019 MacBook Air, including the keyboard. This involves removing all the parts in the MacBook and transferring them to a new upper case. Make sure to keep track of screws and small parts so that they can be easily reinstalled in the new upper case.
Due to overlapping prerequisite guides, there are some repeated steps and inconsistencies in the photos. These are expected and do not effect the procedure. If you notice a repeated step, skip it and continue with the procedure.
To minimize risk of damage, turn on your MacBook and allow the battery to fully discharge before starting this procedure. A charged lithium-ion battery can be very dangerous if accidentally punctured. If your battery looks puffy or swollen, take extra precautions.
Do not reuse the battery if it is swollen or was deformed in any way during the procedure. The battery is likely damaged and can be very dangerous to reuse—it should be replaced.
This guide involves removing the speakers and battery. You will need new adhesive to reinstall the speakers and battery.
Werkzeuge
Ersatzteile
-
-
If your MacBook is running Big Sur v11.1 or later, disabling Auto Boot may not work. You can proceed normally, but make sure to disconnect the battery as soon as you're inside.
-
Use a P5 driver to remove the following screws:
-
Two 7.9 mm screws
-
Two 7.1 mm screws
-
Six 2.6 mm screws
-
-
-
Wedge your fingers between the display and the lower case and pull upward to pop the lower case off the Air.
-
Remove the lower case.
-
-
-
Peel back the tape covering the battery connector enough to reveal the connector underneath.
-
-
-
Use a spudger to slide the battery connector parallel to the logic board and out of its socket on the logic board.
-
-
-
Use a pair of tweezers to lift up the black adhesive pull tab at the bottom of the right speaker, enough so you can grab it with your fingers.
-
Grab the adhesive strip pull tab and slowly and carefully pull the adhesive strip out from under the speaker.
-
If the adhesive strip breaks, leave it in and proceed to the next step.
-
-
-
Slide the tip of a spudger underneath the right speaker cable and pry straight up to disconnect the speaker.
-
-
-
Use tweezers to lift the adhesive pull tab at the top of the right speaker enough that you can grab it with your fingers.
-
Grab the adhesive strip pull tab and slowly and carefully pull the adhesive strip out from under the speaker.
-
Apply heat to the speaker to soften the adhesive underneath.
-
Carefully slide a spudger or opening pick underneath the speaker to separate the adhesive.
-
-
-
Use a pair of tweezers to lift up the black adhesive pull tab at the bottom of the left speaker, enough so you can grab it with your fingers.
-
Grab the adhesive strip pull tab and slowly and carefully pull the adhesive strip out from under the speaker.
-
If the adhesive strip breaks, leave it in and proceed to the next step.
-
-
-
Slide the tip of a spudger underneath the left speaker cable and pry straight up to disconnect the speaker.
-
With the connector disconnected, slide the flat end of a spudger under the cable to separate the adhesive securing the cable to the logic board.
-
-
-
Use tweezers to lift the adhesive pull tab at the top of the left speaker enough that you can grab it with your fingers.
-
Grab the adhesive strip pull tab and slowly and carefully pull the adhesive strip out from under the speaker.
-
Apply heat to the speaker to soften the adhesive underneath.
-
Carefully slide a spudger or opening pick underneath the speaker to separate the adhesive.
-
-
-
Slide the tip of a spudger underneath the speaker cable and pry straight up to disconnect the speaker.
-
-
-
Use a T4 Torx driver to remove the three 1.4 mm screws securing the audio board cable bracket.
-
Remove the cable bracket.
-
-
-
Use the flat end of a spudger to pry the audio board connector straight up and disconnect it.
-
-
-
Use the flat end of a spudger to pry the Touch ID sensor connector straight up and disconnect it.
-
-
-
Slide the flat end of a spudger underneath the Touch ID sensor cable to slice through the adhesive securing it to the audio board.
-
-
-
Use the tip of a spudger to lift up the locking flap on the fan cable's ZIF connector.
-
Slide the fan cable out of the ZIF connector.
-
-
-
Slide an opening pick under the audio board cable to slice through the adhesive securing it to the fan.
-
-
-
Use a T3 Torx driver to remove the two 1.4 mm screws securing the antenna cable bracket.
-
Remove the antenna cable bracket.
-
-
-
Insert the point of a spudger under one of the antenna cables close to the connector.
-
Pry straight up to disconnect the cable.
-
Repeat for the other antenna cable.
-
-
-
Use a T3 Torx driver to remove the two 1.5 mm screws securing the display cable connector bracket.
-
Remove the display cable connector bracket.
-
-
-
Use a T5 Torx driver to remove the following screws:
-
Four 7.4 mm screws
-
Two 4.5 mm screws
-
-
-
Lift the antenna bar straight up and out of the case. Take care not to snag the antenna bar on any cables or connectors.
-
Remove the antenna bar.
-
-
-
Use a T9 Torx driver to remove the six 4.9 mm screws securing the display hinges to the upper case.
-
-
-
With the MacBook still screen-side down, carefully lift the upper case to open the MacBook as far as possible.
-
-
-
Lift the MacBook and carefully rotate the display to a 90 degree angle with the upper case.
-
Keeping the display at a 90 degree angle with the case, move the display straight down while holding the case still, so that the hinges slide out the bottom of the case.
-
-
-
Use a T3 Torx driver to remove the six 1.6 mm screws securing the Touch ID sensor and its bracket.
-
Remove the Touch ID bracket.
-
-
-
Turn the MacBook right-side up and open the display.
-
Lift the Touch ID sensor sensor out of its recess and remove it.
-
-
-
Use a T3 Torx driver to remove the two 1.4 mm screws securing the USB-C connector bracket.
-
Remove the USB-C connector bracket.
-
-
-
Use the flat end of a spudger to pry the USB-C cable connector up and out of its socket on the logic board.
-
-
-
Use a T3 Torx driver to remove the two 1.4 mm screws securing the trackpad connector bracket.
-
Remove the trackpad connector bracket.
-
-
-
Use the flat end of a spudger to pry the trackpad cable connector up and out of its socket.
-
-
-
Use a spudger to lift up the small locking flap on the sound board cable's ZIF connector.
-
Slide the sound board cable out of the ZIF connector.
-
-
-
Use a T5 Torx driver to remove the following screws:
-
One 5.5 mm screw
-
Three 2.6 mm screws
-
Two 1.9 mm screws
-
-
-
Carefully slide an opening pick under the trackpad cable to separate the adhesive securing it to the upper case.
-
-
-
Use the flat end of a spudger to lift the small locking flap on the trackpad ZIF connector.
-
Slide the trackpad cable straight out of its connector.
-
-
-
Carefully slide an opening pick under the trackpad cable to separate the adhesive securing it to the battery.
-
-
-
Use a T5 Torx driver to remove the following screws securing the trackpad:
-
One 3.2 mm screw
-
Eight 3.1 mm screws
-
-
-
With the laptop still lying screen-side down, carefully open the laptop. The trackpad will stay sitting on the display.
-
Remove the trackpad from the MacBook. Take care not to scratch the display.
-
-
-
Use the flat end of a spudger to lift the small locking flap on the trackpad's ZIF connector.
-
Slide the trackpad cable straight out of the ZIF connector.
-
-
-
Use a pair of tweezers to lift up the black adhesive pull tab on the side of the battery, enough so you can grab it with your fingers.
-
Grab the adhesive strip pull tab and slowly and carefully pull the adhesive strip out from under the battery.
-
If the adhesive strip breaks, leave it in and proceed to the next step.
-
-
-
Repeat the previous step to remove the next two adhesive strips on the same side of the battery.
-
If any adhesive strips break, leave them in and proceed to the next step.
-
-
-
Repeat the previous two steps to remove the three adhesive strips on the other side of the battery.
-
Carefully drip isopropyl alcohol along either edge of the battery, in the recessed part of the upper case, where the adhesive pull tabs were.
-
Let the alcohol soak into the adhesive for a minute or two.
-
Use opening picks to gently pry the battery away from the upper case.
-
-
-
Remove the battery.
-
Calibrate your newly installed battery: charge it to 100%, and keep charging it for at least 2 more hours. Unplug and use it normally to drain the battery. When you see the low battery warning, save your work, and keep your laptop on until it goes to sleep due to low battery. Wait at least 5 hours, then charge your laptop uninterrupted to 100%.
-
-
-
Slide an opening pick under the microphone farthest away from the edge of the case to slice through the adhesive securing it to the upper case.
-
-
-
Use the point of a spudger to lift the small locking flap on the microphone's ZIF connector.
-
Slide the microphone cable straight out of the ZIF connector.
-
-
-
Slide an opening pick under the rest of the microphone assembly cable to separate it from the adhesive securing it to the upper case.
-
-
-
Use the point of a spudger to carefully pry one of the microphones out of its recess in the upper case.
-
-
-
Use the point of a spudger to carefully pry the other microphone out of its recess in the upper case.
-
-
-

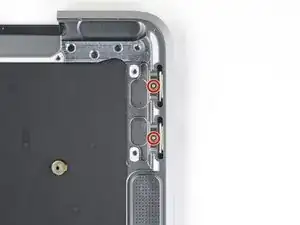

Use a P2 pentalobe driver to remove the two 1.1 mm screws securing the USB-C port brackets.
-
-
-

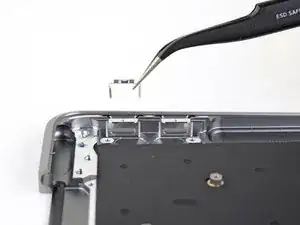

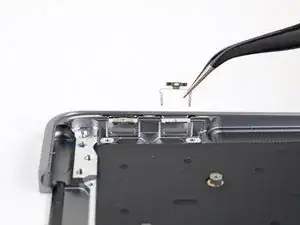

Lift the USB-C port brackets out of their recesses in the upper case and remove them.
-
Compare your new upper case to your old one and transfer over any remaining parts.
-
To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Check out our Answers community for troubleshooting help.
