MacBook Pro (15 Zoll, Anfang 2011, Unibody) Festplatte Austausch

Geschrieben von: Walter Galan

Kommentare: 4

MacBook Pro (15 Zoll, Anfang 2011, Unibody) Festplatte Austausch

Schwierigkeitsgrad

Mittel

Schritte

Zeitaufwand

Keine Schätzung

Einleitung

Dies ist nur eine grundständige Anleitung.

Werkzeuge

Kreuzschlitz PH00 Schraubendreher

Schritt 1

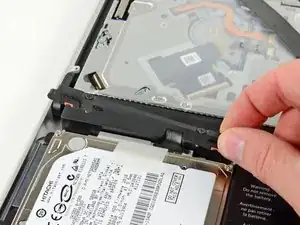

Die Halterung der Festplatte ist mit zwei Kreuzschlitzschrauben am oberen Gehäuse befestigt. Drehe sie heraus.
Diese beiden Schrauben bleiben in der Festplattenhalterung hängen.

love the attention to detail added to this step "screws are captive" thanks. :D

aaronmiller - 17/07/14

One of these screws has damaged thread and needs replacing - does anyone know what size they are so I can search and purchase a replacement?

Andy -

Schritt 2

Hebe die Halterung aus dem oberen Gehäuse.

Schritt 3

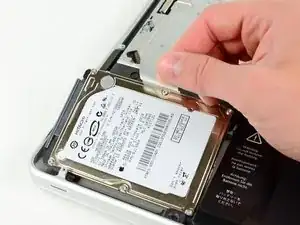

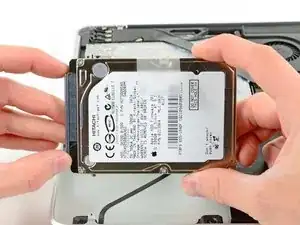

Hebe die Festplatte mit der Zuglasche an und entferne sie aus ihrem Sitz. Achte dabei auf das Kabel, mit dem sie noch mit dem Computer verbunden ist.

Schritt 4

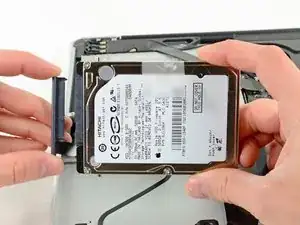

Entferne das Festplattenkabel, indem du seinen Verbinder direkt von der Festplatte abziehst.

I just replaced my hard drive; but I notice that my ribbon cable does not have pins for one of the three connection sections of the new hard drive. It is a new SSHD, hybrid drive from Seagate, while my Mac is early 2011.

Does this matter that the far right port on the hard drive does not actually connect electronically to the ribbon cable?

I have been having issues with the computer (since installation) suddenly shutting off/freezing (persistently) with the need to force shut down. When I turn it back on, it often starts up trying to initiate Internet Recovery.

However, after that is completed I am able to go to disk utility and select the new hard drive like it was always there.

I do not know if this is a function of a faulty hard drive, the ribbon, or something pricier; but it is getting worse.

Now it starts up to just a blue screen or white screen. I checked out the physical hard drive and somehow the ribbon cable had become bent and squished underneath it.

Could this be the source of all my problems?

Hunter Lindberg - 13/08/15

You might be referring to the four pin section that would be used for jumpers. These are a hold-over from older IDE hard drives, where the placment of a jumper on the corresponding pins would dedesignate a drive as either Master, Slave or, on newer iterations Cable Select. To my knowledge the pins are not used in most applications of SATA hard drives.

Michael - 11/04/16
