Einleitung
Folge dieser Anleitung, um dein Trackpad auszubauen, um es zu ersetzen, oder um an den Akku heranzukommen.
Entlade den Akku deines MacBook Pro aus Sicherheitsgründen auf unter 25%, bevor du anfängst. Ein geladenen Lithium-Ionen-Akku kann ein gefährliches und unkontrollierbares Feuer auslösen, falls er versehentlich perforiert wird.
-
-
Schalte deinen Mac ein und starte Terminal.
-
Kopiere den folgenden Befehl und füge ihn im Terminal ein (oder tippe ihn exakt so ein):
-
sudo nvram AutoBoot=%00
-
Drücke die Eingabetaste [return]. Wenn du dazu aufgefordert wirst, gib dein Administratorpasswort ein und drücke erneut [return]. Hinweis: die Return-Taste kann auch mit ⏎ oder "enter" gekennzeichnet sein.
-
sudo nvram AutoBoot=%03
-
-
-

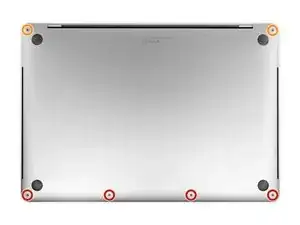

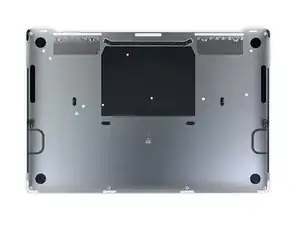

Entferne sechs P5 Pentalobeschrauben, mit denen die Gehäuseunterseite befestigt ist. Sie haben folgende Längen:
-
Vier 3,7 mm Schrauben
-
Zwei 7,3 mm Schrauben
-
-
-

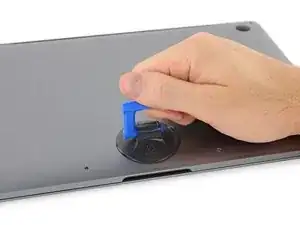

Drücke einen Saugheber nahe an der Vorderkante des unteren Gehäuses zwischen den Schraubenlöchern fest.
-

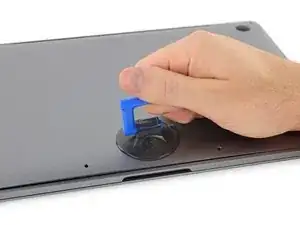

Ziehe den Saugheber soweit hoch, dass ein kleiner Spalt unter der Gehäuseunterseite entsteht.
-
-
-

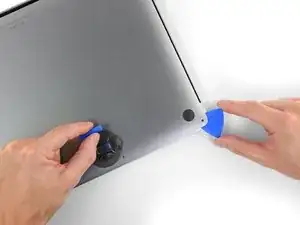

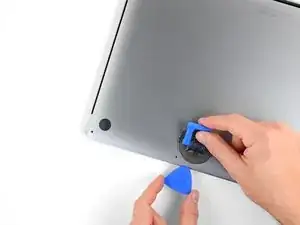

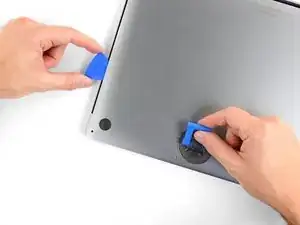

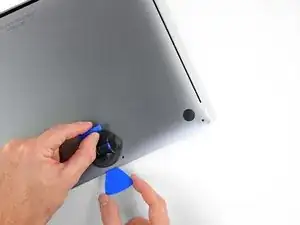

Schiebe die Ecke eines Plektrums in den eben entstandenen Spalt an der Gehäuseunterseite ein.
-

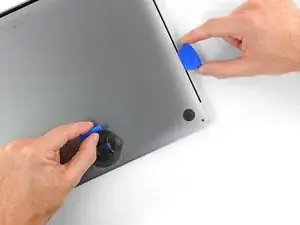

Schiebe das Plektrum um die nächste Ecke herum und dann bis zur Seitenmitte des MacBooks hoch.
-
-
-
Wiederhole den vorherigen Schritt auf der anderen Seite. Nutze ein Plektrum, um die zweite Raste zu lösen.
-
-
-

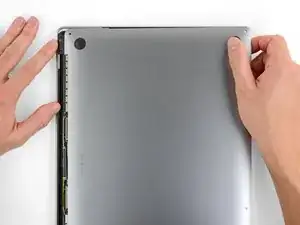

Hebe die Vorderkante der Gehäuseunterseite (also die Kante gegenüber den Scharnieren) soweit an, dass du mit den Fingerspitzen hineingreifen und sie gut fassen kannst.
-
-
-

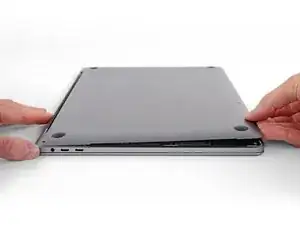

Ziehe die Gehäuseunterseite kräftig zur Vorderkante des MacBooks hin (also weg von den Scharnieren), so dass sich auch die letzte verbliebene Raste öffnet.
-
Ziehe zuerst an einer, dann an der anderen Ecke.
-
-
-

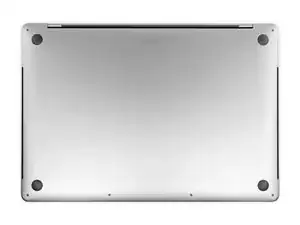

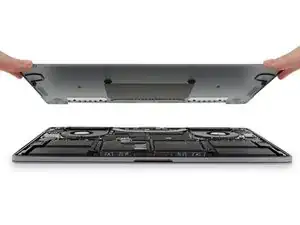

Entferne die Gehäuseunterseite.
-

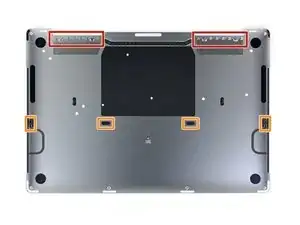

Lege es passend hin und richte die Rasten zum Einschieben nahe an den Displayscharnieren aus. Drücke nach unten und schiebe den Deckel in Richtung der Scharniere. Er sollte nach dem Einrasten anhalten.
-

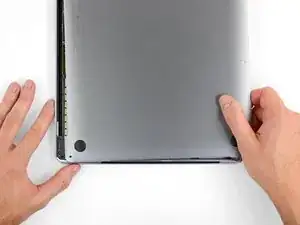

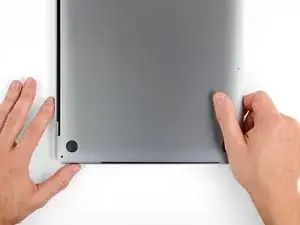

Wenn die Rasten fest sitzen und die Gehäuseunterseite gut ausgerichtet ist, dann drücke die Gehäuseunterseite fest nach unten, bis die vier verborgenen Rasten einschnappen. Du solltest diesen Vorgang hören und fühlen können.
-
-
-

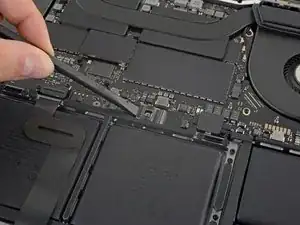

Zur Isolation ist ein Aufkleber über der Akkuplatine an der Kante des Logic Boards direkt beim Akku angebracht. Ziehe ihn ab.
-
Wenn sich der Aufkleber nicht leicht lösen lässt, dann erwärme ihn leicht mit einem iOpener, einem Haartrockner oder einem Heißluftgebläse. Wenn der Kleber weich ist, versuche es erneut.
-
-
-

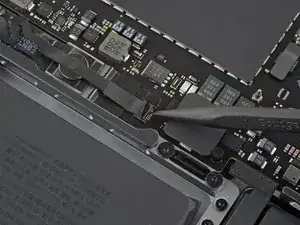

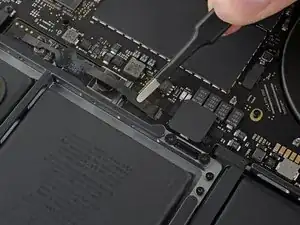

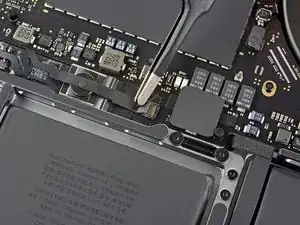

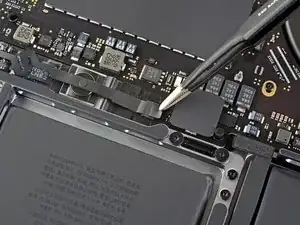

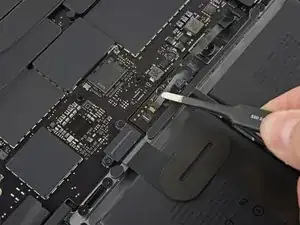

Klappe behutsam den Sicherungsbügel am ZIF-Verbinder des Datenkabels zur Akkuplatine hoch.
-
-
-

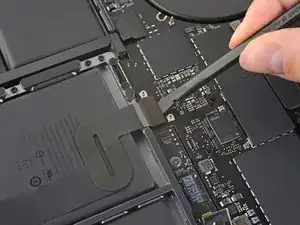

Schiebe das Datenkabel zur Akkuplatine aus dem Anschluss auf dem Logic Board heraus und trenne es ab.
-
-
-

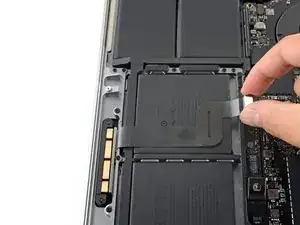

Löse das Klebeband über dem Stecker des Akkuplatinen-Datenkabels ab.
-

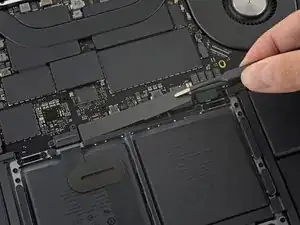

Heble die Sicherungsklappe des Steckers am anderen Ende des Akkuplatinen-Datenkabels hoch und trenne ihn ab.
-
-
-

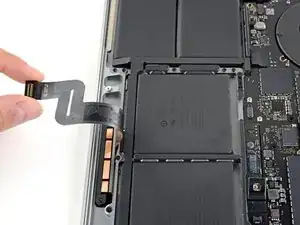

Schiebe das Akkuplatinen-Datenkabel aus seinem Anschluss auf der Akkuplatine heraus und trenne es ab.
-
-
-

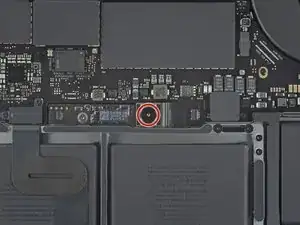

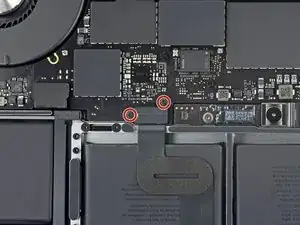

Entferne die beiden 1,8 mm Torx T3 Schrauben, mit denen die Abdeckung der Stecker vom Trackpad- und Tastaturkabel befestigt ist.
-
Entferne die Abdeckung.
-
-
-

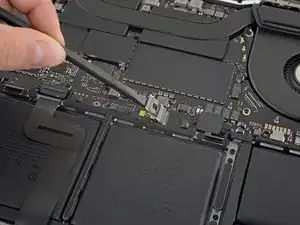

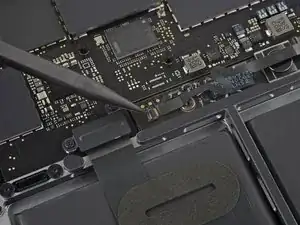

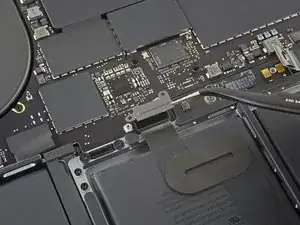

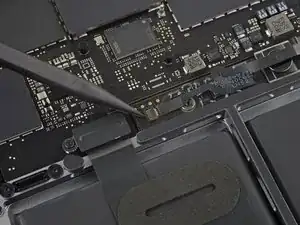

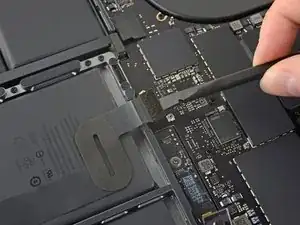

Heble den Trackpadkabelstecker mit dem Spudger senkrecht hoch und trenne ihn vom Logic Board ab.
-
-
-

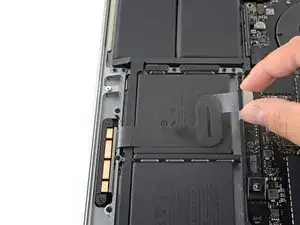

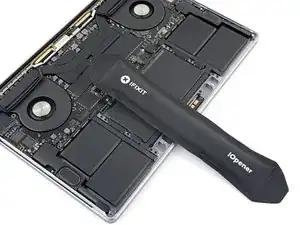

Erwärme das Flachbandkabel zum Trackpad ein wenig, so dass die Klebeverbindung zum Akku aufgeweicht wird.
-
-
-

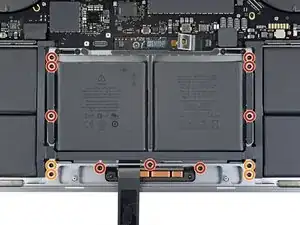

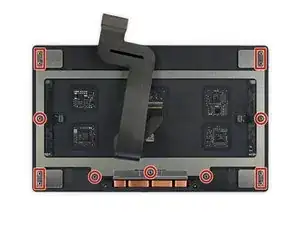

Entferne die dreizehn Torx T5 Schrauben, mit denen die Trackpad-Einheit befestigt ist:
-
Neun 5,8 mm Schrauben
-
Vier 4,9 mm Schrauben
-
-
-

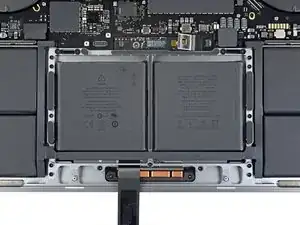

Klappe das Display ein wenig auf, aber lasse das MacBook immer noch umgekehrt liegen. Die Trackpad-Einheit sollte sich lösen und flach auf dem Display aufliegen.
-

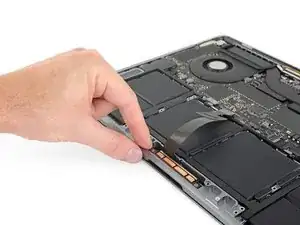

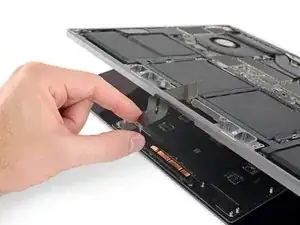

Ziehe das Flachbandkabel des Trackpads vorsichtig durch seinen Schlitz im Rahmen.
-
-
-
Achte beim Entfernen der Trackpad-Einheit darauf, nicht die neun kleinen Metall-Unterlegscheiben auf den Schraubpfosten zu verlieren. (Sie können leicht abfallen und verloren gehen.)
-

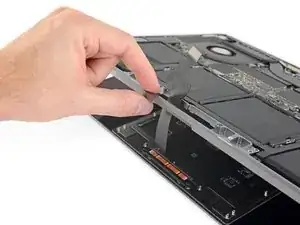

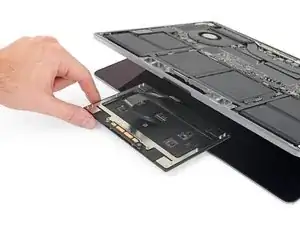

Entferne die Trackpad-Einheit.
-

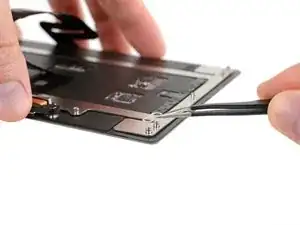

Vergleiche dein Ersatzteil mit dem Originalteil, eventuell musst du Komponenten übertragen oder Schutzfolien vom Neuteil abziehen, bevor du es einbauen kannst.
Um dein Gerät wieder zusammenzubauen, folge diesen Schritten in umgekehrter Reihenfolge.
Entsorge deinen Elektromüll fachgerecht.
