MacBook Pro 17" Unibody Clutch Cover Replacement

Geschrieben von: Brett Hartt
  • Kommentare: 2
MacBook Pro 17" Unibody Clutch Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

2

Zeitaufwand

Keine Schätzung

Einleitung

  1. 6bJ3JDHKPCaPQ54r
    6bJ3JDHKPCaPQ54r
    4hQWlunhAkhGcuhG

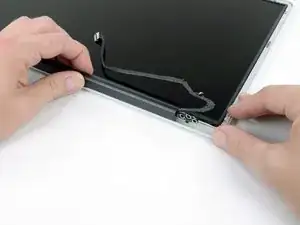

    • Holding the clutch cover firmly, slide it towards the right display hinge.

    • The clutch cover will move approximately 1 cm to the right. Do not force it pass this point.

  2. SrPkJce33kIYr1Tu
    SrPkJce33kIYr1Tu
    LBnNnd6stTIQOvdP

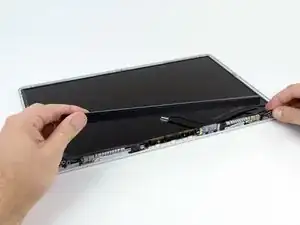

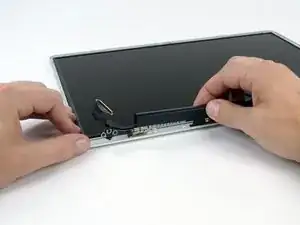

    • Lifting the left edge of the clutch cover, gently rock it back and forth on its long axis while pulling it away from the display.

    • Remove the clutch cover from the display, minding any cables that may get caught.

    How the he'll do I get it back on?

    liam Carroll -

    How the he'll do you get the cover back on?

    liam Carroll -

Abschluss

To reassemble your device, follow these instructions in reverse order.
