Removing a white Unibody MacBook disk drive and RAM.

  1. QJHCA6MhSdHtkQlB
    QJHCA6MhSdHtkQlB
    DXGWQMHDNB52nJFH
    XAgPB1UbTrDBBvAO

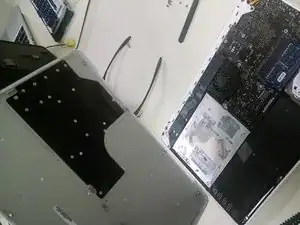

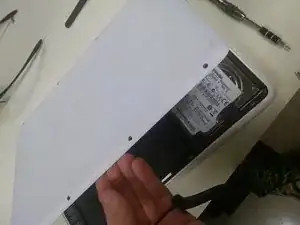

    • Remove the six Phillips head screws with J00 bit.

  2. aTFRuYMte2wUiGZI
    aTFRuYMte2wUiGZI
    4HDxGhffAjgCaqm6
    UGZ3h5OpvJtooXu6

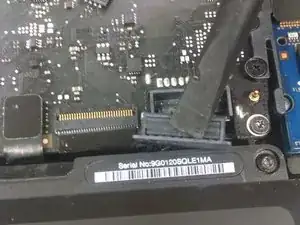

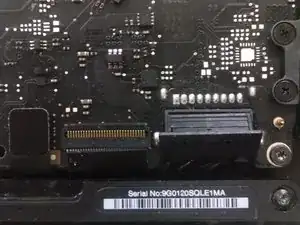

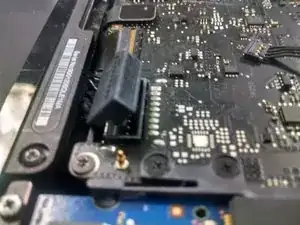

    • Then Unplug the battery using a ESD Safe prying tool.

  3. SLoOmFQYRI2y24xw
    SLoOmFQYRI2y24xw
    JsuqIwABjlM4a4OI
    UiTkRCEKKf2BNO2t

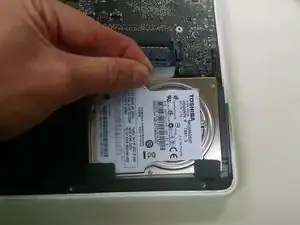

    • Once battery is unplugged, remove two Philips head screws using J00 bit.

  4. QCNNr4xCvqRSDEuh
    QCNNr4xCvqRSDEuh
    ceFrtVqXPpQ1n5d3
    YbyNpxLDFxgtIyns

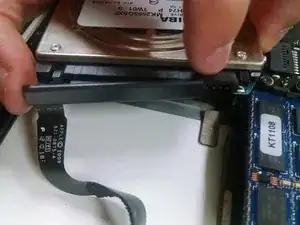

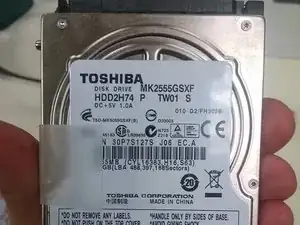

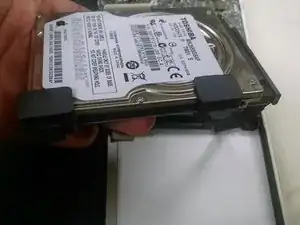

    • After removing the screws and plastic cover piece, remove the hard drive then unplug from Logic Board.

  5. FEtHmmB2UckGgg6y
    FEtHmmB2UckGgg6y
    FTqZBLFrDYbUFyWl
    GvM2yEGgPS5qAvJO

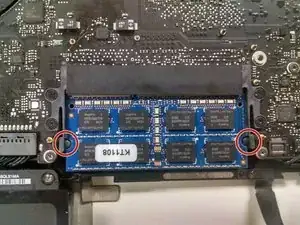

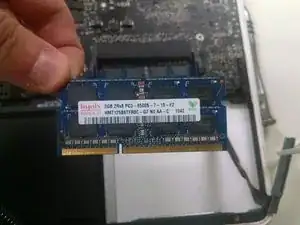

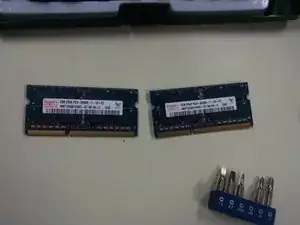

    • Locate the RAM Directly above the Hard Drive. Gently push the two snaps away from the RAM cards and gently pull the ram out. You Will do this step again to remove the Second card beneath the first.

Abschluss

To reassemble your device, follow these instructions in reverse order.
