This guide shows the removal of the Logic board. Straightforward with no hidden or proprietary screws.

  1. Cr1emPnFisCME14E
    Cr1emPnFisCME14E
    NFRvuWVaxB2wTFAq
    VMKxHZIn5hbPNf2U
    • Here is one of the vintage computers in my possession. It is a Macintosh Classic II M4150. Apple considers this obsolete and " information about these products is no longer updated as of 9/1/98 "

    • On powering it up, It originally greeted me with a checkerboard pattern that quickly converted into this pattern. The checkerboard pattern is/was commonly caused by bad Ram memory. Considering the age of this computer, leaking capacitors are a strong possibility. Time to check.

    • This computer contains a CRT. That means there are some high voltages involved when working on this. Use proper CRT safety while working on it.

    • The cover is held in place by four (4) T-15 screws. Two (2) on the bottom

  2. fHMTAJVjdsDT1p5j
    fHMTAJVjdsDT1p5j
    pPWKnAYiRSqZGkHc
    QnBnU2fnHIZmKg1x
    • and two (2) under the top (handle)

    • The bottom ones are easy to remove

    • The top ones are a bit of a challenge due to the depth of the holes.

  3. ONYwUeHLuHHX2YKP
    ONYwUeHLuHHX2YKP
    EmEYf2Qa5sSlJxnU
    ZupvB2HNro6EZEwS
    • There was just not enough room to get a good grip on the driver.

    • Luckily this iFixit driver has a hole on the top part. I used a tool to gain some mechanical advantage. While applying downward pressure on the driver, turn the tool to the left to loosen the screw

    • Once loosened, the iFixit extension that came with my set, works perfectly to remove the screw,

  4. AcVfsIc2bwploA3H
    AcVfsIc2bwploA3H
    4IIYuOXqfElaPFxY
    Wtk5okuOu6FKTCi2
    • Here are the four (4) screws. The two bottom screws are M4X15mm The top screws are those typical found in plastic to sheet metal joints.

    • With the screws removed the cover will slide off.

    • BEst practice is to lay it down and pull the case straight up. It may take some force due to the tight fit and years of storage etc.

  5. 3DIaC6auhseJYUmZ
    3DIaC6auhseJYUmZ
    aKnTbDLhAwfgl3DC
    oog2rYAQjkpOIq6J
    • Here is what the inside looks like.

    • Remember the High Voltage. Do not touch anything with bare hands etc. Right now it's look but don't touch

    • Power supply (Sweep Board)

    • Flyback Transformer

    • Video card

    • CRT

    • SCSI Hard drive

    • Hard drive on top with the Floppy drive on the bottom

  6. NG1tkW1AW1dx5oLh
    NG1tkW1AW1dx5oLh
    nXHiXV1IOWDY311X
    jWDGUt5TAB6oHdsx

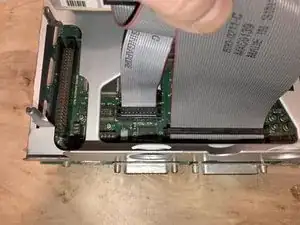

    • If your Classic II has the memory expansion board installed, it will be in this slot. It will need to be removed.

    • Next is the 50 pin SCSI HDD cable. These cables feel heavier and are more rigid than the IDE cables used in 90's

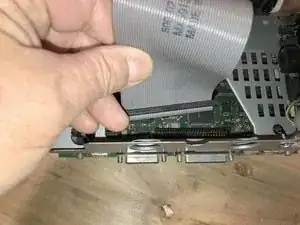

    • Pull the cable straight up. It may require some force, but there are no locks etc. to be removed. Just pull.

  7. 3atPxJq43JVFcLse
    3atPxJq43JVFcLse
    4MccrOPiLDwlGJAu
    O2nOrEv5BGhAufDj

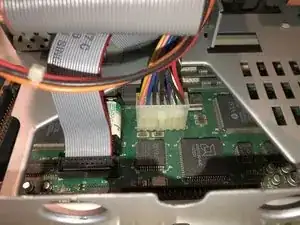

    • Next is the logic board power cable.

    • Pressing on the plastic tab will release the lock. Pull the cable up to remove it

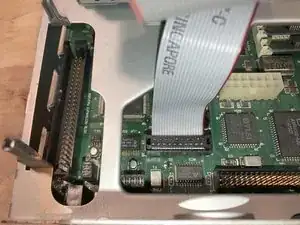

    • Here is the Floppy drive cable. Red stripe always connects to pin one (1) on the connector

  8. m2yxFApBZcu6WEBQ
    m2yxFApBZcu6WEBQ
    oBhlRksuCWaerYQj
    B1FphB2XtJt3RRtU

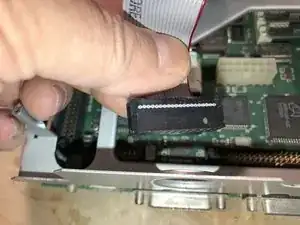

    • Just pull the cable out of its connector. No locks on this one either.

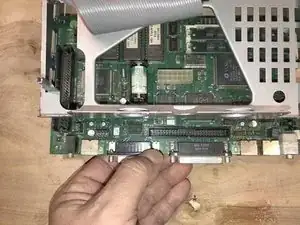

    • Next grasp the logic board by its edge and pull it out of the chassis

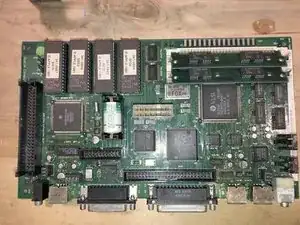

    • Here is the complete logic board. Battery and RAM modules clearly visible. Luckily no leaky battery. The board has some dust and shows some contamination. Overall it is in good condition for an almost 30 year old piece of electronics.

Abschluss

To reassemble your device, follow these instructions in reverse order.
