Macintosh IIsi Hard Drive Replacement

Geschrieben von: Chris Green
  • Kommentare: 3
Macintosh IIsi Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 - 15 Minuten

Einleitung

The Macintosh IIsi Uses a 50-Pin SCSI Drive, that doesn't need to be terminated while in single configuration.

  1. r1Cft2VV1RGPfyL4
    r1Cft2VV1RGPfyL4
    KKeUmPgMYaLdaiGt

    • Start by turning the computer around, and remove this #0 Phillips Screw.

    • There may or may not be a Phillips #0 screw here, depending on whether or not the computer has ever been serviced.

  2. DkSfMxh4aHLiqFXJ
    DkSfMxh4aHLiqFXJ
    PkSg1D2OL5ANuCOP
    NRNA5eL3FkOPxxln

    • Now lift these two clips, and slowly pivot the case up.

    • You can now seperate the top of the computer from the rest of the machine.

  3. 6jQ2GQ3WVi1eoess
    6jQ2GQ3WVi1eoess
    BOxZvNo5GIndG2XA
    BObAajFgQKpuQTHP

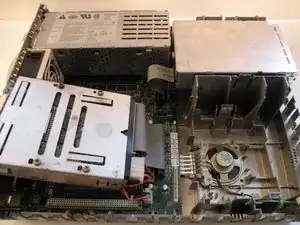

    • The Macintosh IIsi's hard drive is located ajacent to the ram and floppy drive.

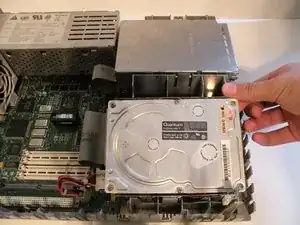

    • Start by pushing these two tabs out, and lifting the drive up.

    • Then, flip the drive over, and remove the connection cables.

  4. ZvutJDQpxROL4nO3
    ZvutJDQpxROL4nO3
    imYG2jVW1MdH6Hpi
    KhqZD4A5Z3CLtAgr

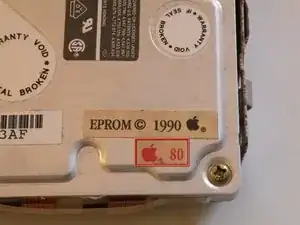

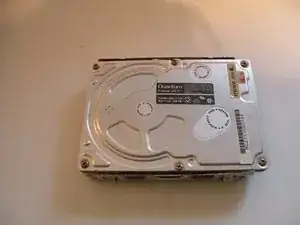

    • The hard drive: A Quantum ProDrive LPS, made in 1990, and surprisingly, it still works!

    • This drive has an 80MB capacity, not very large by today's standards, but not bad way back then...

    • Believe it or not, hard drive construction hasn't changed much in the last 20 years. Other than a few new interfaces, the form factor, 3.5" width and 4-Pin 12V/5V power connector has stayed the same.

    How can a read that SCSI HDD today if the computer does not boot? Any way to connect externally to a PC?

    Charles -

Abschluss

To reassemble your device, follow these instructions in reverse order.
