The Macintosh IIsi uses 4 30-Pin RAM SIMMs, installed in pairs of two for a maximum capacity of 65MB (4X16MB + 1MB). It has 1MB of RAM soldered to the logic board.

  1. r1Cft2VV1RGPfyL4
    r1Cft2VV1RGPfyL4
    KKeUmPgMYaLdaiGt
    • Start by turning the computer around, and remove this #0 Phillips Screw.

    • There may or may not be a Phillips #0 screw here, depending on whether or not the computer has ever been serviced.

  2. DkSfMxh4aHLiqFXJ
    DkSfMxh4aHLiqFXJ
    PkSg1D2OL5ANuCOP
    NRNA5eL3FkOPxxln
    • Now lift these two clips, and slowly pivot the case up.

    • You can now seperate the top of the computer from the rest of the machine.

  3. 5hAjgV5WPGHNyPjB
    5hAjgV5WPGHNyPjB
    lIvVnRedMupNGEiS
    2NOTijyTohqq1j4n
    • The IIsi uses 4 30-Pin SIMMs (Installed in pairs of 2) for a maximum ram capacity of 65MB. It has 1MB soldered to the logic board as well.

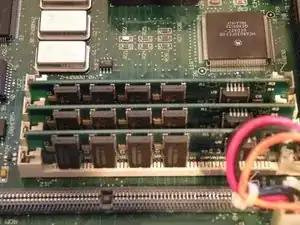

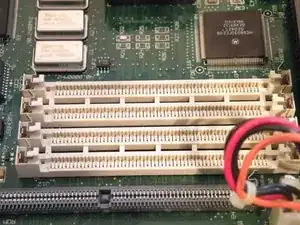

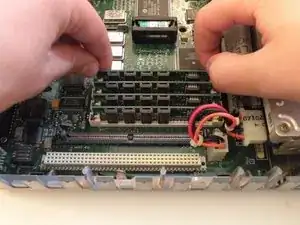

    • Start with this SIMM. Push these 2 metal tabs outward, then push the ram forward. It can then be lifted out. You have to remove the SIMMs in order, starting with the one you just removed. You can then work your way through all of them.

  4. gSZuR24BYp5loblO
    gSZuR24BYp5loblO
    yAE43asQDMAPPTiY
    XrXdfYprpJNGI4SX

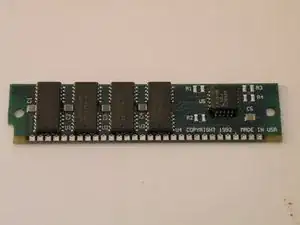

    • 1st Photo: The RAM Module

Abschluss

To reassemble your device, follow these instructions in reverse order.
