Einleitung
Use this guide to replace or upgrade your floppy drive.
Werkzeuge
-
-
Orient the computer so the battery is facing you.
-
Slide the gray plastic battery cover to the right.
-
-
-
Orient the computer right side up with the rear facing you.
-
Open the Input/Output (I/O) door.
-
-
-
Carefully bend the door into an arch until one of the pins releases from its slot.
-
Once one of the pins is free, remove the I/O door from the computer.
-
-
-
Orient the computer with the bottom facing up and rear facing you. You should be able to read the Macintosh label in this position.
-
-
-
Use a T8 torx screwdriver to remove the 6.8mm long screw above and to the right of the modem jack.
-
Twist counter clockwise to remove the screw.
-
-
-
Place your hands on the lower case, just above the I/O panel, and slowly lift the lower case a few inches above the main body of the computer.
-

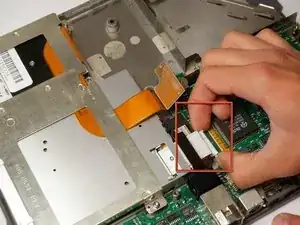

Release the large, gray interconnect ribbon cable just behind the I/O panel.
-
-
-
Place your thumb on the upper case, inside the empty battery slot, and your index finger near your thumb on the left side of the lower case.
-
Pinch your thumb and index finger towards each other to release the clip. Without releasing pressure on the pinch grip, use your index finger to push the lower case upwards.
-

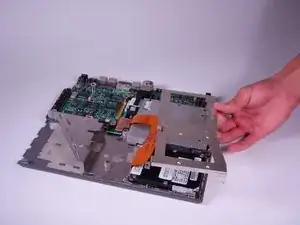

Lift the lower case to remove it.
-
-
-
Locate the Modem Card on the lower case.
-
Use a T8 torx screwdriver to remove the two, 7.7mm long screws from the two corners.
-
-
-
Lift the modem card directly upward until it releases from the connector.
-
If the modem card is difficult to remove, gently jostle it back and forth as you lift up.
-
-
-
Locate and lift ram card directly up until connector releases.
-
Move the card back and forth gently if the connector does not release immediately.
-
-
-
Locate and lift the PSRAM expansion card vertically until connector releases.
-
If the PSRAM expansion card is difficult to remove, gently jostle it back and forth as you lift up.
-
-
-

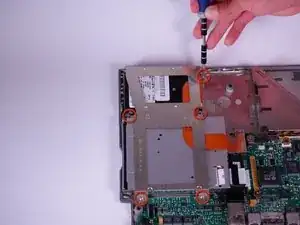

Use T8 torx screwdriver to remove four, 7.7mm long screws from the perimeter of the daughterboard.
-
-
-
Life the daughterboard directly up to remove it from the connector.
-
If the daughterboard does not easily release from the connector, gently jostle it back and forth as you lift up.
-
-
-

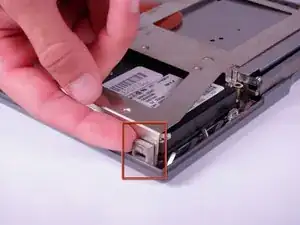

Orient the computer so the plastic clip in top left corner of the lower case is facing you. Release the clip by lifting the retainer. You may need to adjust the hard drive to remove the retainer.
-

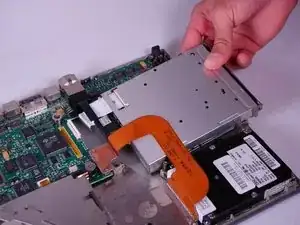

Lift the drive retainer out.
-
-
-
Open the white lock out tab to the right of the floppy drive.
-

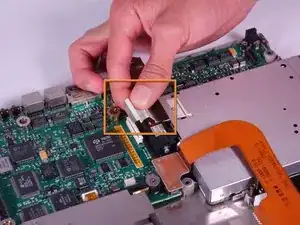

Remove the white floppy drive ribbon cable by gently pulling it away from the opened tab fastener.
-
To reassemble your device, follow these instructions in reverse order.
