Einleitung

This guide will show you how to replace the Motherboard.

  1. ZivJRCCViBrndXnp
    • Orient the computer so the battery is facing you.

    • Slide the gray plastic battery cover to the right.

  2. UfUtCLe1FBBBfqUD
    • Pull the battery toward yourself until it is fully detached.

  3. uU1FFIyQqNEnJHZA
    • Orient the computer right side up with the rear facing you.

    • Open the Input/Output (I/O) door.

  4. S2sTWMxxa5I6wPQP
    • Carefully bend the door into an arch until one of the pins releases from its slot.

    • Once one of the pins is free, remove the I/O door from the computer.

  5. QlaSFYpAUSkOUBI1
    • Orient the computer with the bottom facing up and rear facing you. You should be able to read the Macintosh label in this position.

  6. XfcjOuLvFVIOaoMr
    • Use a T8 torx screwdriver to remove the 6.8mm long screw above and to the right of the modem jack.

    • Twist counter clockwise to remove the screw.

  7. MJfWKHsfjZAMxKDj
    • Use a T10 torx screwdriver to remove the four, 18mm long screws from the lower case.

  8. isOqxbmrYJDIeR2V
    isOqxbmrYJDIeR2V
    NbhNkPCCYrk1dJPi
    • Place your hands on the lower case, just above the I/O panel, and slowly lift the lower case a few inches above the main body of the computer.

    • Release the large, gray interconnect ribbon cable just behind the I/O panel.

    • Caution: Lower case cannot be fully removed until two plastic clips in the front corners are released. See the following step for details.

  9. GVZhXrtWpQ1Or2aR
    GVZhXrtWpQ1Or2aR
    wKgXyLf3RZp6DUcd
    • Place your thumb on the upper case, inside the empty battery slot, and your index finger near your thumb on the left side of the lower case.

    • Pinch your thumb and index finger towards each other to release the clip. Without releasing pressure on the pinch grip, use your index finger to push the lower case upwards.

    • Lift the lower case to remove it.

  10. QeKvLZXPkxDCJJ6t
    • Orient the computer so the ports are facing you.

  11. 6OP1GctBih4fvyHi
    6OP1GctBih4fvyHi
    xO4pHPkgP41HBwNT
    • Locate the Modem Card on the lower case.

    • Use a T8 torx screwdriver to remove the two, 7.7mm long screws from the two corners.

    • The modem card is an optional component on the Macintosh 165c, and may not be included in all devices.

  12. qLIoNFTDNA2mFutn
    • Lift the modem card directly upward until it releases from the connector.

    • If the modem card is difficult to remove, gently jostle it back and forth as you lift up.

  13. 2UgB1QRhOUMXxEQO
    2UgB1QRhOUMXxEQO
    xhZfl1JJGi2qgcTC
    • Locate and lift ram card directly up until connector releases.

    • Move the card back and forth gently if the connector does not release immediately.

  14. 2sXq56NoWKjYS11X
    2sXq56NoWKjYS11X
    Ou1CGkPdFSxfAMu5
    • Locate and lift the PSRAM expansion card vertically until connector releases.

    • If the PSRAM expansion card is difficult to remove, gently jostle it back and forth as you lift up.

    • The PSRAM expansion card is an optional component, and may not be included in all devices.

  15. 3oHOxhIwR5yQeuJb
    • Use T8 torx screwdriver to remove four, 7.7mm long screws from the perimeter of the daughterboard.

  16. KcIuA2WfeqVYwklM
    • Life the daughterboard directly up to remove it from the connector.

    • If the daughterboard does not easily release from the connector, gently jostle it back and forth as you lift up.

  17. sONakXJYkouDFDgw

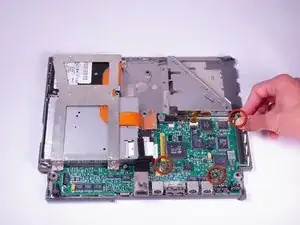

    • Remove the three cylindrical silver spacers placed on top of the motherboard.

  18. CNNZfByFIHSyBjyA
    CNNZfByFIHSyBjyA
    jL2KXsJBOjOihLgr

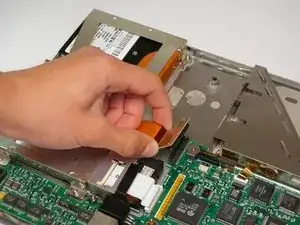

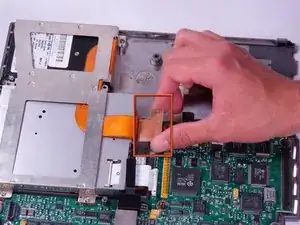

    • Lift up on the orange connector attached to the hard drive until it releases from the motherboard.

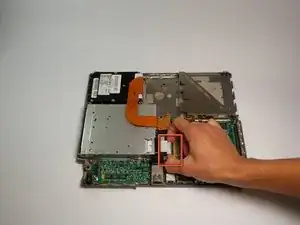

  19. 3ypfMcdsbRrApOFC
    3ypfMcdsbRrApOFC
    JZnKpirLKavqNRRJ

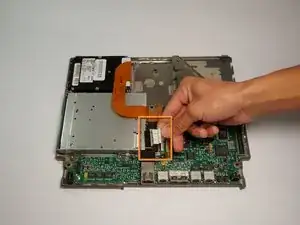

    • Open the white tab fastener by lifting up on both sides.

    • Remove the white ribbon cable by gently pulling it away from the opened tab fastener.

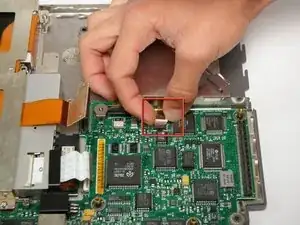

  20. VOkdkxOACSqvyJLa
    VOkdkxOACSqvyJLa
    NJT21IhZl1b5PPvo

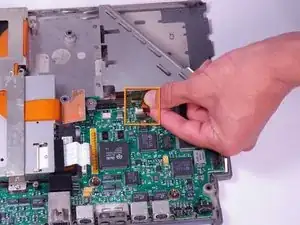

    • Open the white lock out tab located at the top of the motherboard.

    • Remove the black and orange ribbon cable by gently pulling it away from the opened tab fastener.

  21. kDAuV6bPGW5AF6j1
    kDAuV6bPGW5AF6j1
    tFL5TB1VfjRdfibU

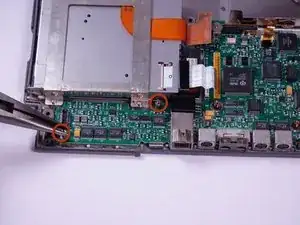

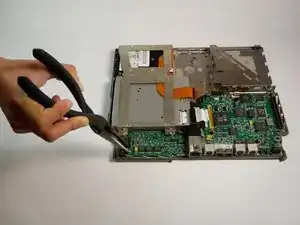

    • Use needle nose pliers to remove the two, 5mm inch wide and 10.8mm long hex bolts from the lower left side of the motherboard.

    • To remove bolts with pliers, twist counter clockwise.

  22. dDUffNYZkiW3CBBJ

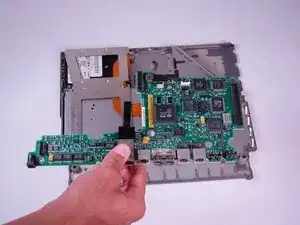

    • Lift up on the motherboard to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
