Use guide to replace a worn or broken track ball assembly.

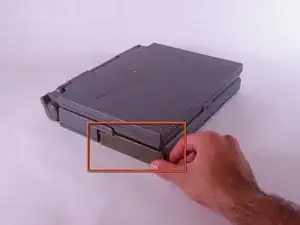

  1. ZivJRCCViBrndXnp
    • Orient the computer so the battery is facing you.

    • Slide the gray plastic battery cover to the right.

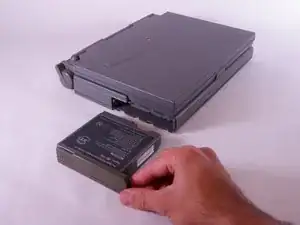

  2. UfUtCLe1FBBBfqUD
    • Pull the battery toward yourself until it is fully detached.

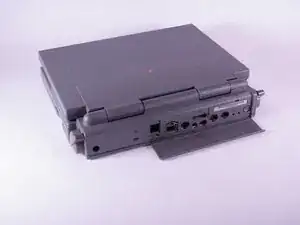

  3. uU1FFIyQqNEnJHZA
    • Orient the computer right side up with the rear facing you.

    • Open the Input/Output (I/O) door.

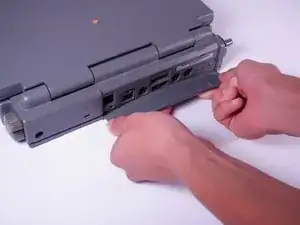

  4. S2sTWMxxa5I6wPQP
    • Carefully bend the door into an arch until one of the pins releases from its slot.

    • Once one of the pins is free, remove the I/O door from the computer.

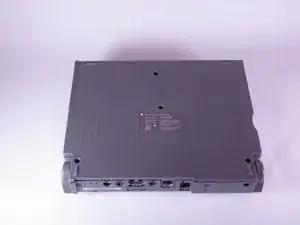

  5. QlaSFYpAUSkOUBI1
    • Orient the computer with the bottom facing up and rear facing you. You should be able to read the Macintosh label in this position.

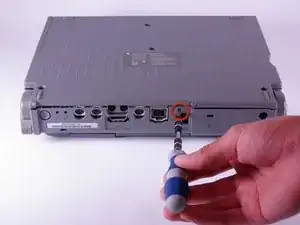

  6. XfcjOuLvFVIOaoMr
    • Use a T8 torx screwdriver to remove the 6.8mm long screw above and to the right of the modem jack.

    • Twist counter clockwise to remove the screw.

  7. MJfWKHsfjZAMxKDj
    • Use a T10 torx screwdriver to remove the four, 18mm long screws from the lower case.

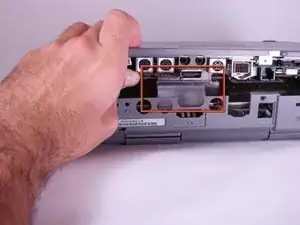

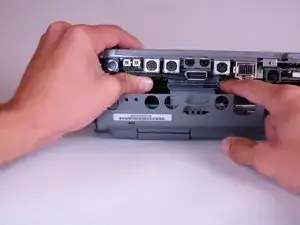

  8. isOqxbmrYJDIeR2V
    isOqxbmrYJDIeR2V
    NbhNkPCCYrk1dJPi
    • Place your hands on the lower case, just above the I/O panel, and slowly lift the lower case a few inches above the main body of the computer.

    • Release the large, gray interconnect ribbon cable just behind the I/O panel.

    • Caution: Lower case cannot be fully removed until two plastic clips in the front corners are released. See the following step for details.

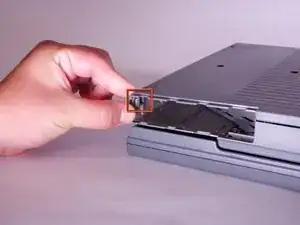

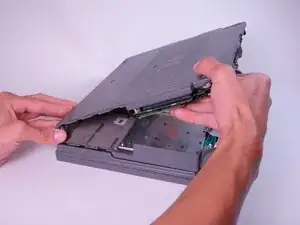

  9. GVZhXrtWpQ1Or2aR
    GVZhXrtWpQ1Or2aR
    wKgXyLf3RZp6DUcd
    • Place your thumb on the upper case, inside the empty battery slot, and your index finger near your thumb on the left side of the lower case.

    • Pinch your thumb and index finger towards each other to release the clip. Without releasing pressure on the pinch grip, use your index finger to push the lower case upwards.

    • Lift the lower case to remove it.

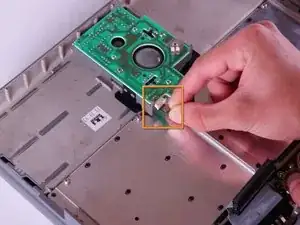

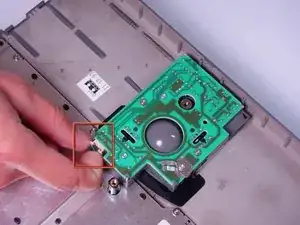

  10. EQMGLJw3EQl3HdT1
    EQMGLJw3EQl3HdT1
    SrnHbbgGARZbsj3Q
    • Locate the trackball assembly. It is in the upper case and can be identified by a green circuit board.

    • Open the white tab fastener by pulling out on each side. and remove the green and silver ribbon cable.

    • Remove the green and silver ribbon cable by gently pulling it away from the opened tab fastener.

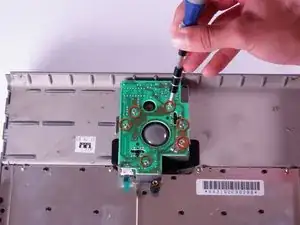

  11. uVf62oBDbLHDYgnO
    • Use a T8 torx screwdriver to remove the six, 6.8mm long screws from the top of the green circuit board.

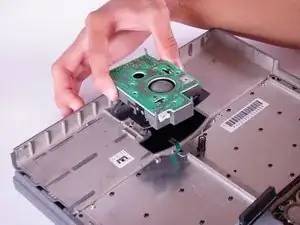

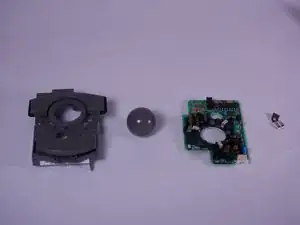

  12. q1SdoHiTZEN1U2Ij
    • Remove all four components of the trackball assembly by lifting upward.

    • The four components of the trackball assembly should include: the green circuit board, a metal support, the track ball, and the casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
