Mad Catz Dual Force 2 Pro Analog Joystick Covers Replacement

Geschrieben von: Alexander Coyne
  • Kommentare: 0
Mad Catz Dual Force 2 Pro Analog Joystick Covers Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

Please remember that these controllers are not designed to be repaired so do not be surprised if you need to be rough with it or something was not initially installed correctly. Also, the same kind of screw was used throughout the controller.

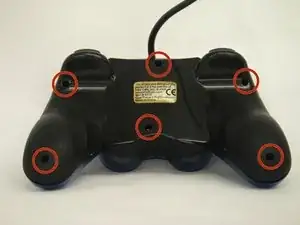

  1. LdVghrbh2ml2yb6f

    • Remove the six 7 mm Phillips screws from the rear cover.

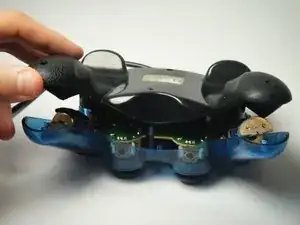

  2. duGFg5nvglnFlkOu

    • Remove the back of the controller.

    • There are no loose items in the controller that can fall out, so you can open it, generally, however you want.

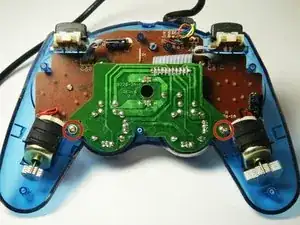

  3. HR3MiJ1x4Bhq5QkM

    • Remove the two 7 mm screws on the closest circuit board.

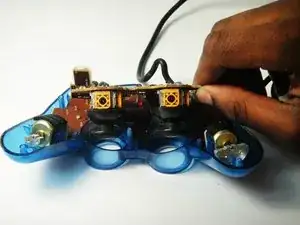

  4. eSdTwBVRufnmuIUL
    eSdTwBVRufnmuIUL

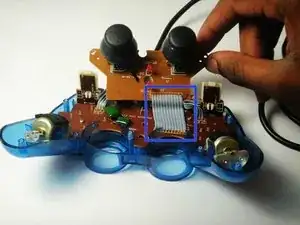

    XewUPRNHkmYEYBF2

    • Lift the closest circuit board away from the motherboard.

    • Be sure you do not tear the ribbon connecting the smaller circuit board to the motherboard.

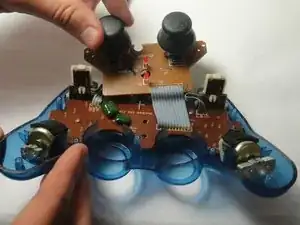

  5. eNsuwHBZaDKGG3Uc

    • Grip the analog stick you wish to remove and the smaller circuit board or the cover.

    • Pull the analog stick from the smaller circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
